Exhaust Manifold

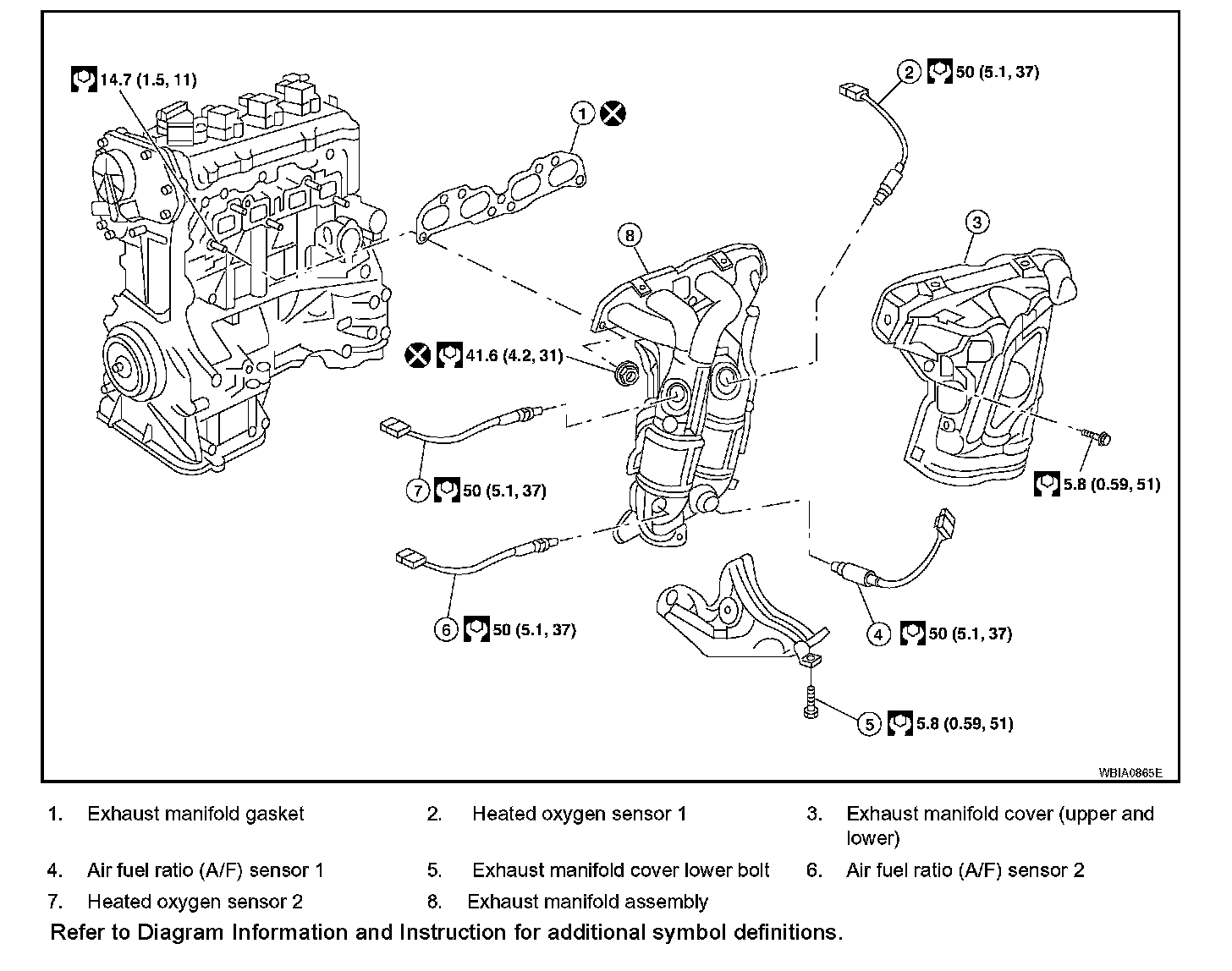

Exploded View EM-136:

Exhaust Manifold
Tightening Exhaust Manifold Nuts





Tighten the nuts in the numerical order shown, to specification. After tightening No.5, retighten No.1 and then No.3 to specification.
