Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.5L (QR25DE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> Gear Components >> RS6F52H

RS6F52H

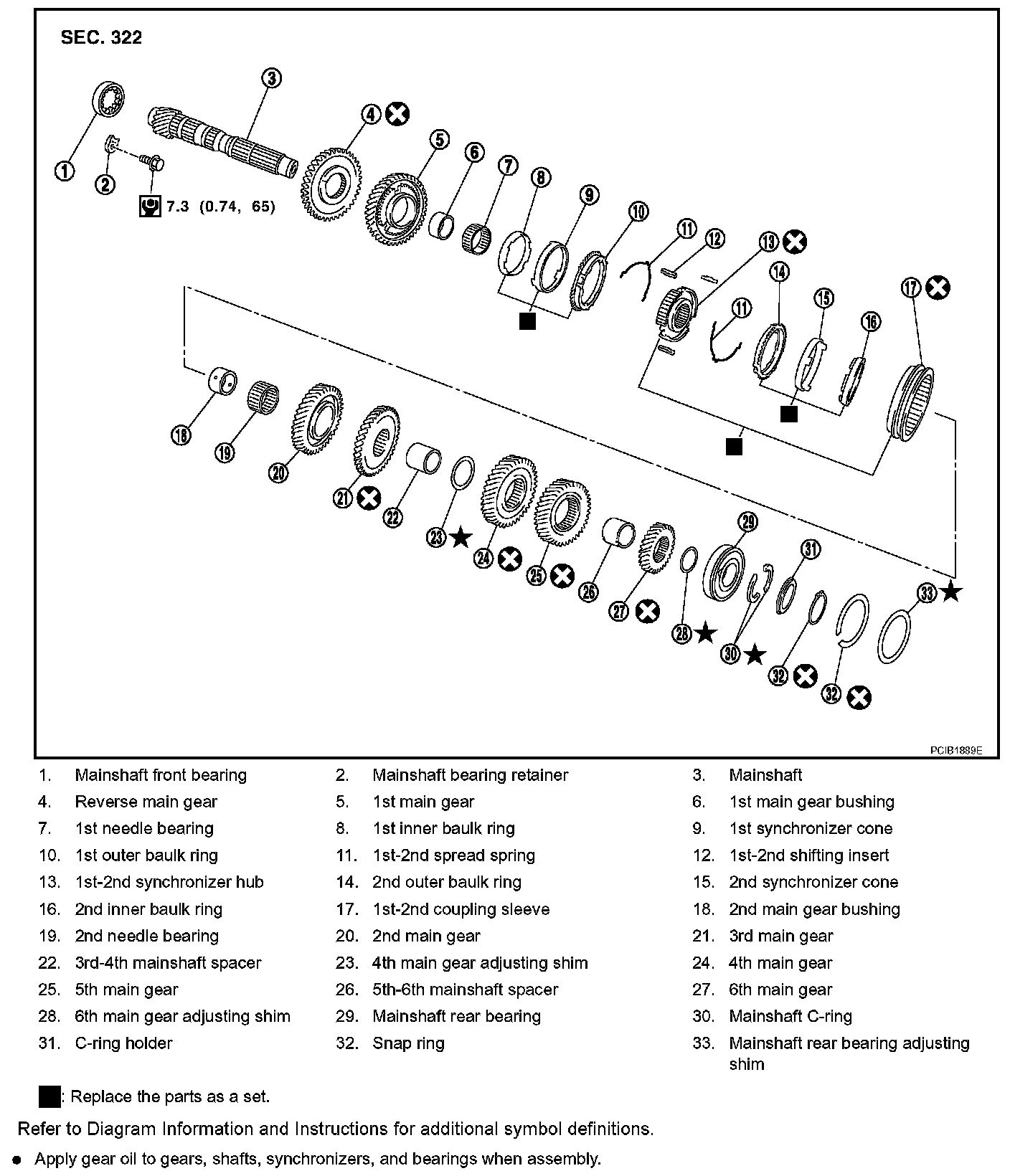

Exploded View MT-145 (Part 1):

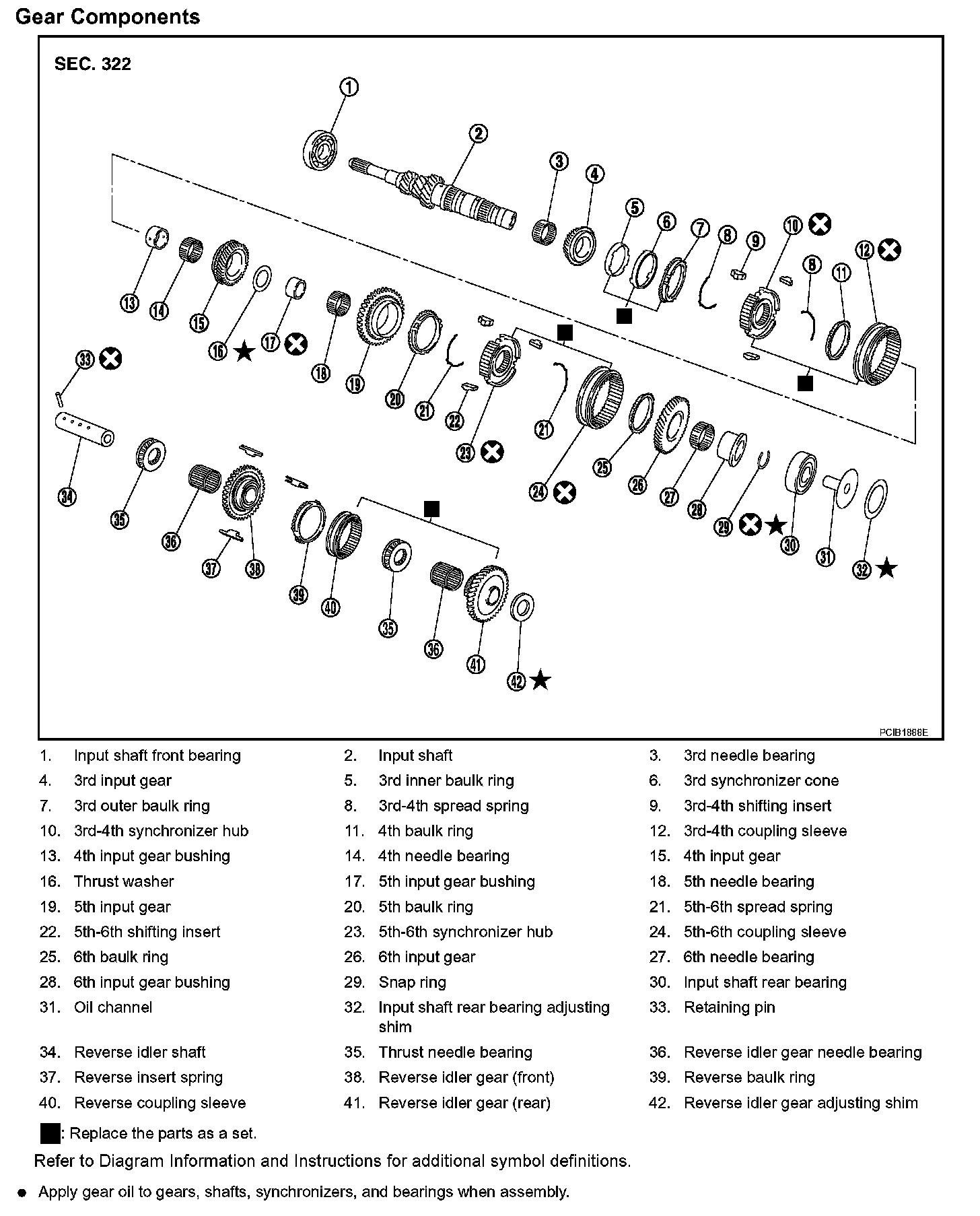

Exploded View MT-145 (Part 2):
