Steering Gear

Steering Gear (R24K)

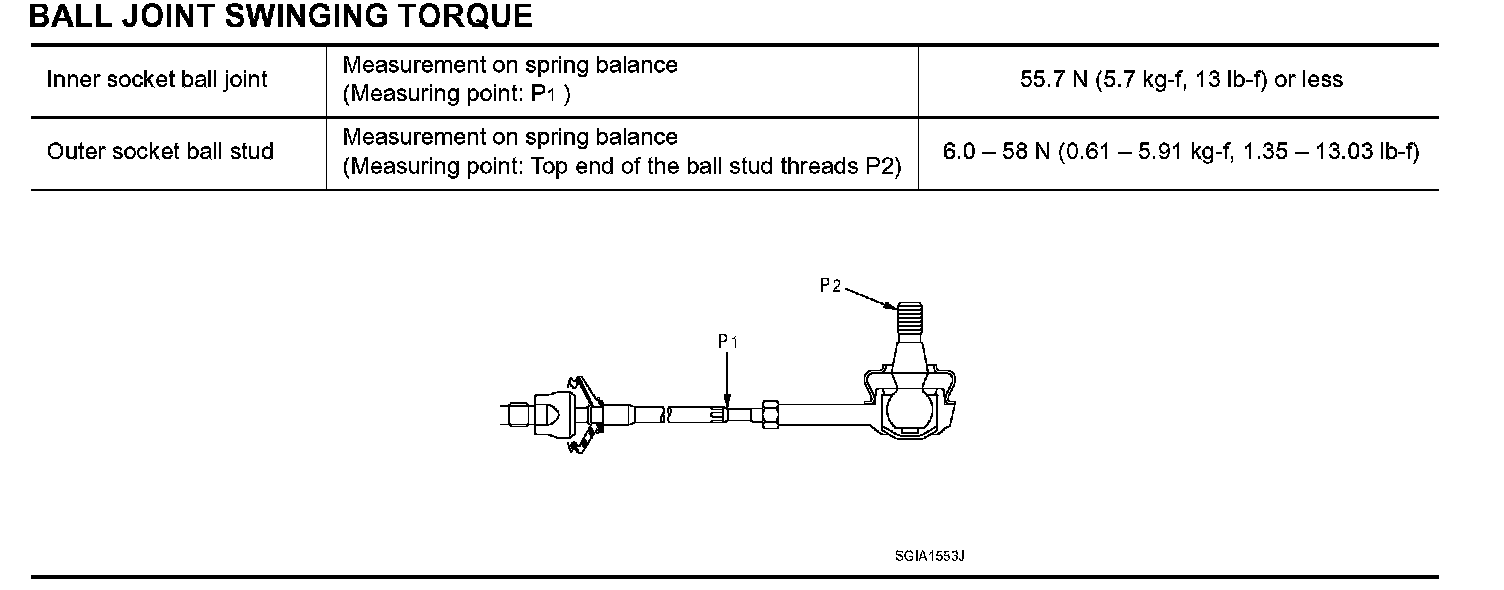

BALL JOINT SWINGING TORQUE

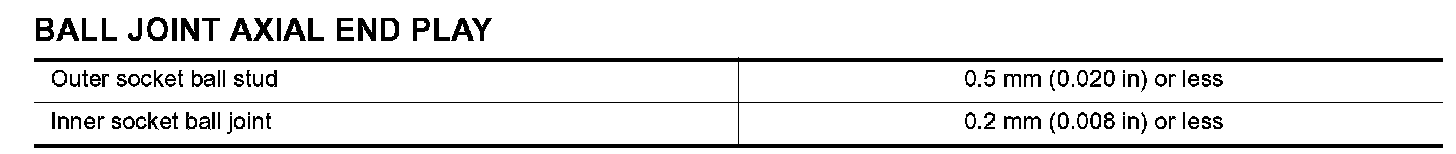

BALL JOINT AXIAL END PLAY

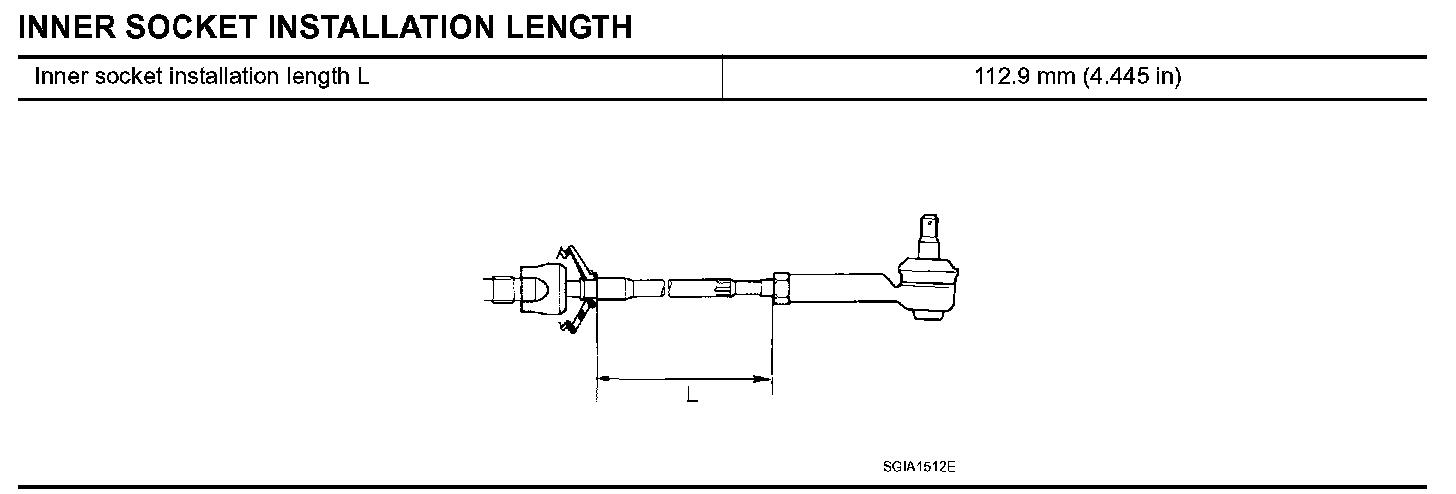

INNER SOCKET INSTALLATION LENGTH

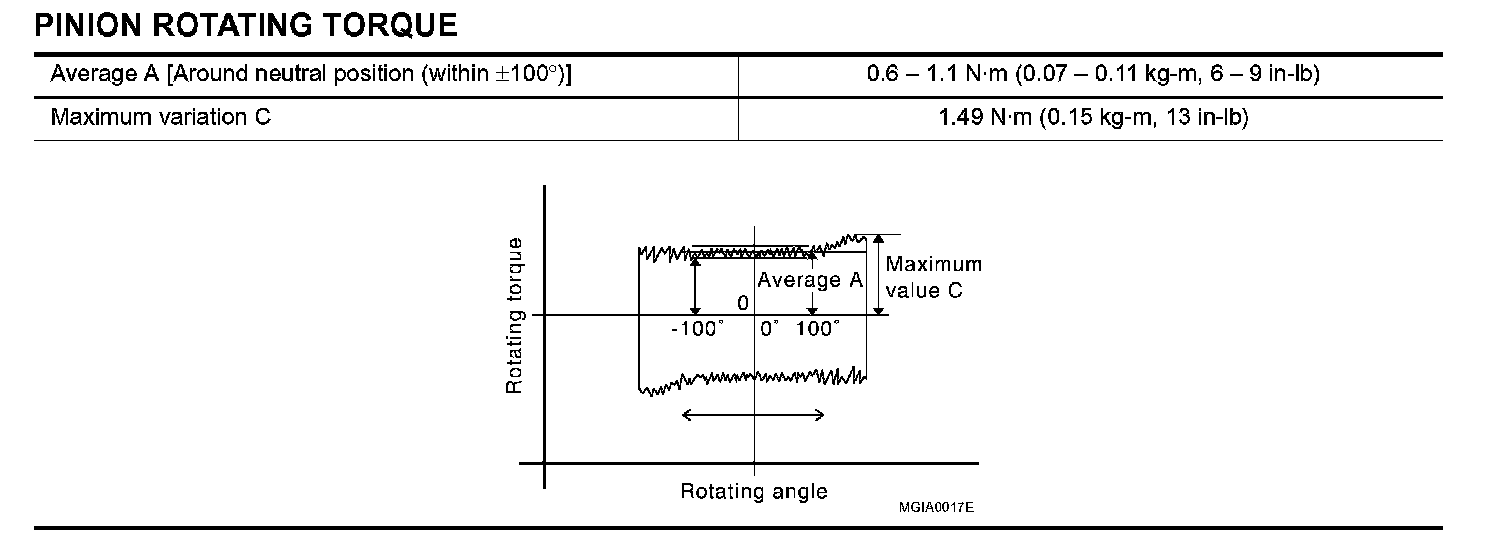

PINION ROTATING TORQUE

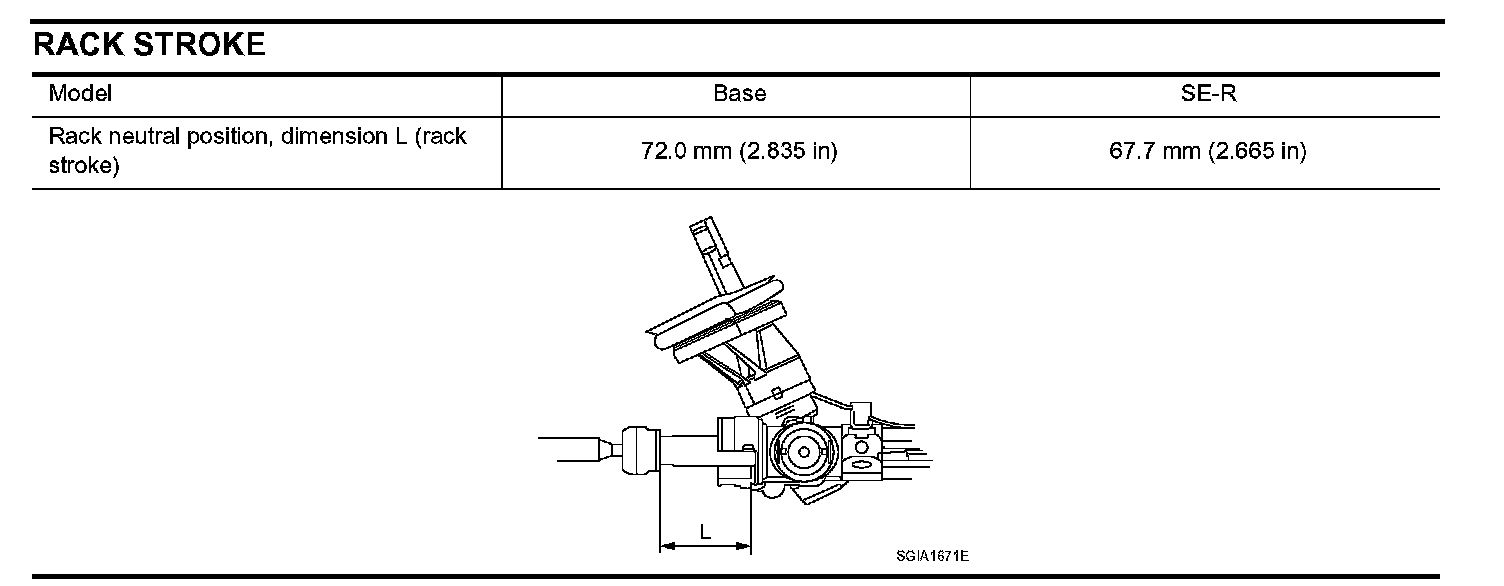

RACK STROKE
