Operation CHARM: Car repair manuals for everyone.

Continuously Variable Transmission/Transaxle, CVT

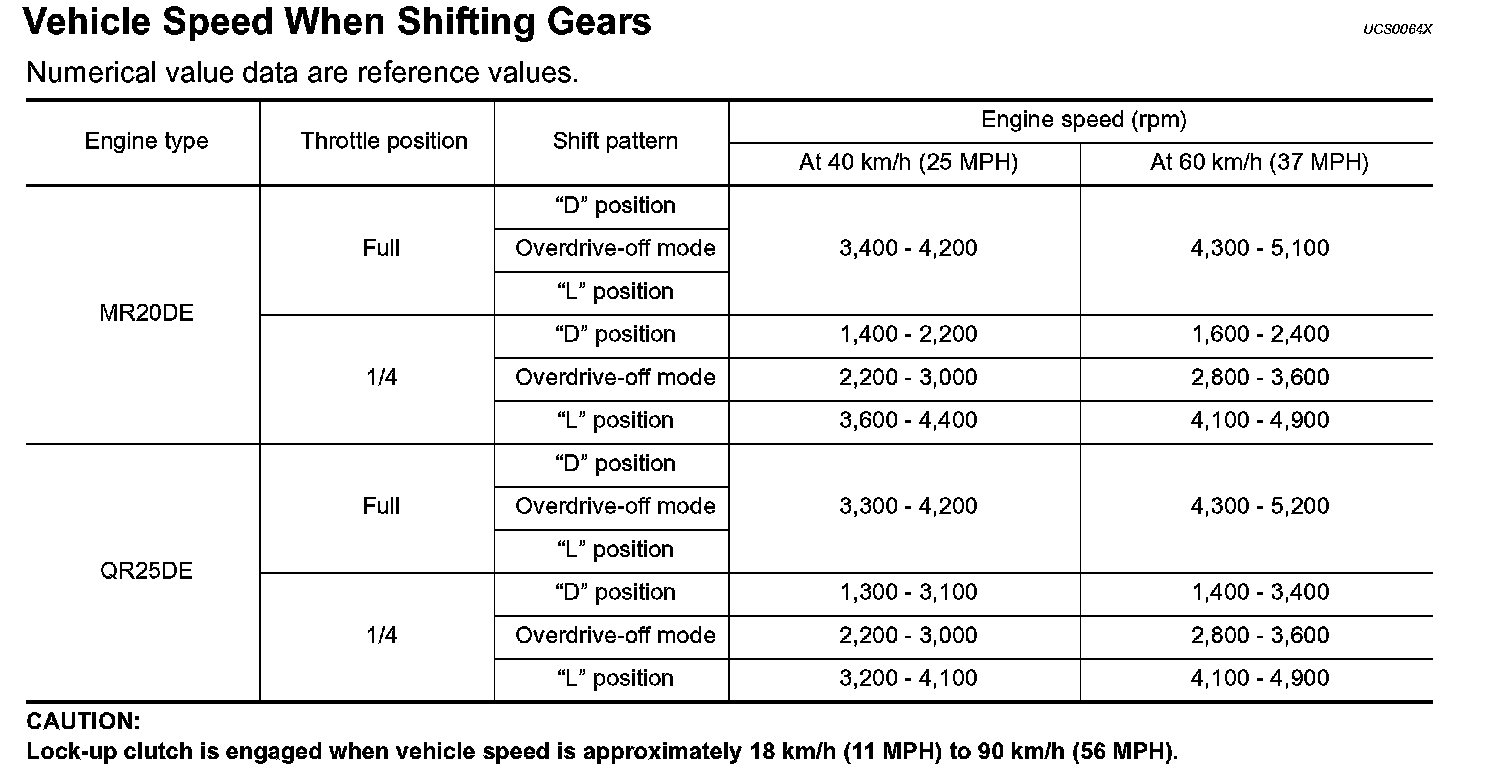

Vehicle Speed When Shifting Gears

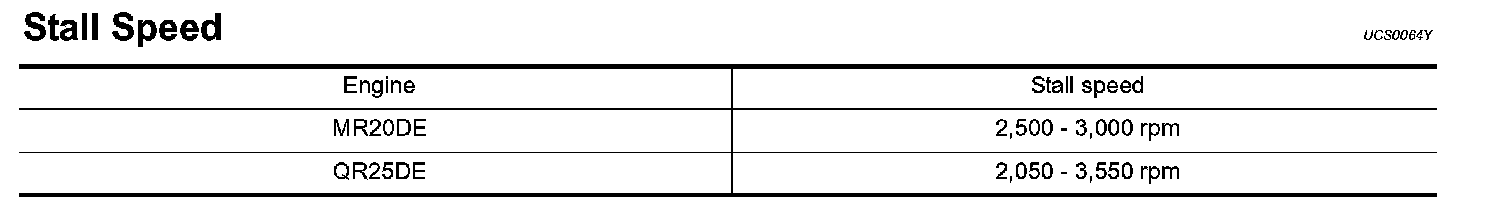

Stall Speed

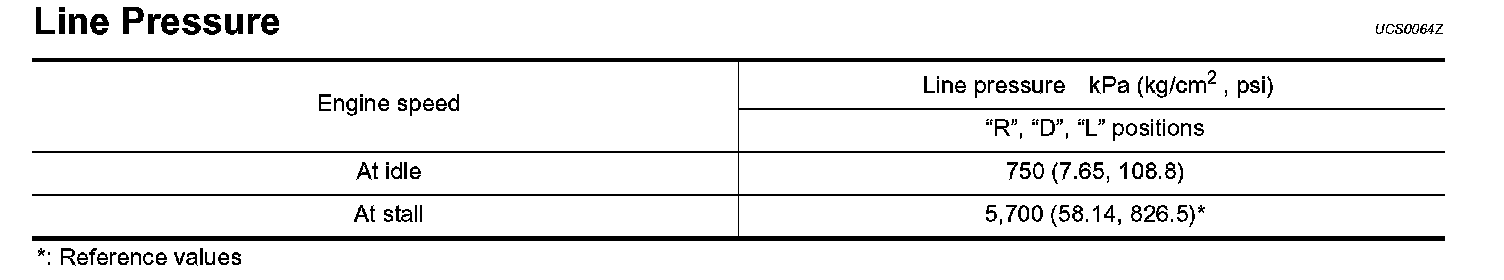

Line Pressure

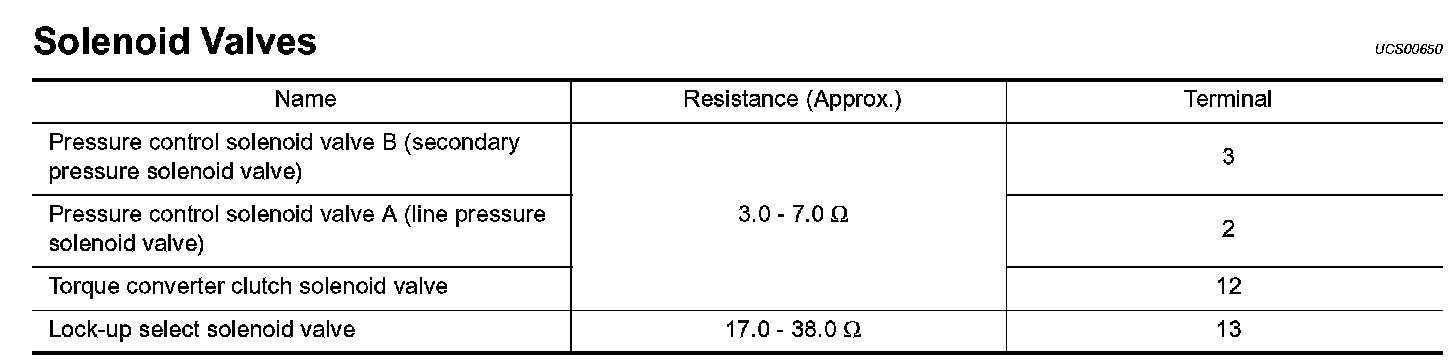

Solenoid Valves

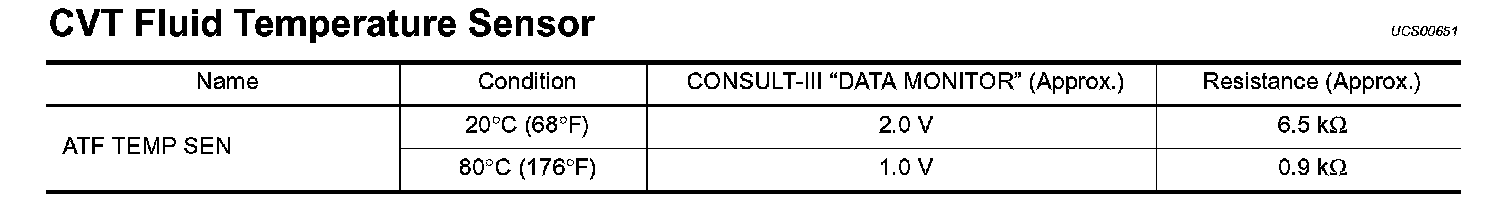

CVT Fluid Temperature Sensor

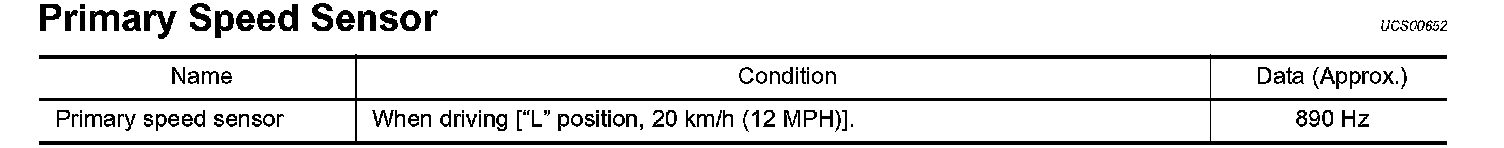

Primary Speed Sensor

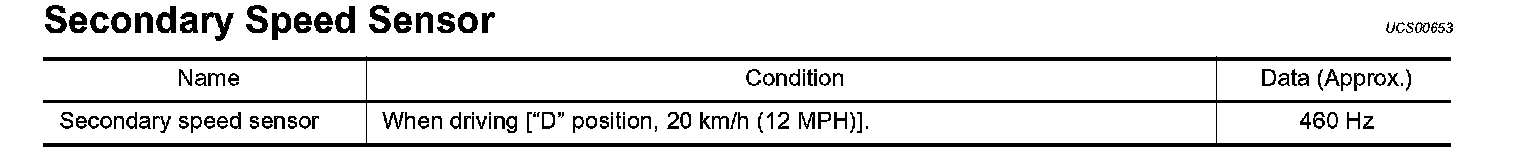

Secondary Speed Sensor
