Starter Motor: Service and Repair

STARTING SYSTEM

Image Symbols:

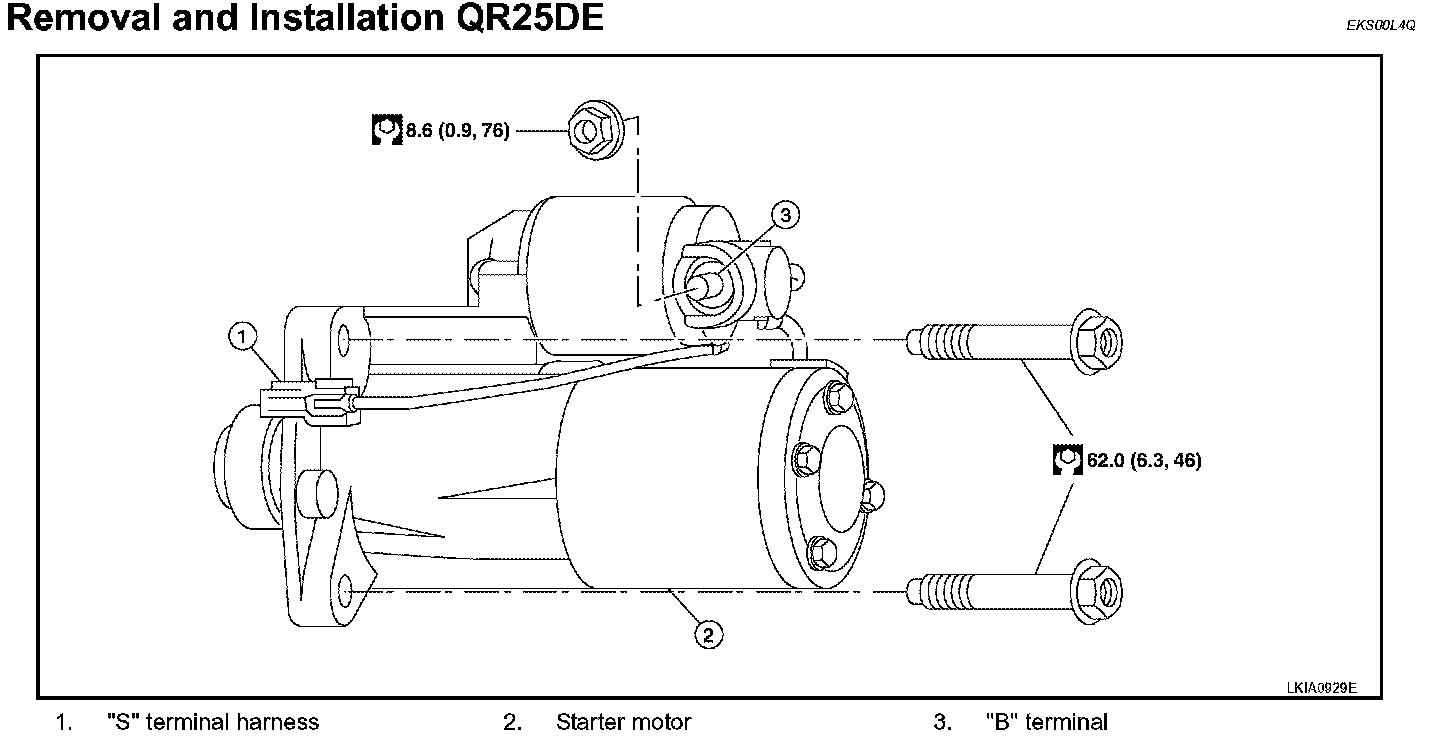

Removal and Installation

REMOVAL
1. Disconnect the battery negative terminal.
2. Raise vehicle.
3. Remove "S" terminal connector.
4. Remove "B" terminal nut.
5. Remove starter motor bolts.
6. Remove starter motor.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION: Be sure to tighten "B" terminal nut carefully.
