Front Fender: Service and Repair

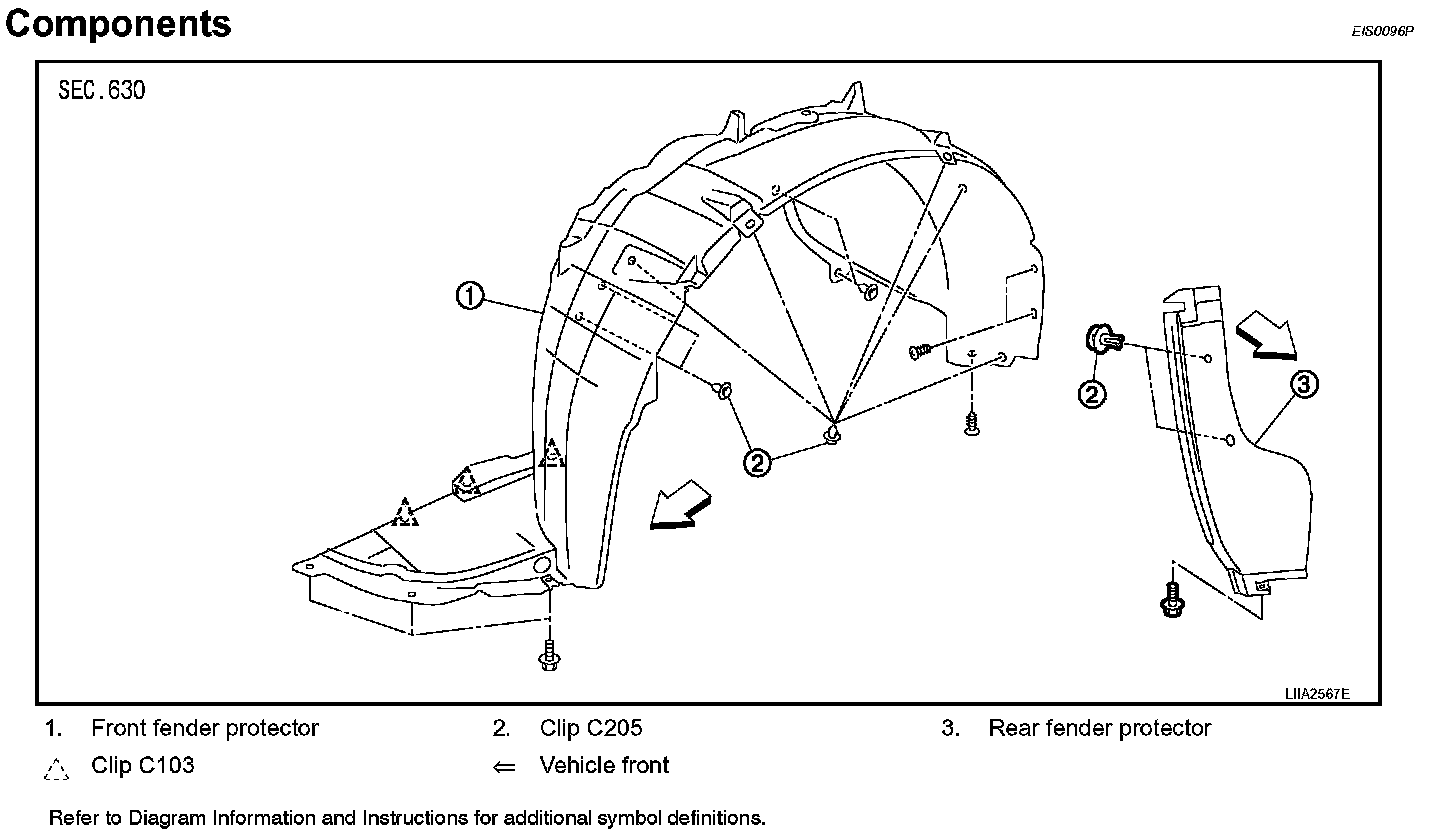

Exploded View EI-22:

Components

FRONT FENDER

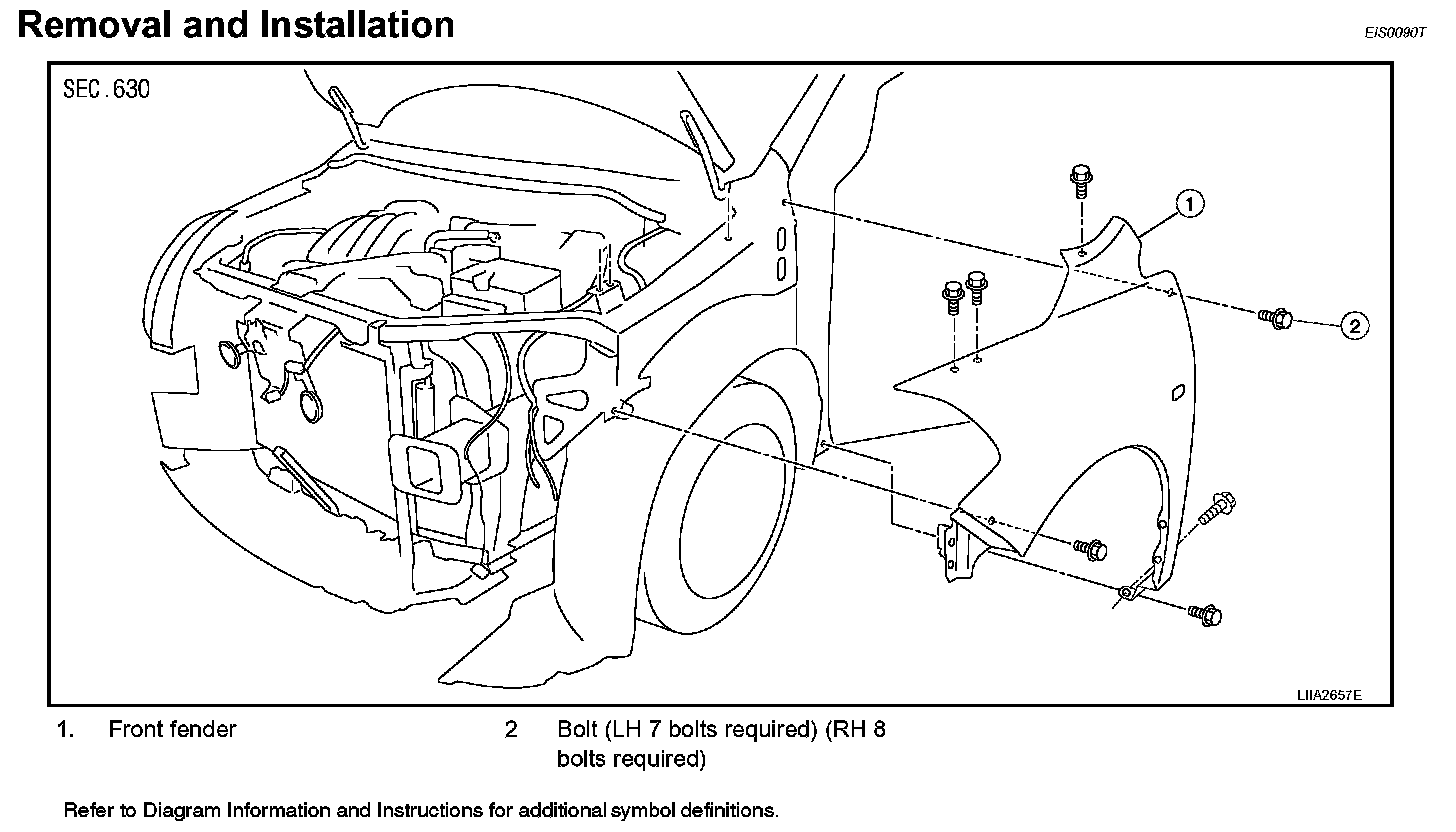

Exploded View BL-22:

Removal and Installation

REMOVAL
1. Remove the headlamp assemblies.
2. Remove the cowl top cover (LH/RH).
3. Remove the front fender protector. Refer to Exploded View EI-22.
4. Remove the bolt and the front fender.

CAUTION: While removing use a shop cloth to protect the vehicle body from damage.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION:
- After installing, apply touch-up paint onto the head of the front fender bolts.
- After installing, check front fender adjustment. Refer to Fitting Adjustment".
