Fuse Block-Junction Box (J/B)
Fuse Block-Junction Box (J/B)

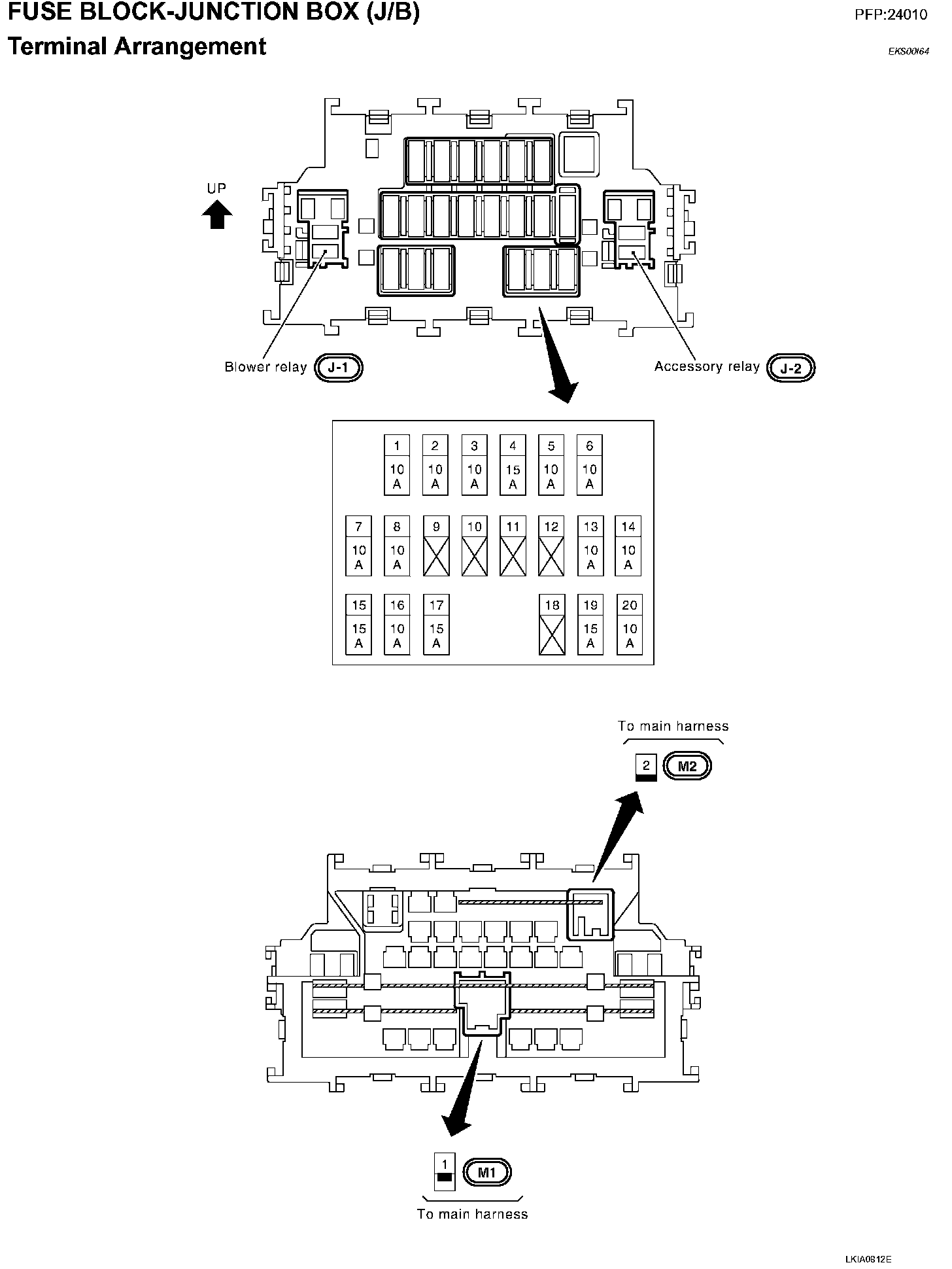

Fuse Block-Junction Box (J/B) - Terminal Arrangement:
