Body Control Module: Service and Repair

Removal and Installation of BCM




REMOVAL
1. Remove the glove box. Refer to "GLOVE BOX ASSEMBLY".

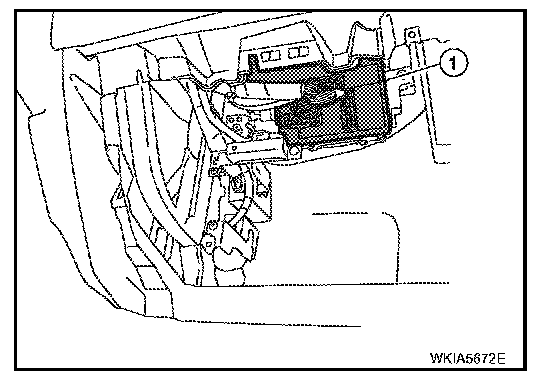

2. Remove the BCM screws, disconnect the connectors and remove the BCM.

INSTALLATION
Installation is in the reverse order of removal.

NOTE:
- When replacing BCM, it must be configured. Refer to BCS-19, "Configuration". Testing and Inspection
- When replacing BCM, perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to BL-212, "NATS (Nissan Anti-Theft System)". Anti-Theft System
- When replacing BCM, if new BCM does not come with keyfobs attached, all existing keyfobs must be reregistered.
