CAN System Specification Chart

CAN System Specification Chart

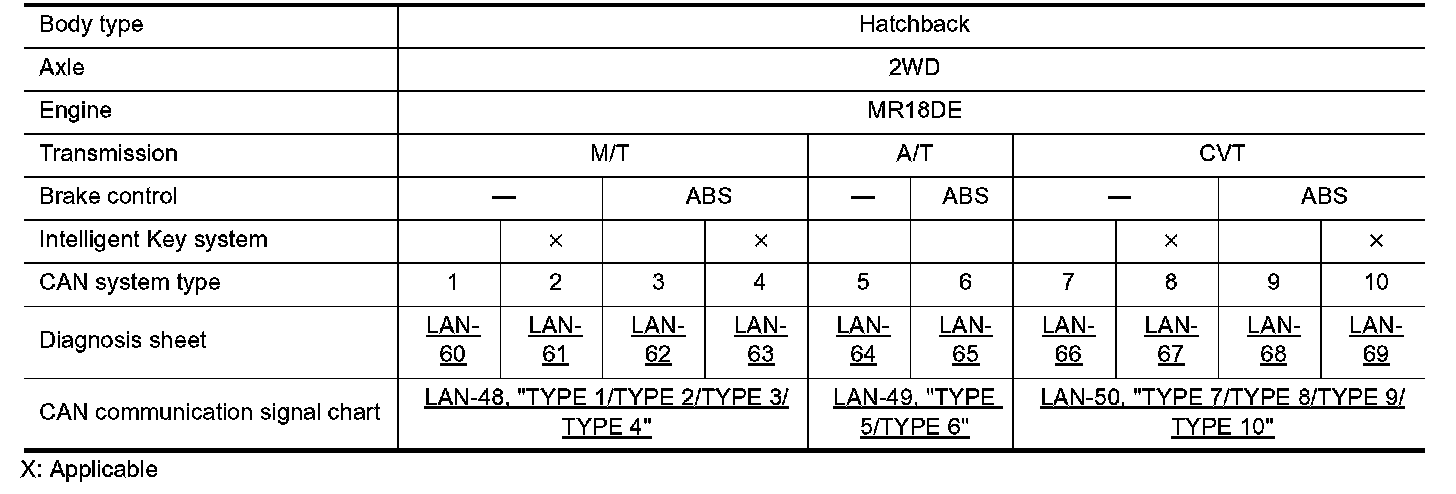

Check CAN system type from the following specification chart. Then choose the correct diagnosis sheet.

NOTE: Refer to "CHECK OF CAN SYSTEM TYPE (HOW TO USE CAN SYSTEM TYPE SPECIFICATION CHART)" for how to use CAN system specification chart. Introduction

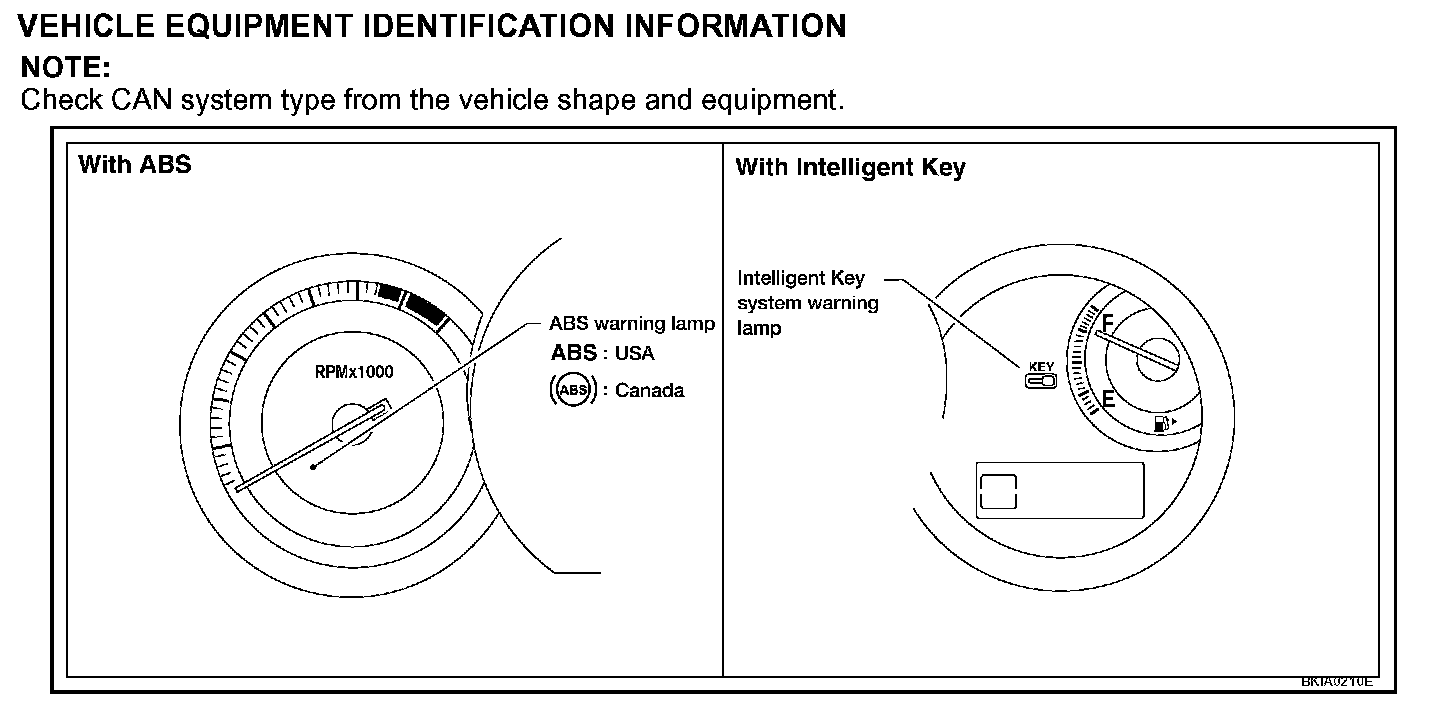

VEHICLE EQUIPMENT IDENTIFICATION INFORMATION
