Scan Tool Testing and Procedures

TROUBLE DIAGNOSIS

CAN Diagnostic Support Monitor
Use "CAN DIAG SUPPORT MNTR" for detecting the root cause.

MONITOR ITEM LIST (CONSULT-II)

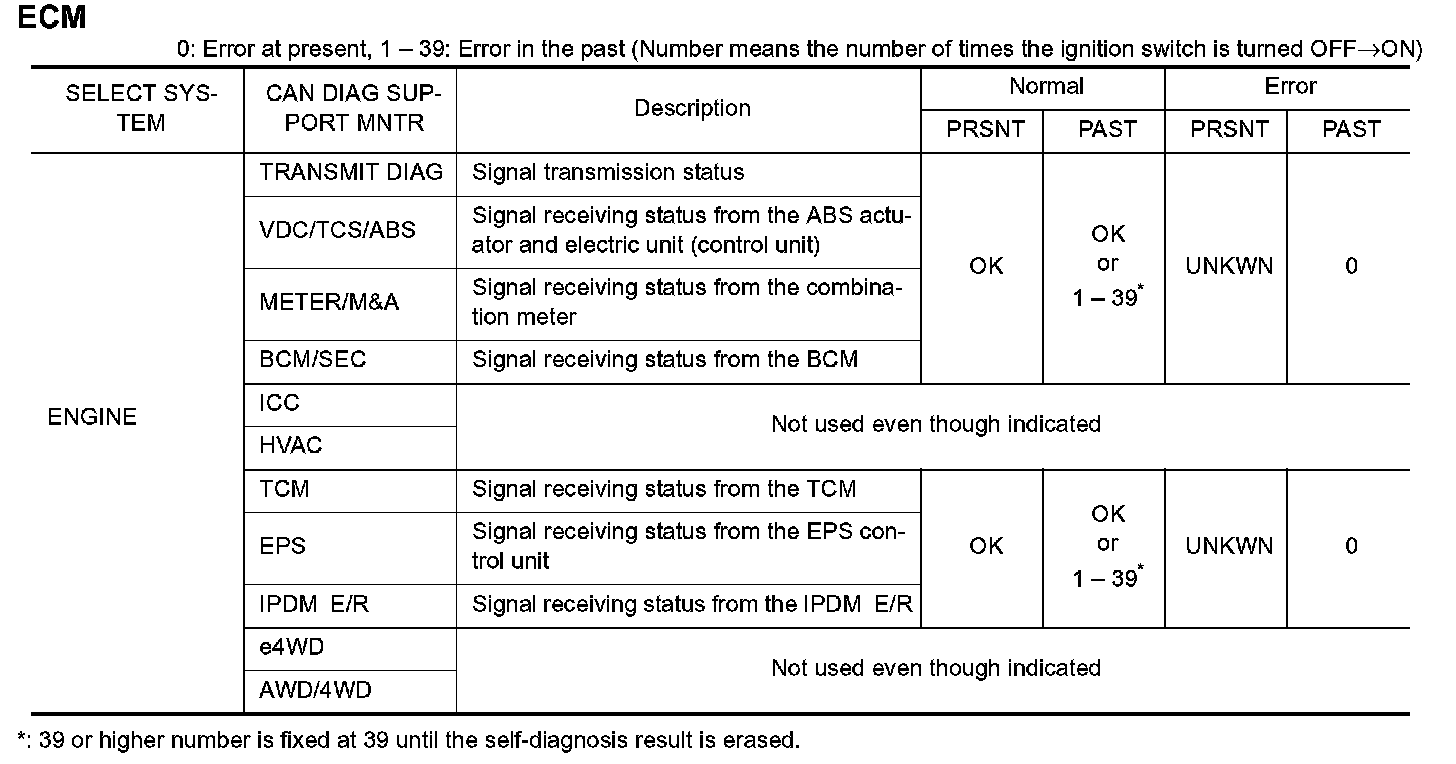

ECM

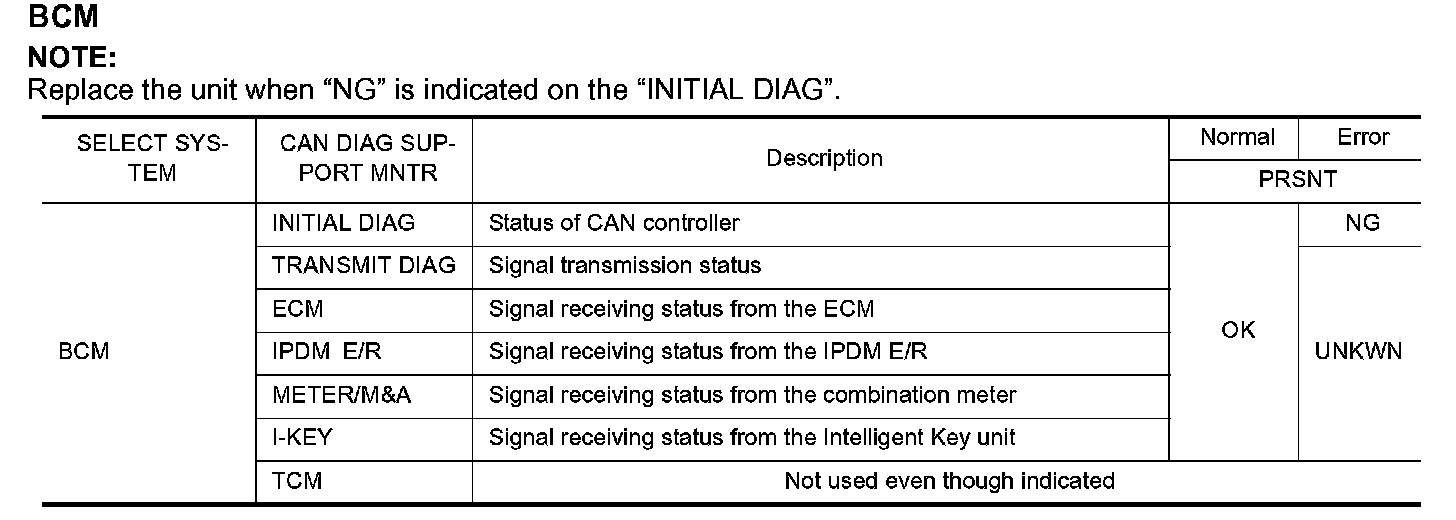

BCM

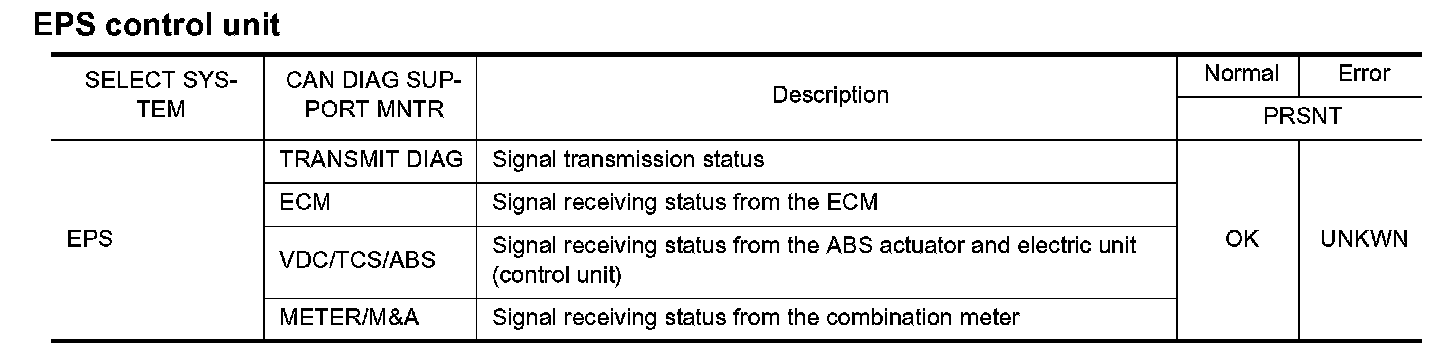

EPS control unit

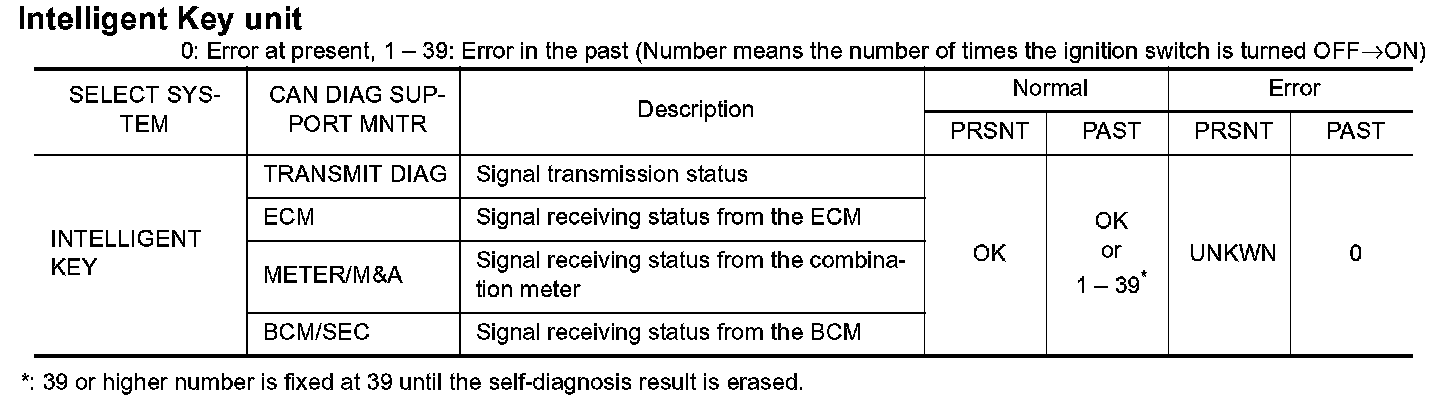

Intelligent Key unit

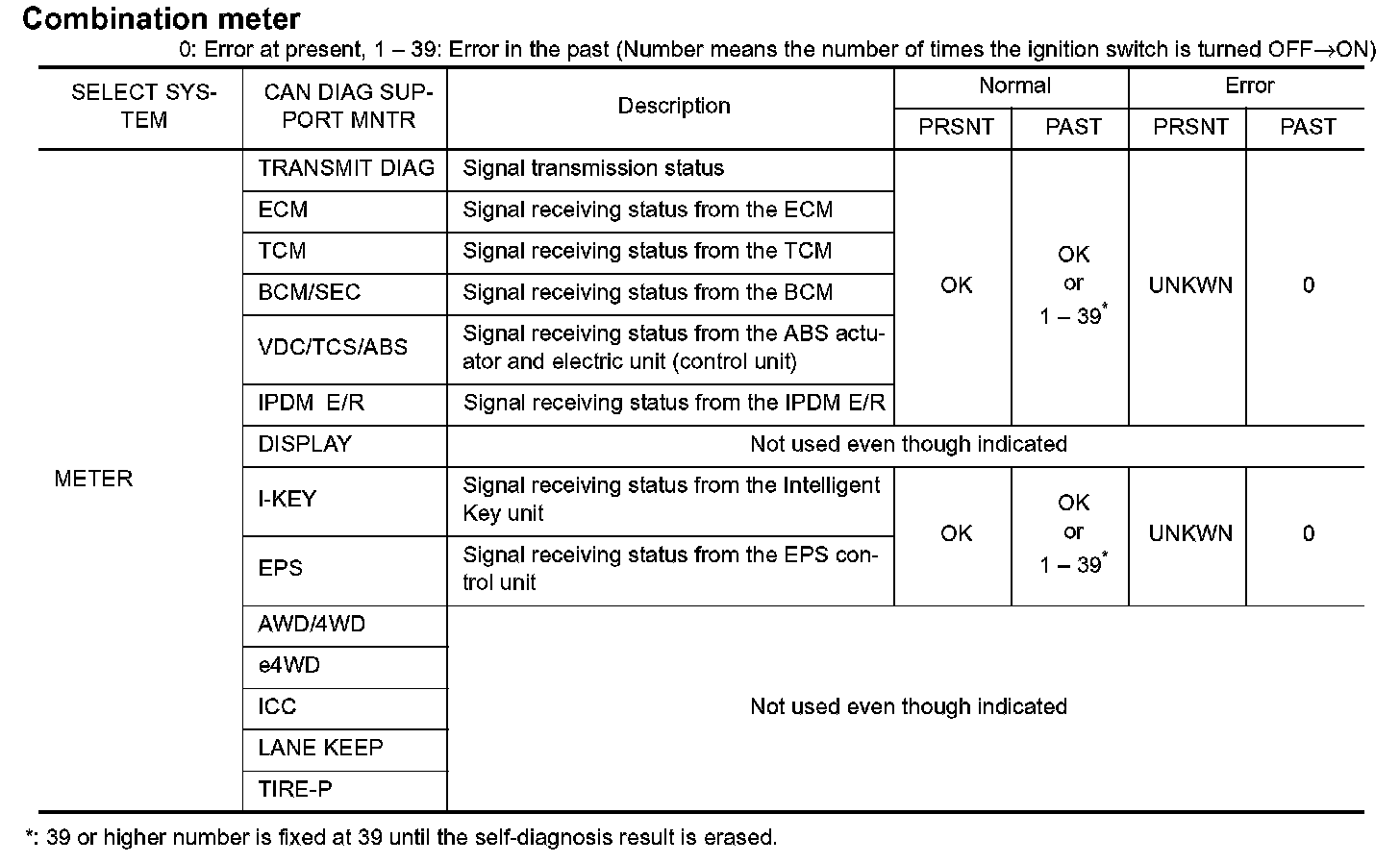

Combination meter




ABS actuator and electric unit (control unit)

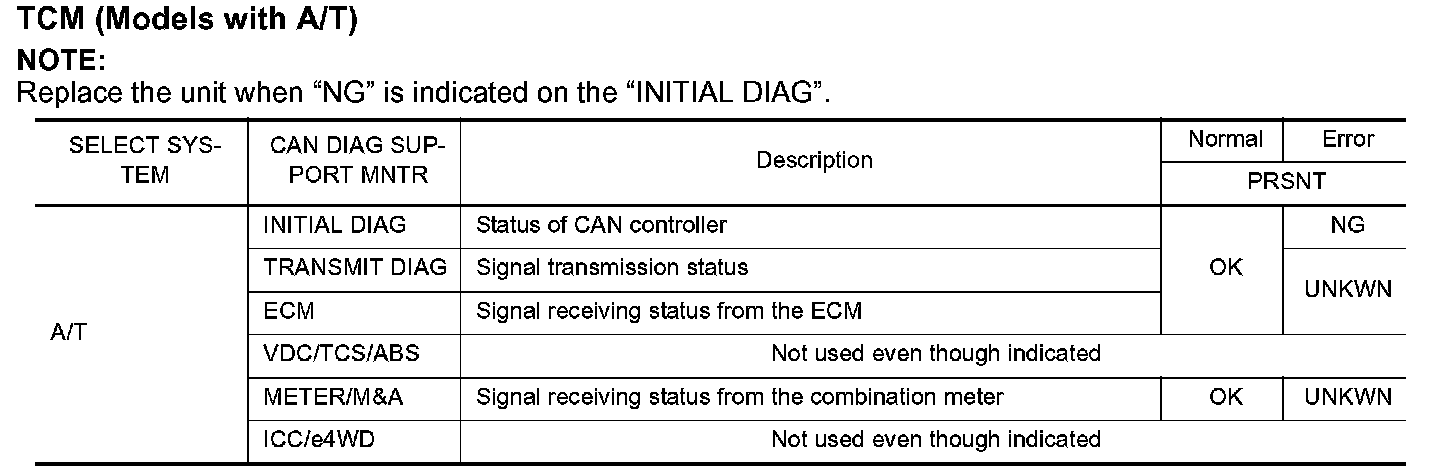

TCM (Models with A/T)

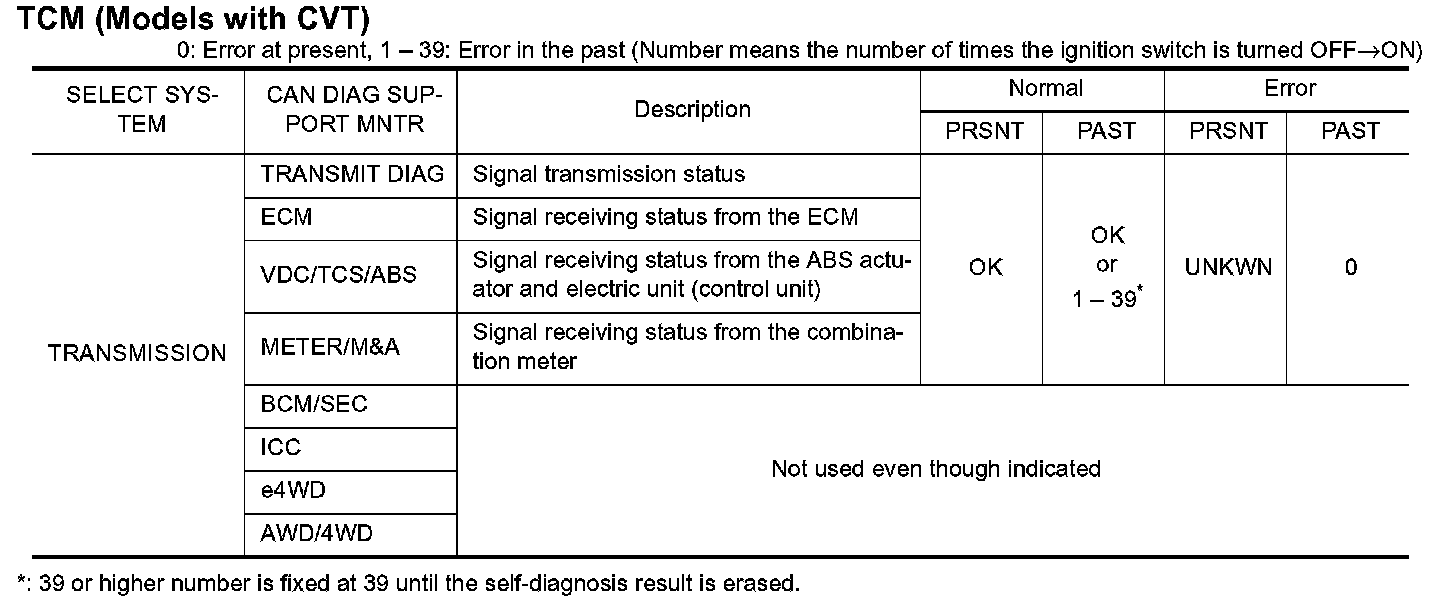

TCM (Models with CVT)

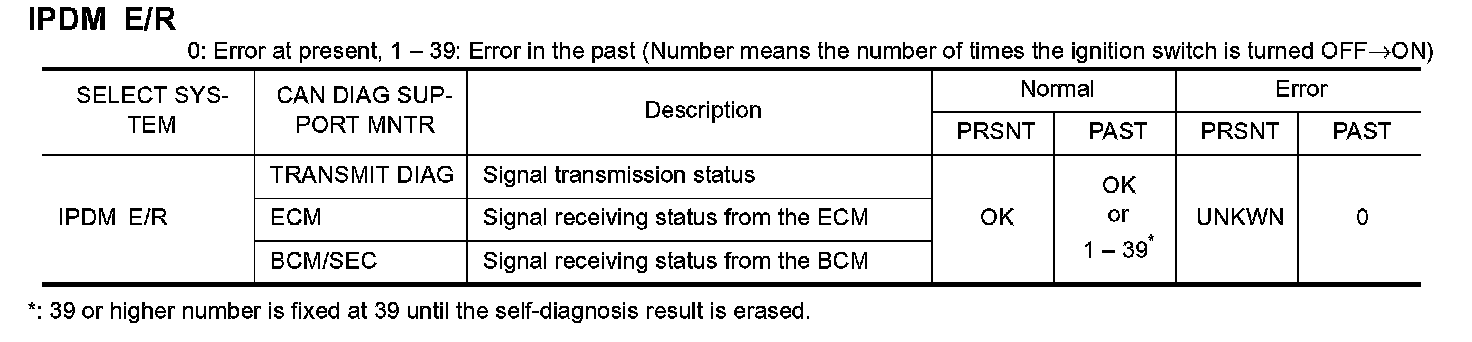

IPDM E/R
