System Specifications

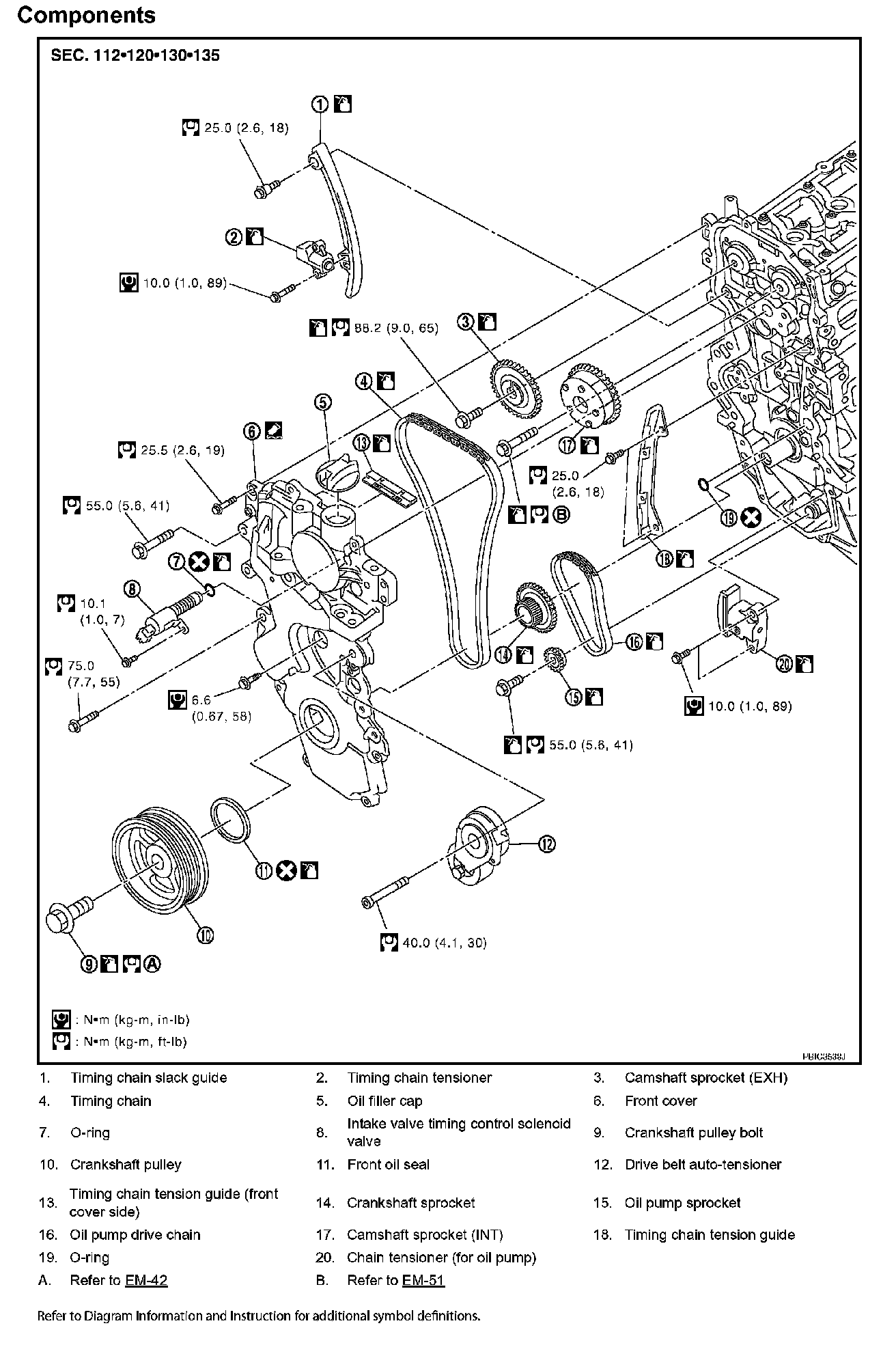

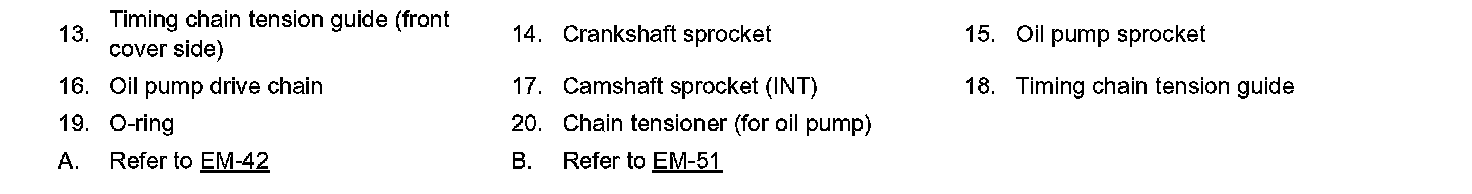

Exploded View EM-37 (Part 1):

Exploded View EM-37 (Part 2):

Timing Chain Tensioner

Crankshaft Pulley

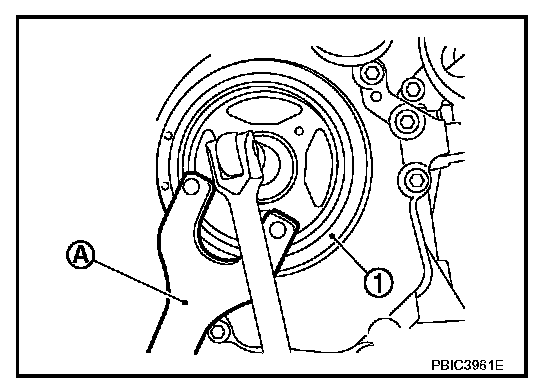

Secure crankshaft pulley (1) using tool (A).
Apply new engine oil to thread and seat surfaces of crankshaft pulley bolt.
Tighten crankshaft pulley bolt in three steps.
Step 1 68.6 Nm (7.0 kg-m, 51 ft-lb)
Step 2 0 Nm (0 kg-m, 0 ft-lb)
Step 3 29.4 Nm (3.0 kg-m, 22 ft-lb)





Put a paint mark (B) on crankshaft pulley (2), matching with any one of six easy to recognize angle marks (A) on crankshaft pulley bolt (1) flange.
Turn another 60 degrees clockwise (angle tightening) using Tool.
Check the tightening angle with movement of one angle mark.
Tool number: KV10112100 (BT-8653-A)
Make sure that crankshaft rotates clockwise smoothly.

Timing Cover

Exploded View EM-37 (Part 1):

Exploded View EM-37 (Part 2):

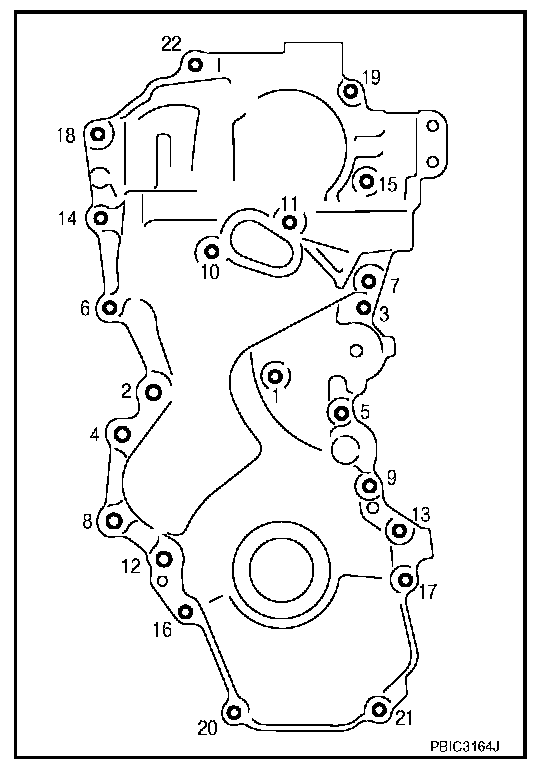

Install front cover, and tighten bolts in numerical order as shown.

CAUTION: Attaching should be done within 5 minutes after liquid gasket application.

NOTE: Refer to the following for the installation position of bolts.

M6 bolts: No. 1
M10 bolts: No. 6, 7, 10, 11, 14
M12 bolts: No. 2, 4, 8, 12
M8 bolts: Except the above
Tighten all bolts are in two stages to specified torque in numerical order as shown.
