Components

Components

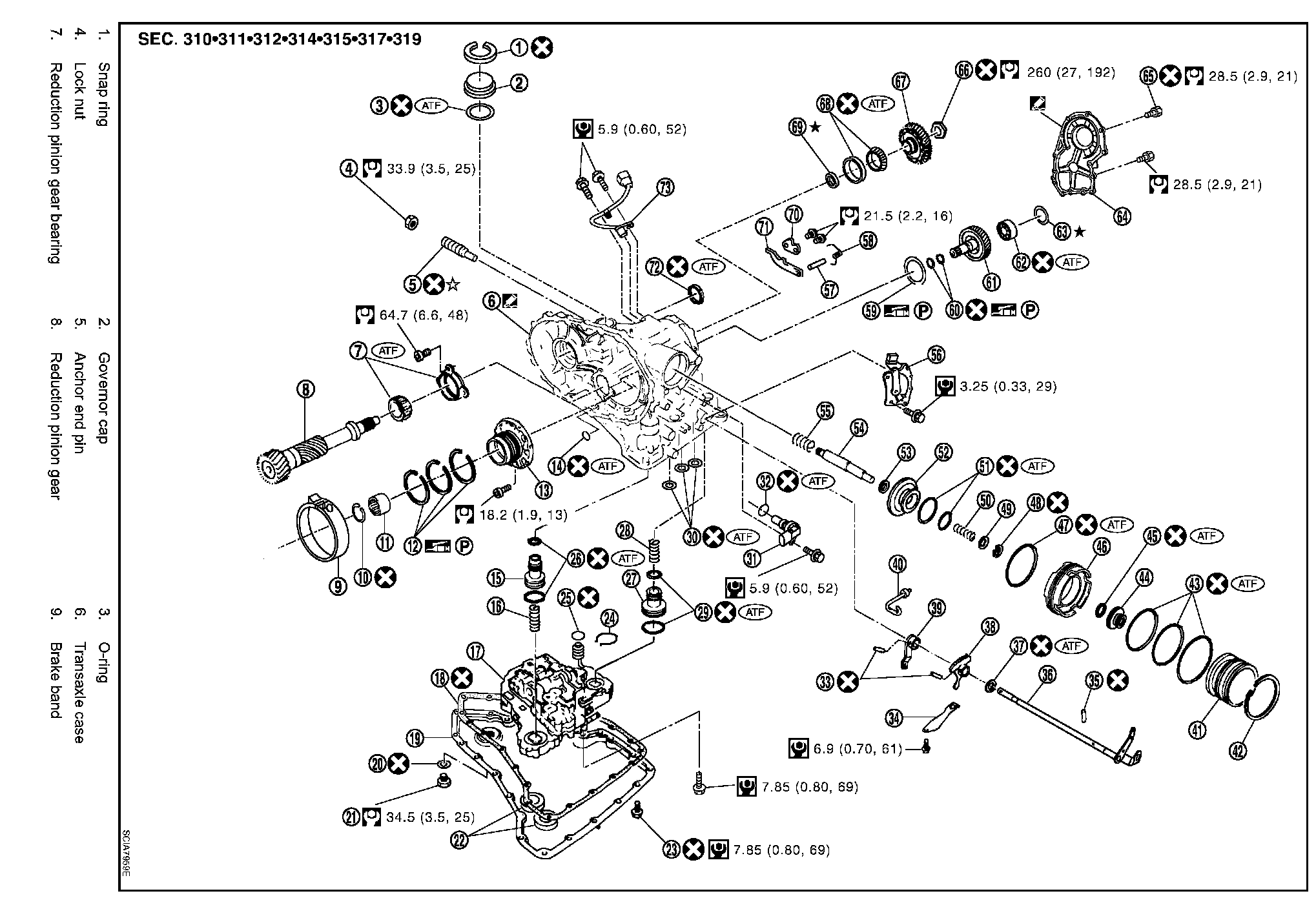

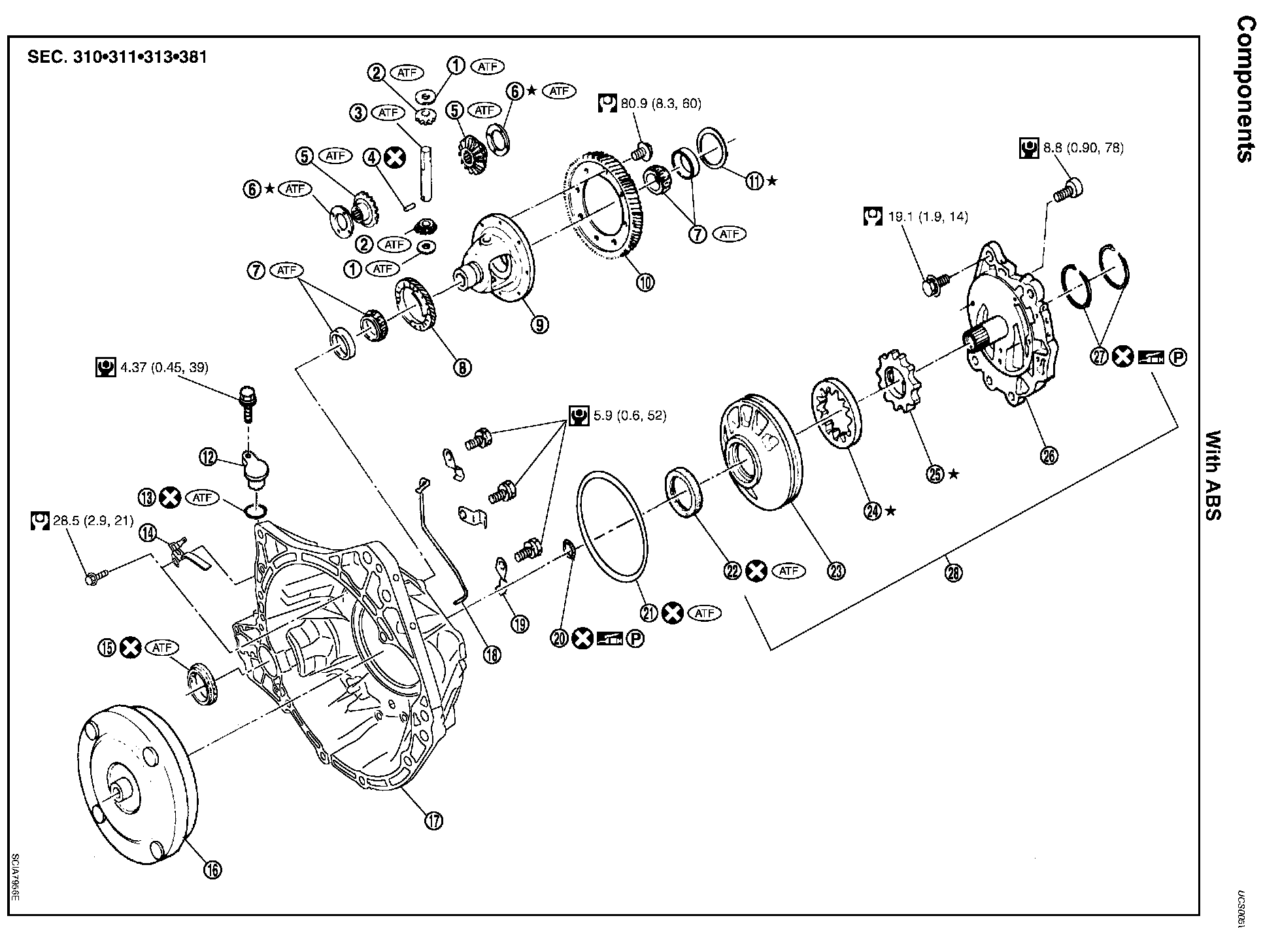

Exploded View AT-257 (Part 1):

Exploded View AT-257 (Part 2):

With ABS

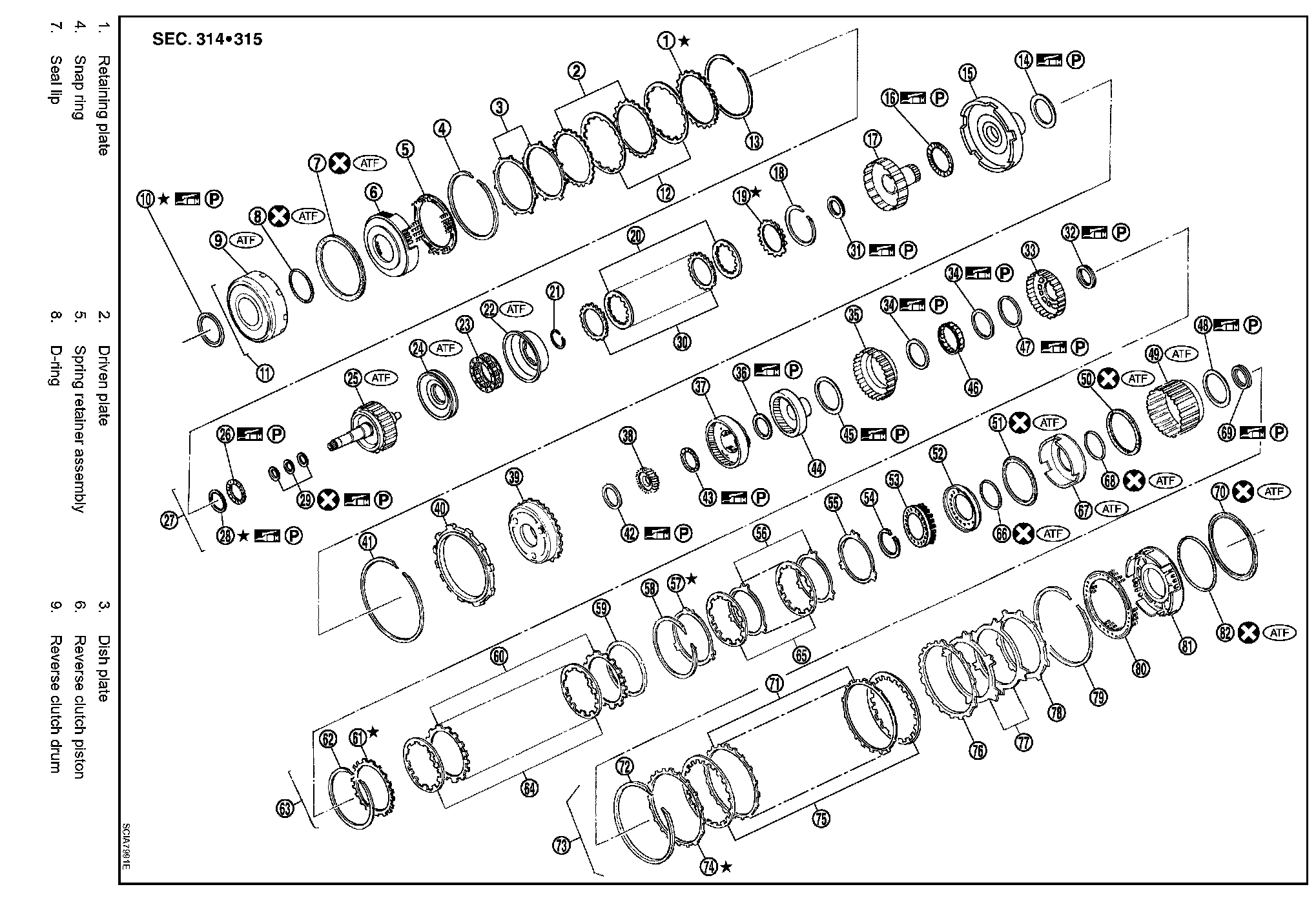

Exploded View AT-259 (Part 1):

Exploded View AT-259 (Part 2):

Exploded View AT-261 (Part 1):

Exploded View AT-261 (Part 2):

Exploded View AT-263 (Part 1):

Exploded View AT-263 (Part 2):

Without ABS
