Front Door Window Regulator: Service and Repair

FRONT DOOR GLASS AND REGULATOR

REGULATOR ASSEMBLY

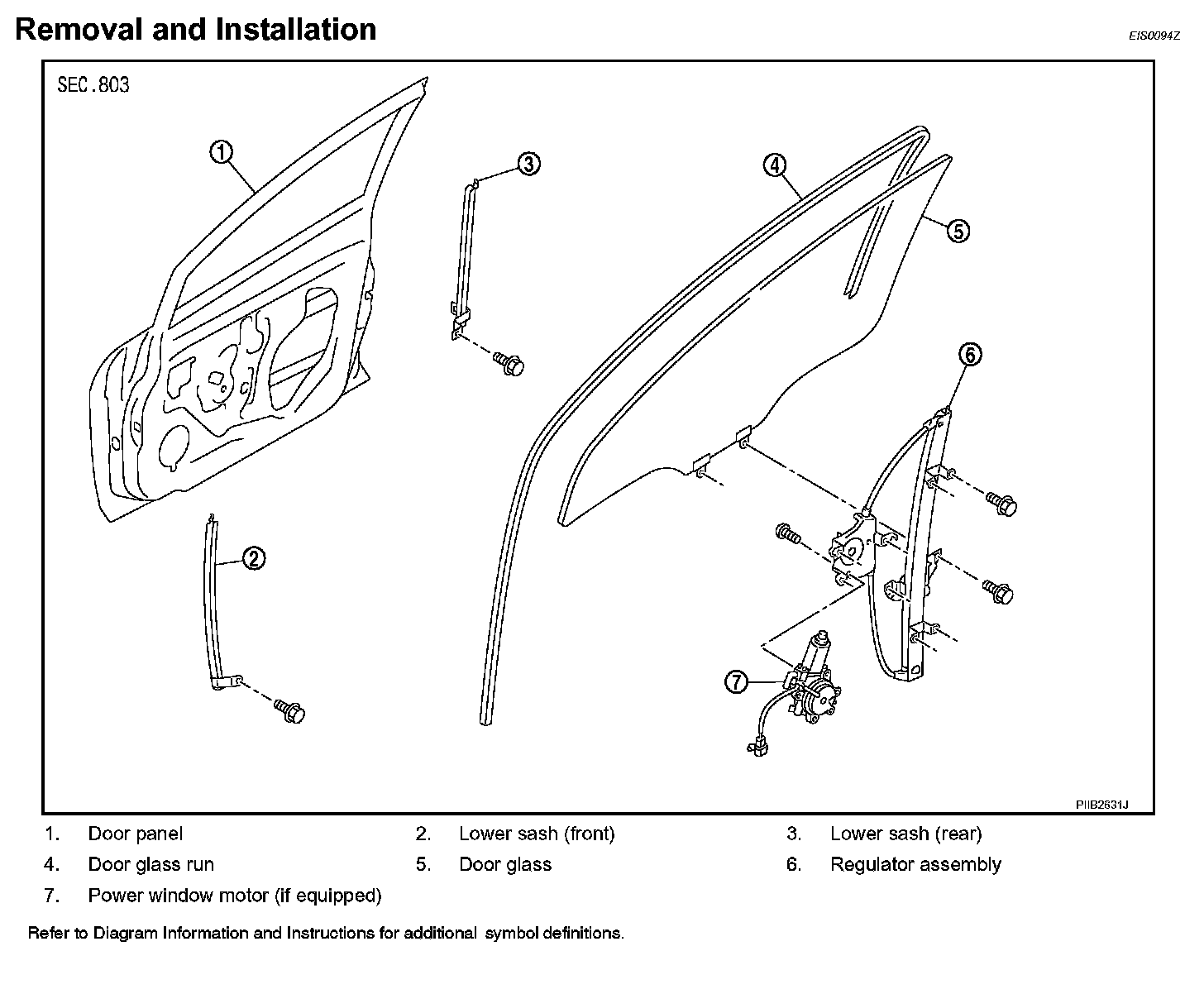

Exploded View GW-43:

Removal and Installation

Removal
1. Remove the front door finisher. Refer to "REAR DOOR".
2. Disconnect the harness connector of front speaker, and then remove sealing screen.

NOTE: If sealing screen is reused, cut the butyl-tape so that a part of butyl-tape remains on the sealing screen.




3. If equipped, reconnect the power window switch electrical connector. Operate the power window main switch to raise/lower the door window until the door glass bolts can be seen.

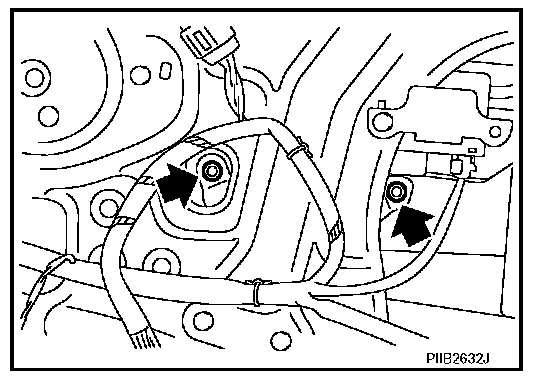

4. Remove the door glass bolts.




5. Raise the door glass and hold with a suction lifter A.
6. If equipped, disconnect the harness connector from the regulator assembly.

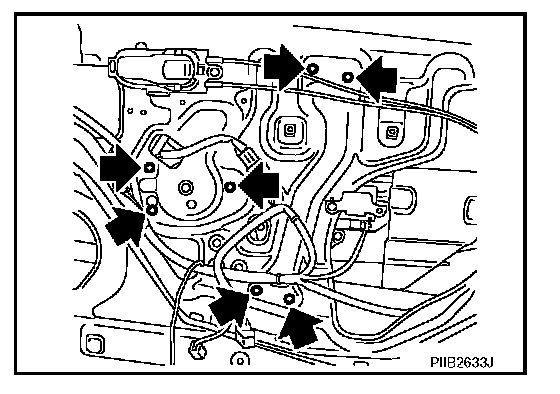

7. Remove the door glass bolts, and then remove the regulator assembly.

Installation
Installation is in the reverse order of removal.




Inspection after Removal

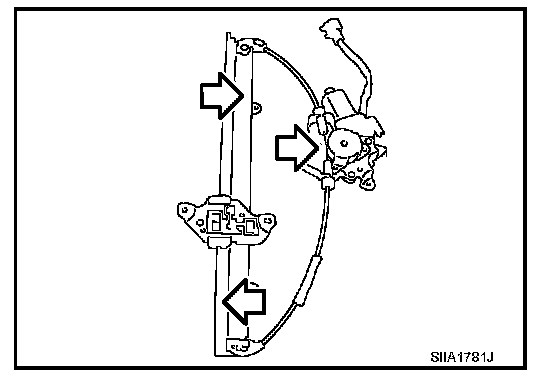

Check the regulator assembly for the following. [If a problem is
detected, grease or replace it as shown].
- Wire wear
- Regulator deformation
- Grease condition for each sliding part
