Front Fender Liner: Service and Repair

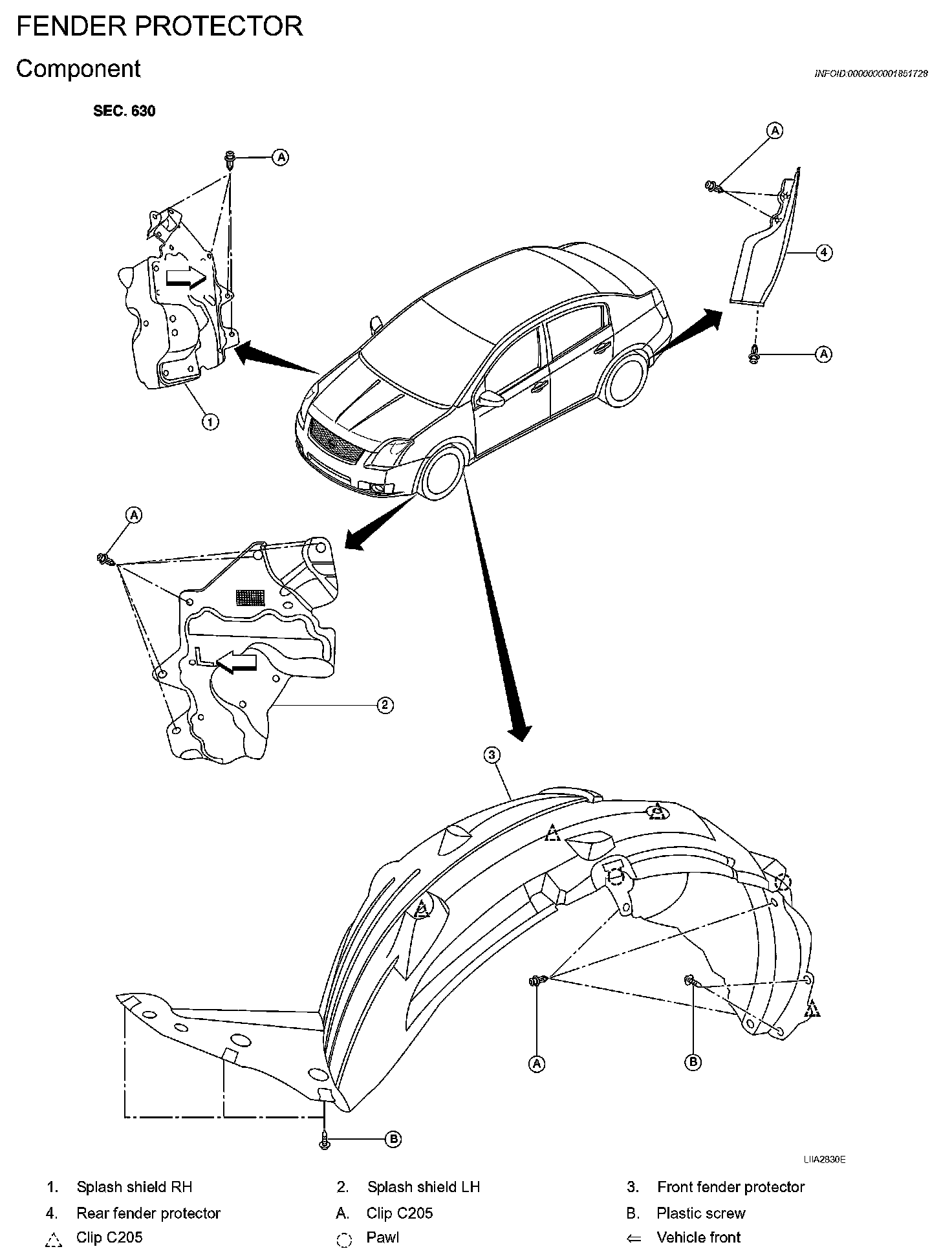

FENDER PROTECTOR

Component

EI-20 Component:

Removal and Installation

FRONT FENDER PROTECTOR

Removal
Remove the screws and clips, then remove front fender protector.

Installation
Installation is in the reverse order of removal.

SPLASH SHIELD

Removal
Remove the clips and splash shield.

Installation
Installation is in the reverse order of removal.

REAR FENDER PROTECTOR

Removal
Remove the clips and rear fender protector.

Installation
Installation is in the reverse order of removal.
