Intake Manifold

EM-128 Component:





Intake Manifold

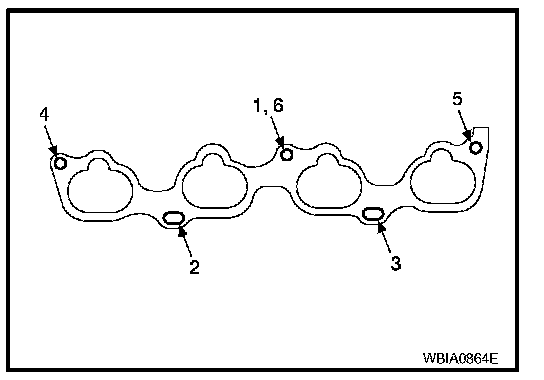

Tighten in numerical order as shown.

CAUTION:
After tightening No.5, retighten the No.1 bolt to specification.
