Procedures

BRAKE FLUID


On-Vehicle Inspection


LEVEL CHECK

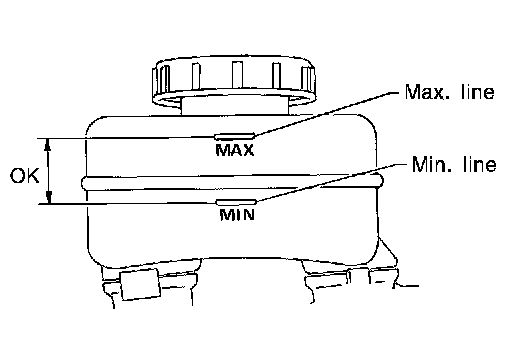

- Check that the fluid level in the reservoir tank is within the standard (between MAX and MIN lines).
- Visually check around the reservoir tank for fluid leaks.
- If fluid level is excessively low, check brake system for leaks.
- If warning lamp remains illuminated after parking brake lever is released, check brake system for fluid leakage.
