Body Control Module: Service and Repair

BCM (BODY CONTROL MODULE)


Removal and Installation of BCM


CAUTION:
Use the specified bolts described in parts information certainly when installing the BCM, or violates the Canadian law.

REMOVAL
1. Remove the dash side finisher (LH). Refer to Removal And Installation (For Coupe Models).
2. Disconnect BCM connector.

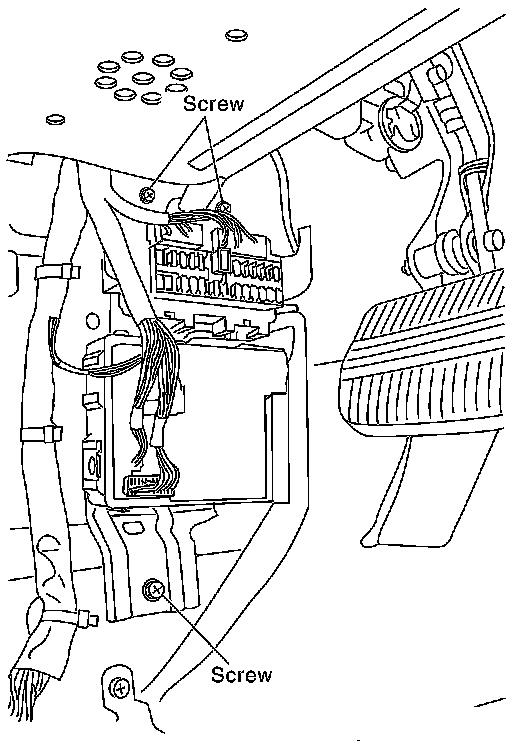

3. Remove bracket mounting screws to remove BCM and fuse block with bracket.

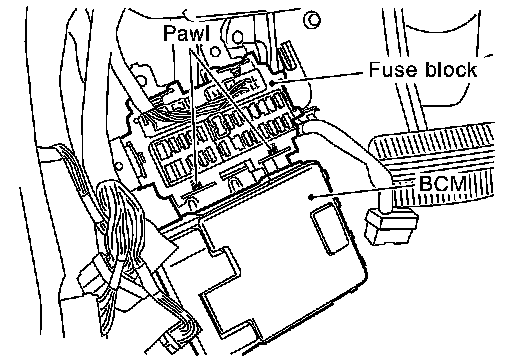

4. Raise the pawl of fuse block and remove bracket from fuse block to remove BCM.

INSTALLATION
Installation is the reverse order of removal.

NOTE:
When replacing BCM perform initialization of NATS system and registration of all NATS ignition key IDs.
