VDC/TCS/ABS Control Unit

VDC/TCS/ABS CONTROL UNIT


Removal and Installation


REMOVAL
1. Remove dash side finisher (RH). Refer to Removal And Installation.

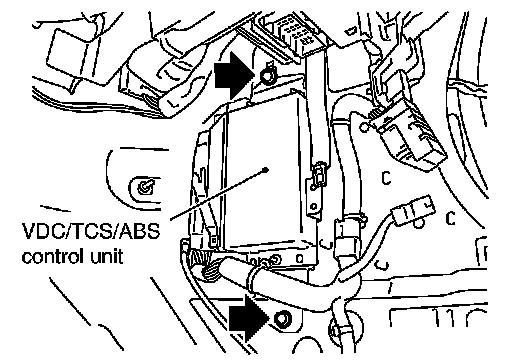

2. Remove VDC/TCS/ABS control unit bolts.
3. Remove VDC/TCS/ABS control unit.

INSTALLATION
Installation in the reverse order of removal.
- When installing the VDC/TCS/ABS control unit, tighten bolts to the specified torque.

VDC/TCS/ABS control unit bolts : 8.3 N.m (0.85 kg m, 73 in lb)

CAUTION:
When replacing VDC/TCS/ABS control unit, make sure to adjust neutral position of steering angle sensor. Refer to Testing and Inspection.
