Main Bearing Cap

Main Bearing Cap

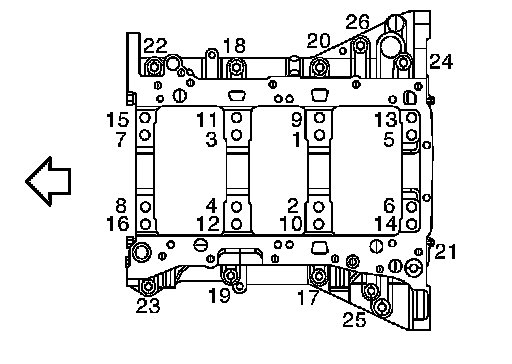

b. Tighten lower cylinder block bolt (No. 17 to 26) in numerical order as shown in the figure.

Arrow Indicates Engine front


Torque: 25.0 N.m (2.6 kg-m, 18 ft-lb)

c. Repeat step b.
d. Tighten lower cylinder block bolts (No. 1 to 16) in numerical order as shown in the figure.

NOTE:
Use TORX socket (size E14) for bolts No. 1 to 16.

Torque: 35.3 N.m (3.6 kg-m, 26 ft-lb)

e. Turn lower cylinder block bolts (No. 1 to 16) 90 degrees clockwise (angle tightening).
