Crankshaft Pulley

Crankshaft Pulley

Tighten crankshaft pulley bolt.

Torque: 44.1 N.m (4.5 kg-m, 33 ft-lb)

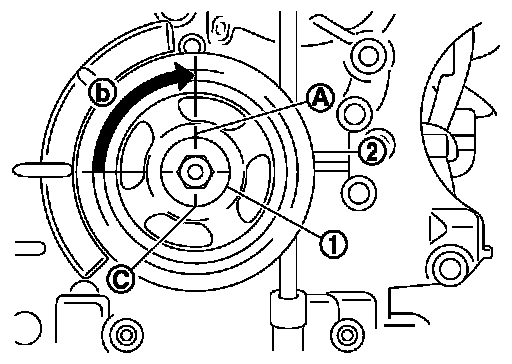

Place a paint mark (A) on crankshaft pulley (2) aligning with the angle mark (C) on crankshaft pulley bolt (1). Tighten the bolt 90 degrees (one marks) (b).
