With Color Display

INTAKE SENSOR


Removal and Installation


REMOVAL
1. Remove the evaporator. Refer to Service and Repair.

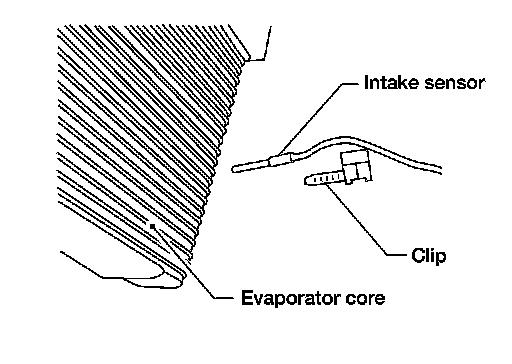

2. Release the intake sensor clip and then remove the intake sensor.

CAUTION:
- Mark the mounting position of the intake sensor.
- Do not damage the evaporator core.

INSTALLATION
Installation is in the reverse order of removal.
