With Color Display

REFRIGERANT PRESSURE SENSOR


Removal and Installation for Refrigerant Pressure Sensor


REMOVAL
1. Discharge the refrigerant. Refer to Refrigeration System.
2. Remove the top filler panel.
3. Remove the front air duct.

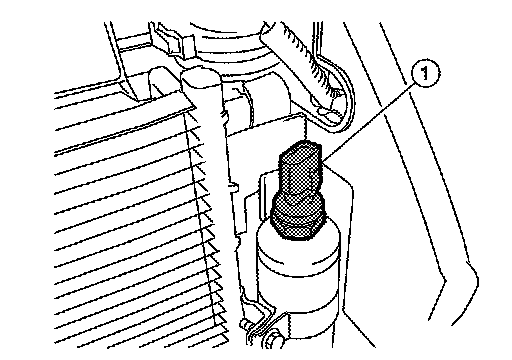

4. Disconnect the refrigerant pressure sensor connector and remove the refrigerant pressure sensor (1) from the liquid tank on the condenser.

CAUTION:
Do not damage the condenser fins.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION:
Replace the O-ring with a new one, then apply compressor oil to it for installation.
