Camshaft Bearing Cap
Camshaft Bearing Cap
Camshaft Bearing
Cap

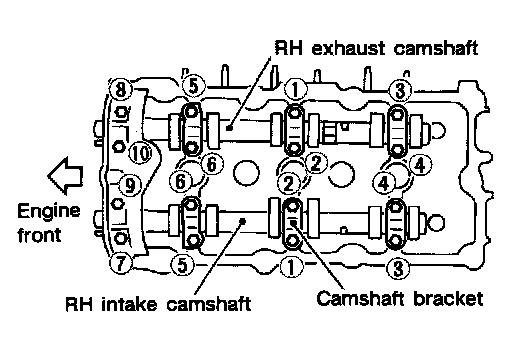

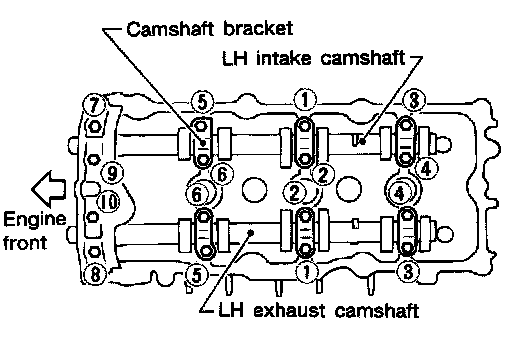

Tighten the
camshaft
brackets in the three steps, in numerical order as shown.
