Available Thrust Washer




SERVICE DATA AND SPECIFICATIONS (SDS)

Available Thrust Washer

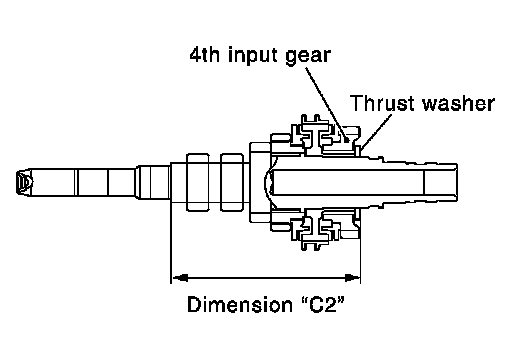

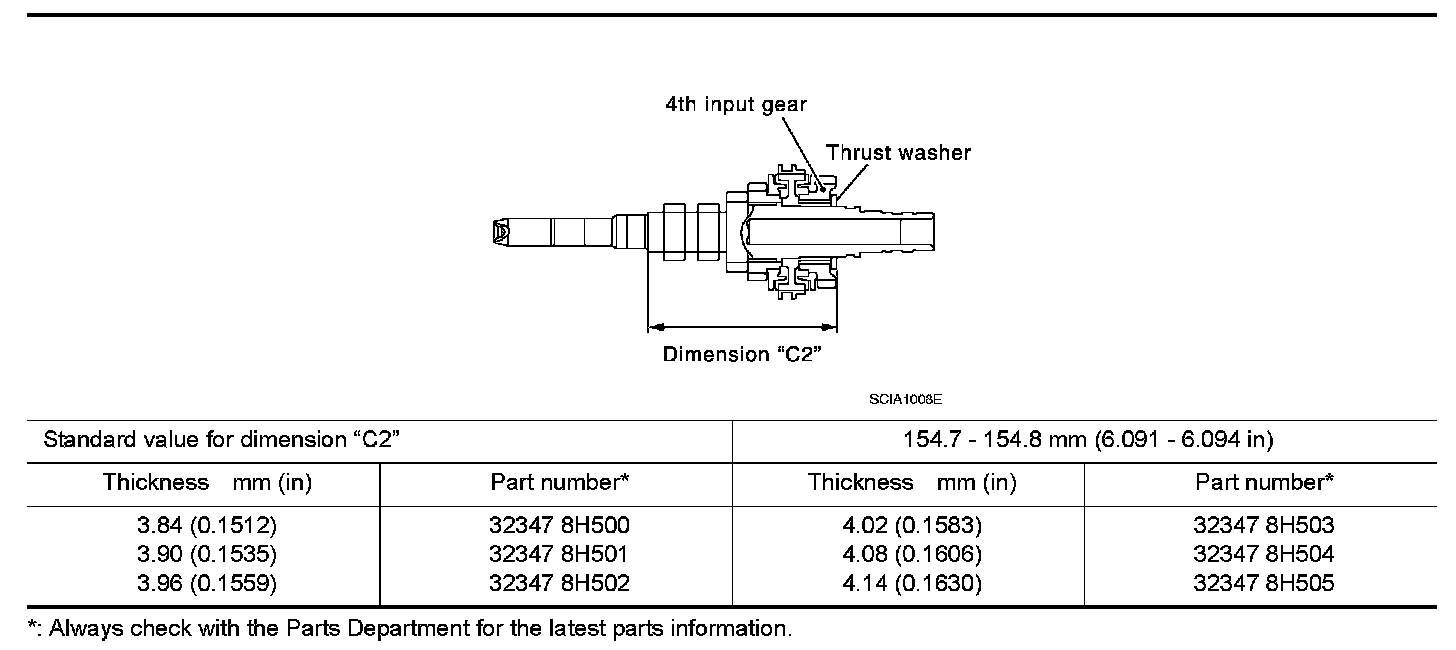

INPUT SHAFT THRUST WASHER

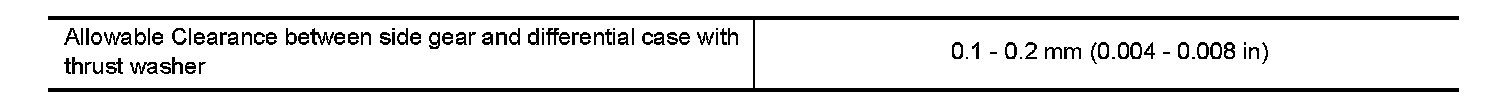

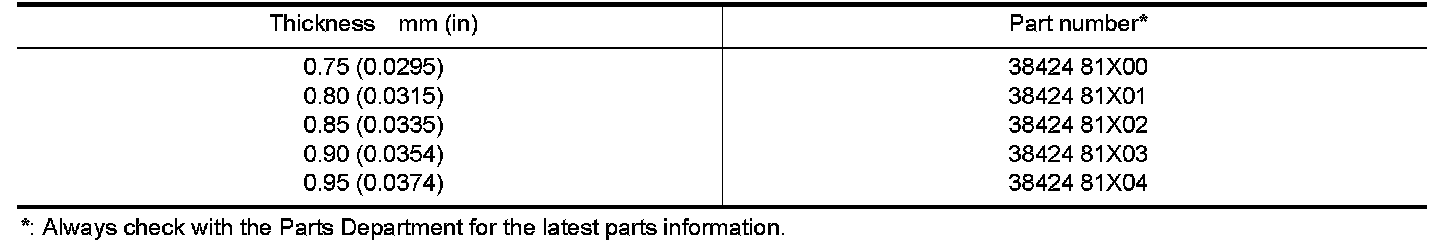

DIFFERENTIAL SIDE GEAR THRUST WASHER
