Fuel Control & Fuel Injectors

Fuel Controls And Fuel Injectors:

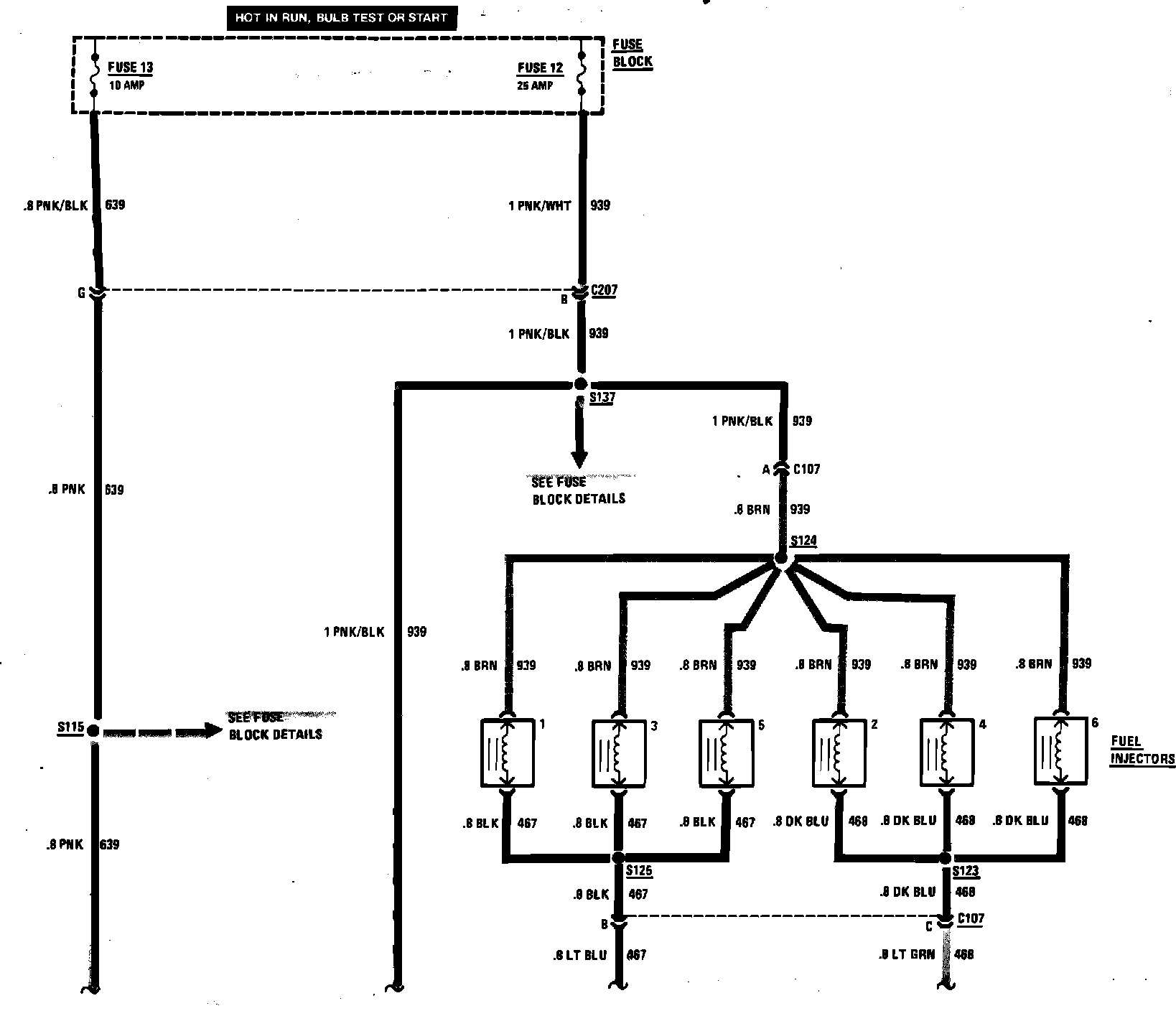

Multiport Fuel Injection Wiring Circuit (Fuel Control & Injectors, Part 1 Of 2):

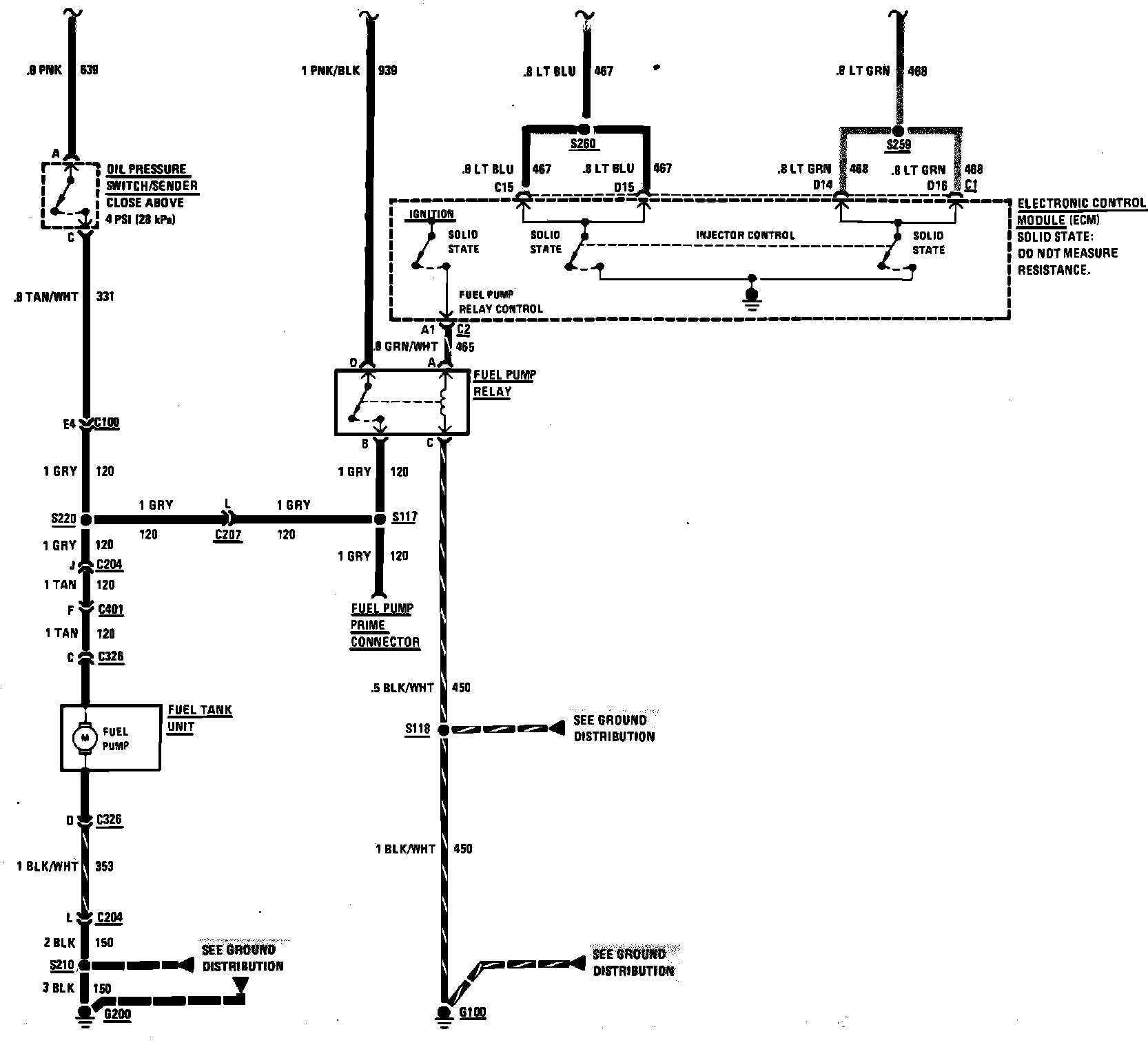

Multiport Fuel Injection Wiring Circuit (Fuel Control & Injectors, Part 2 Of 2):
