Blower Controls
>>
With Electronic Climate Control
With Electronic Climate Control

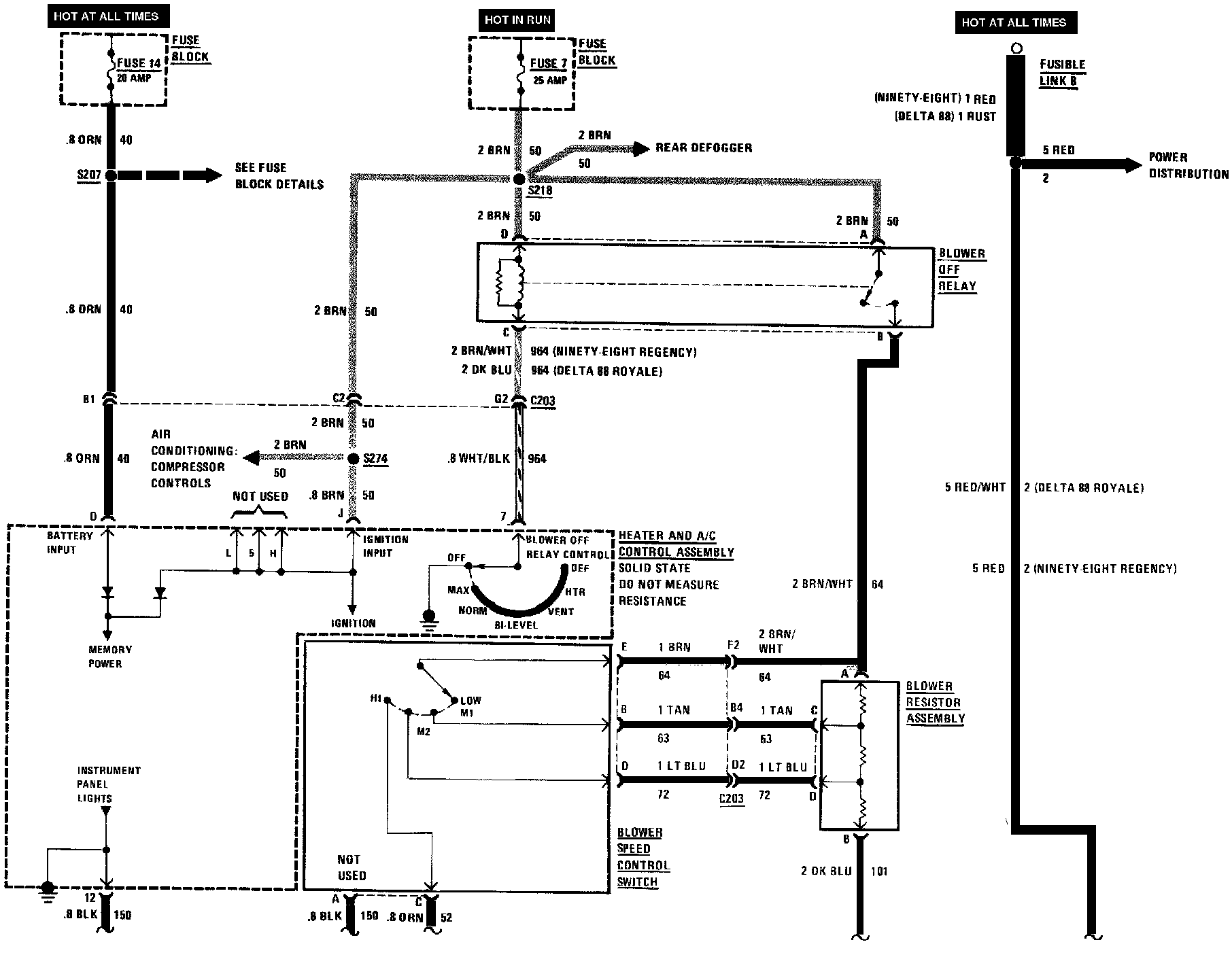

Blower Controls Wiring Diagram With Electronic Climate Control. Part 1 Of 2.:
Blower Controls Wiring Diagram With Electronic Climate Control Part 2 Of 2.:
