Without Electronic Climate Control
Without Electronic Climate Control

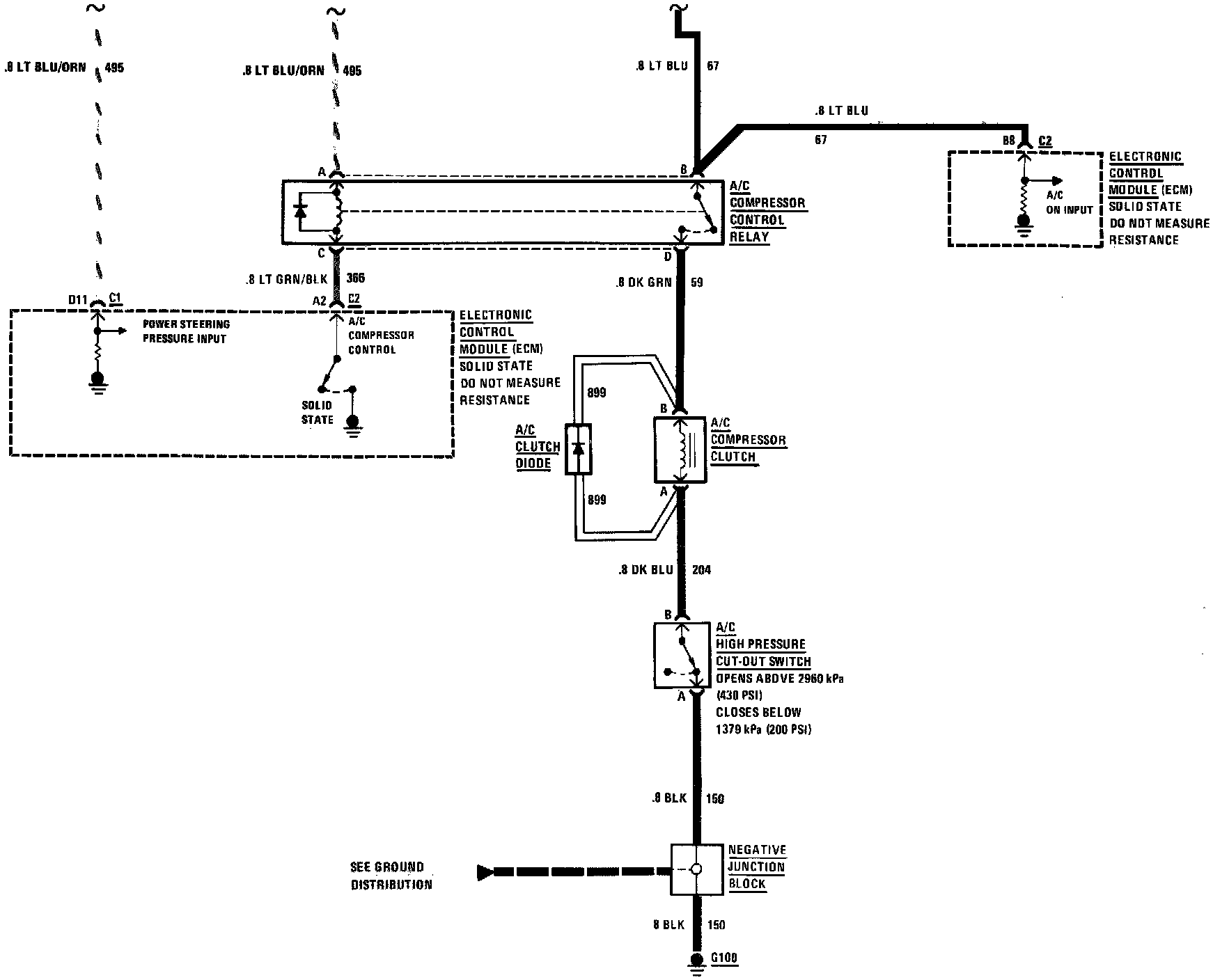

A/C Compressor Controls Wiring Diagram Without Climate Control Part 1 Of 2:

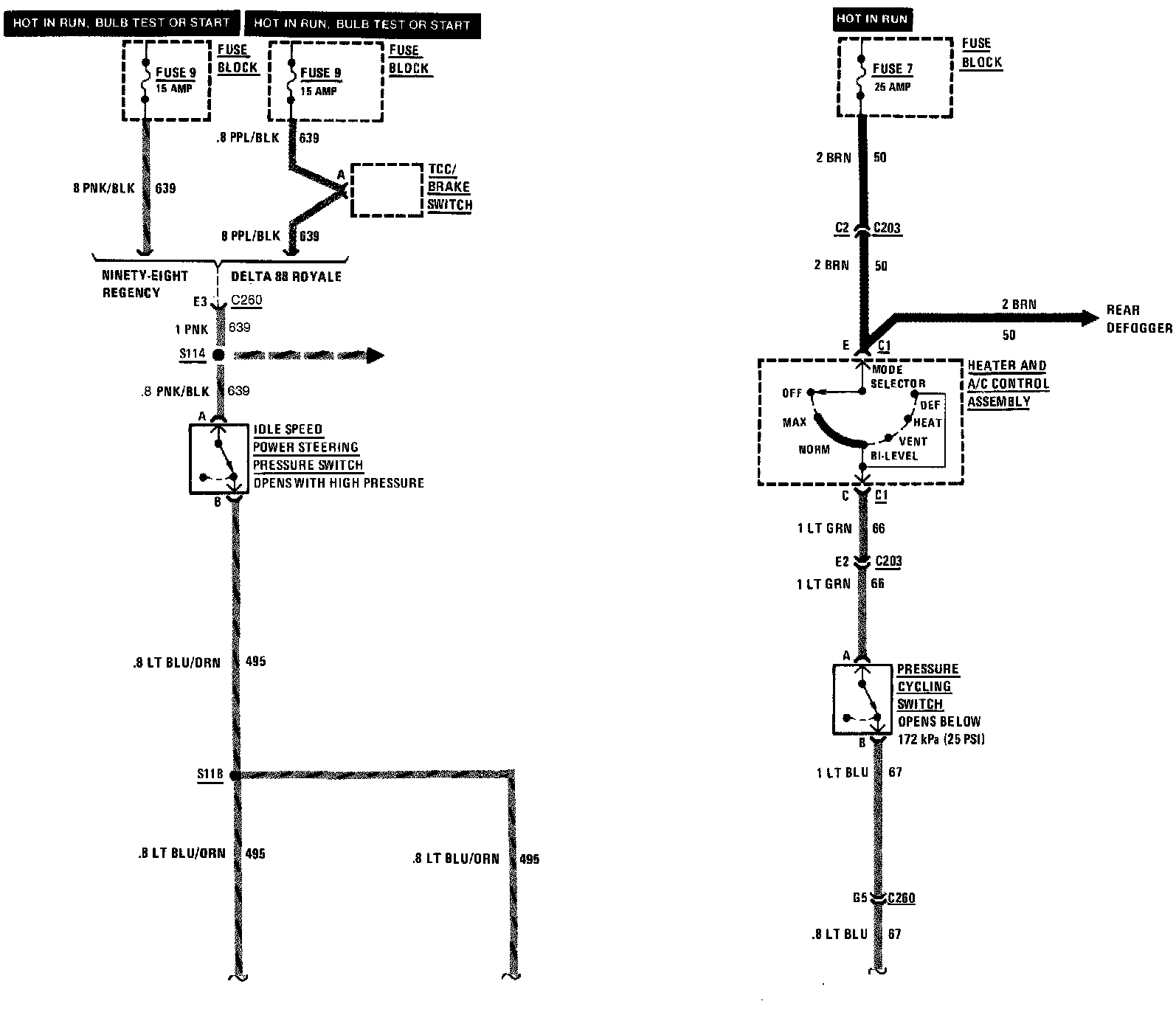

A/C Compressor Controls Wiring Diagram Without Climate Control Part 2 Of 2:
