Home >> Oldsmobile >> 1987 >> Toronado V6-231 3.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G307

G307

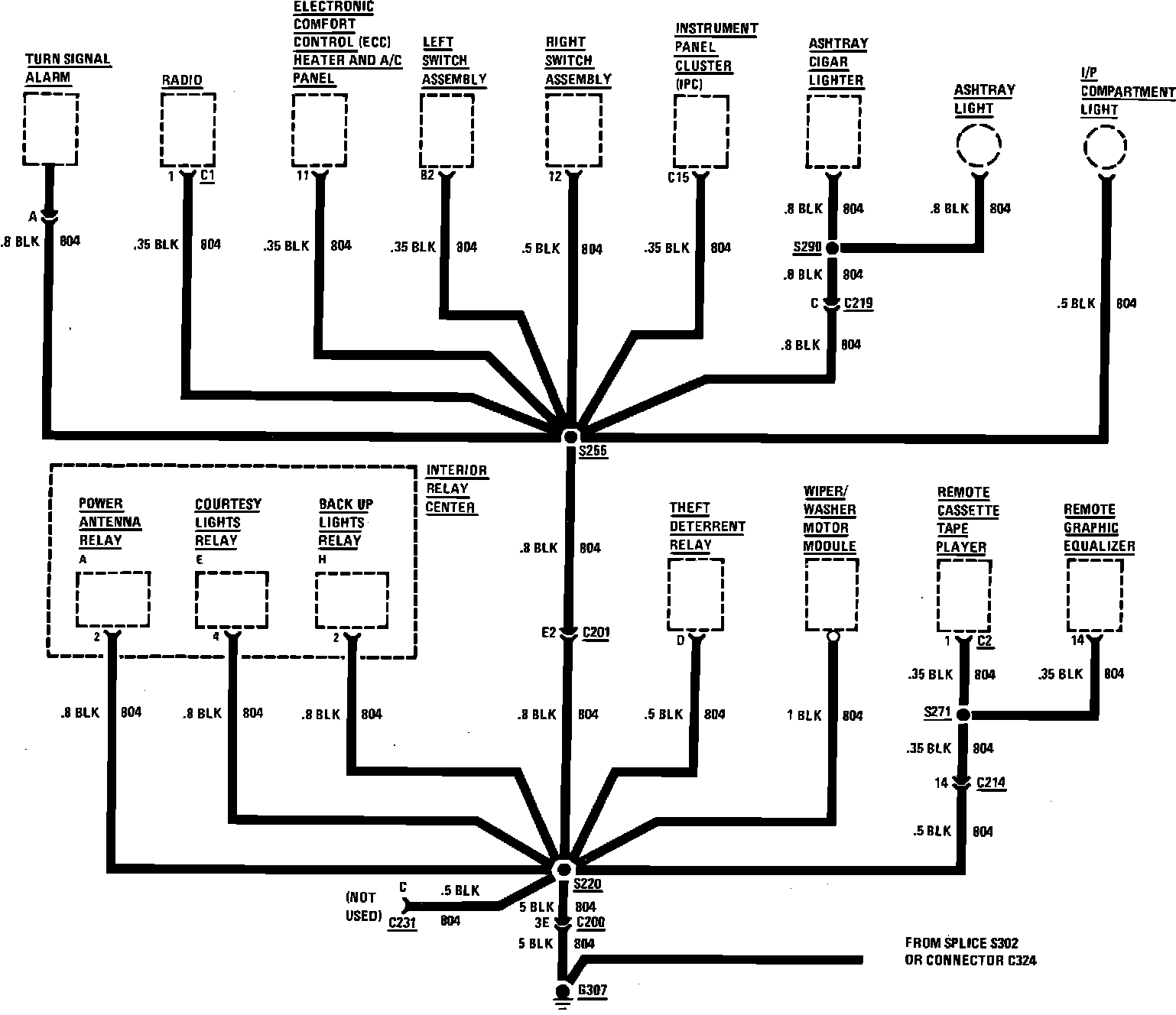

Ground Distribution. G307:
