Interior - Double Chime For Key Warning Chime
87olds8NUMBER: 88-T-14
DATE: December 11, 1987
SECTION: 8A
SUBJECT DOUBLE CHIME FOR KEY WARNING CHIME
MODELS/YEARS 1988 TOURING SEDAN
Initial production of the 1988 Touring Sedan used a wiring harness with the No. 80 key warning circuit to the warning chime module. This circuit is also part of the Y67 reminder option and therefore results in both modules emitting a chime warning.
The double chime will sound whenever the driver's door is opened with the key in the ignition lock and may be objectionable to the owner.

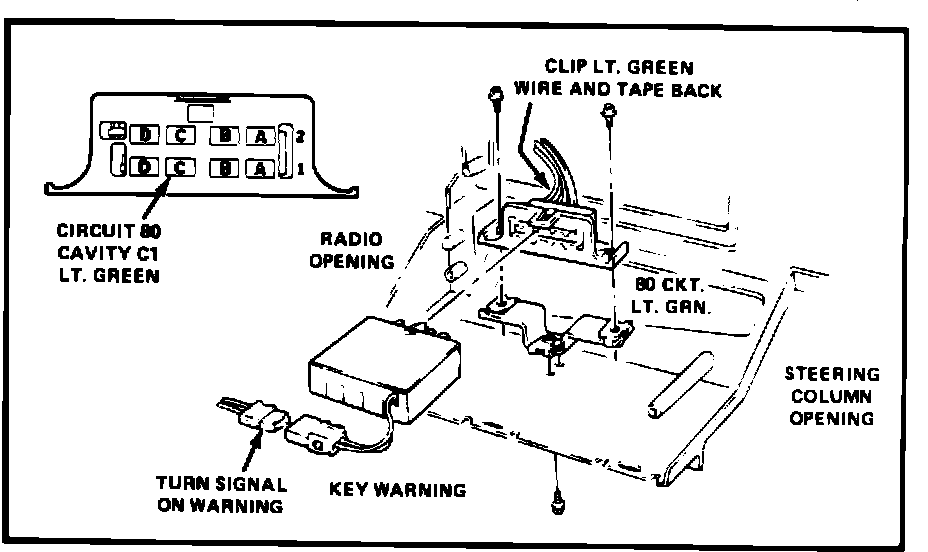

Figure 1:
The condition may be corrected by cutting the lt. green wire (No. 80 circuit) at the chime module connector cavity C1. This connector is located above the left sound absorber between the steering column and the ashtray housing. Tape the cut wire back to prevent a short to ground. Refer to Figure 1.
Recheck the key warning chime operation and reinstall all parts removed.
WARRANTY INFORMATION:
Labor Operation: T4201
Labor Time: .3 hrs
Trouble Code: 92
