Cutlass Supreme FWD V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
Cruise Control

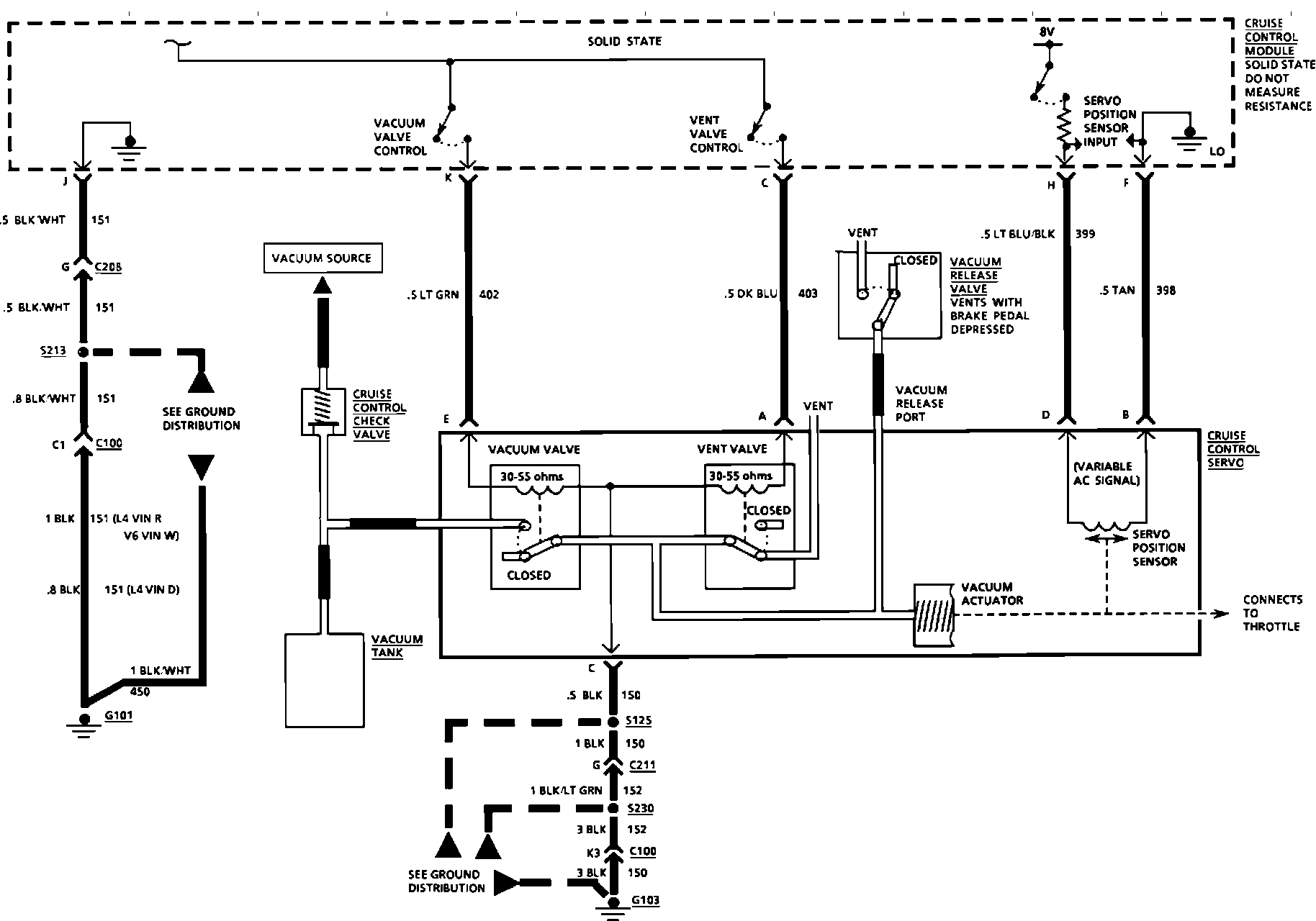

Cruise Control Wiring Circuit (Part 1 of 2):

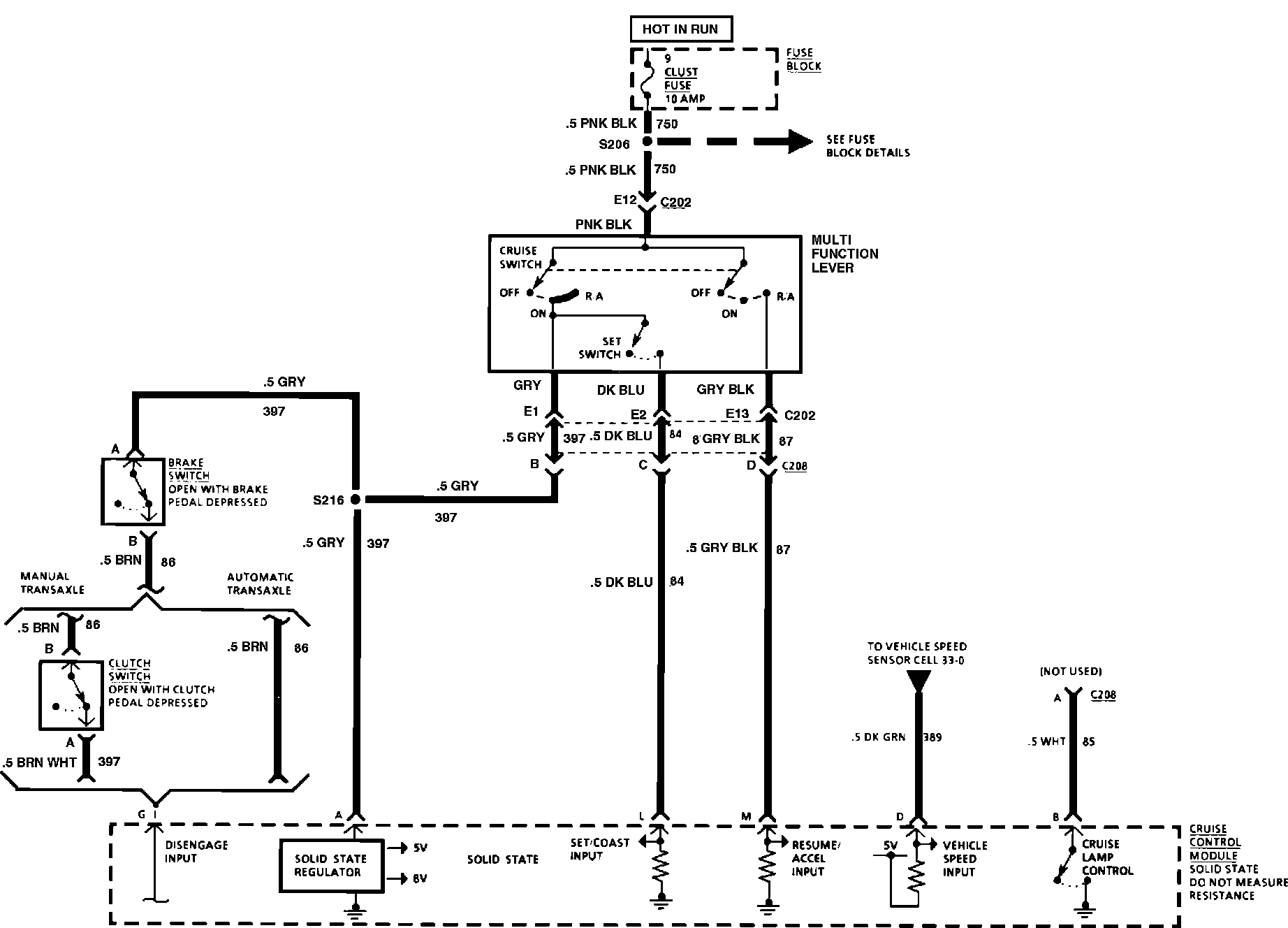

Cruise Control Part 2 Of 2:
