Engine Controls

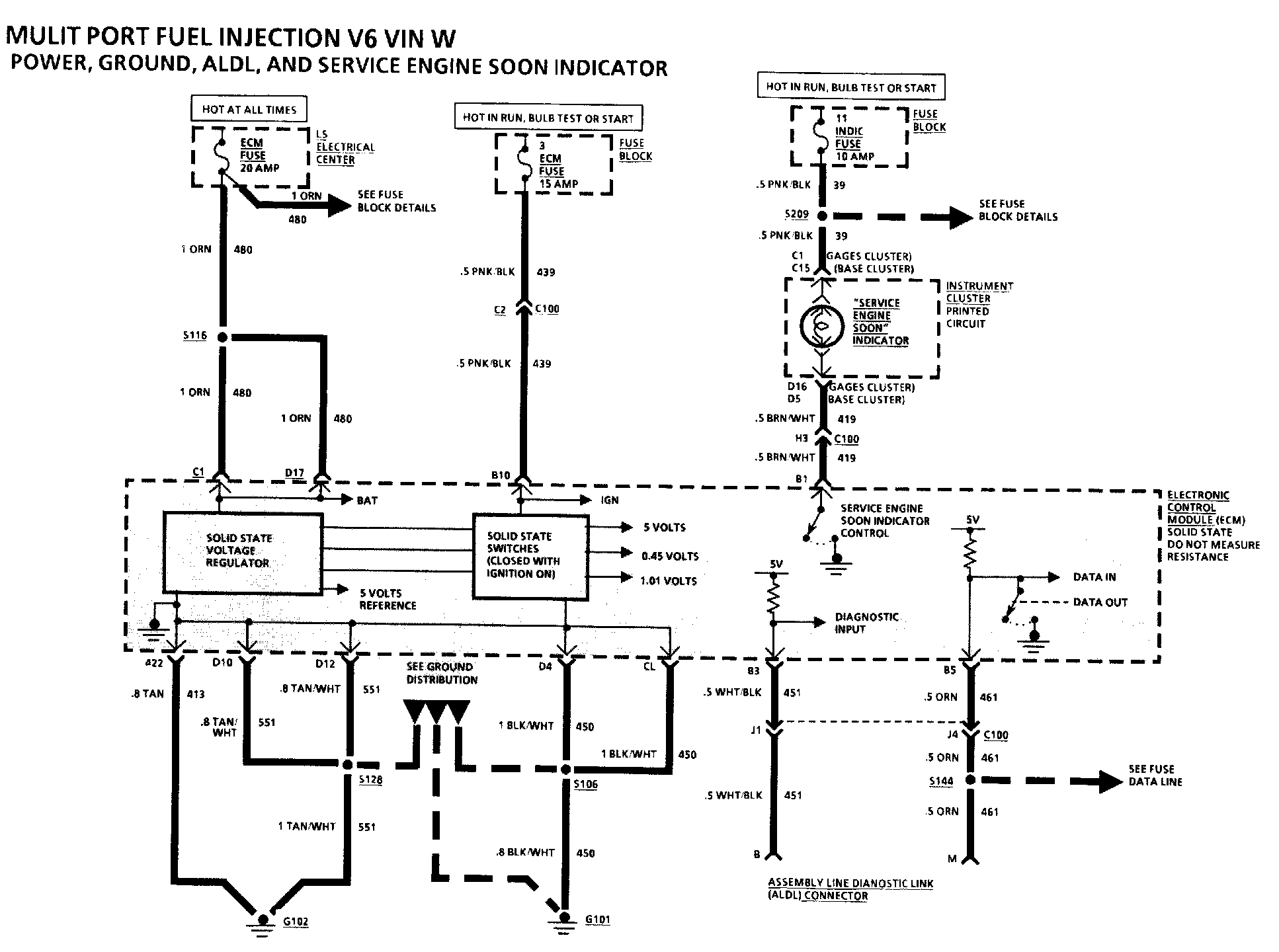

Power, Ground, ALDL, and Service Engine Soon Indicator:

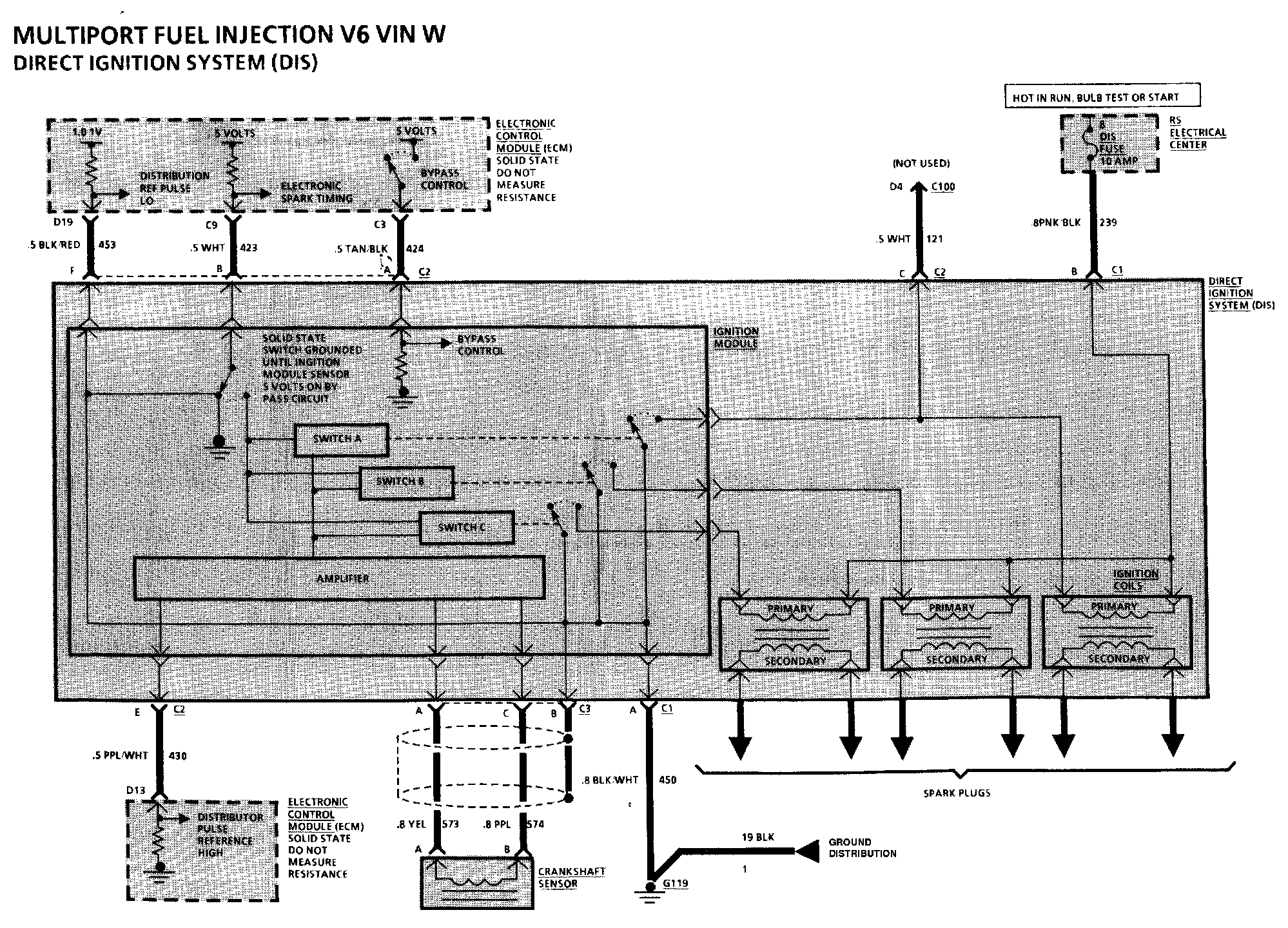

Direct Ignition System (DIS):

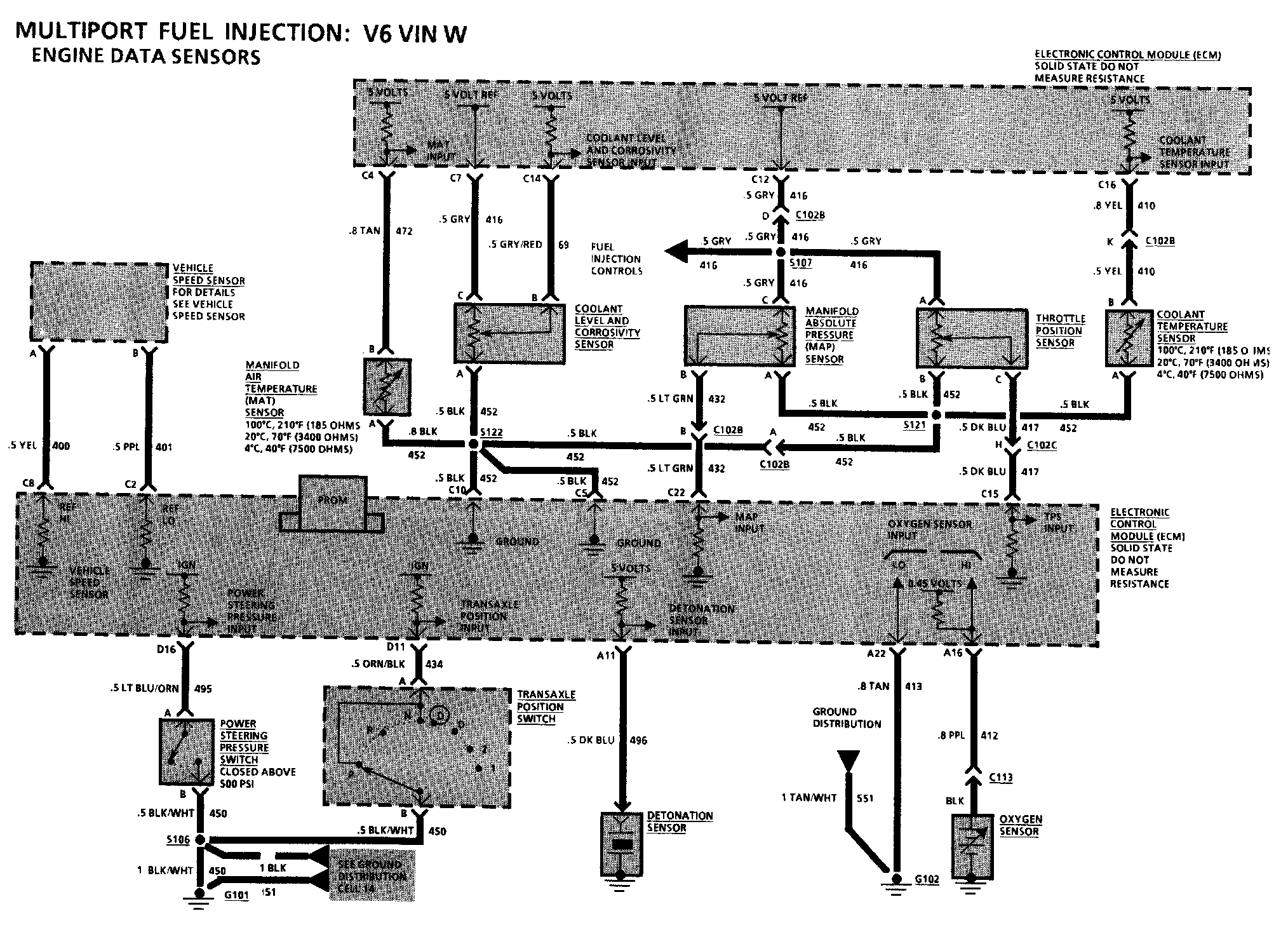

Engine Data Sensors:

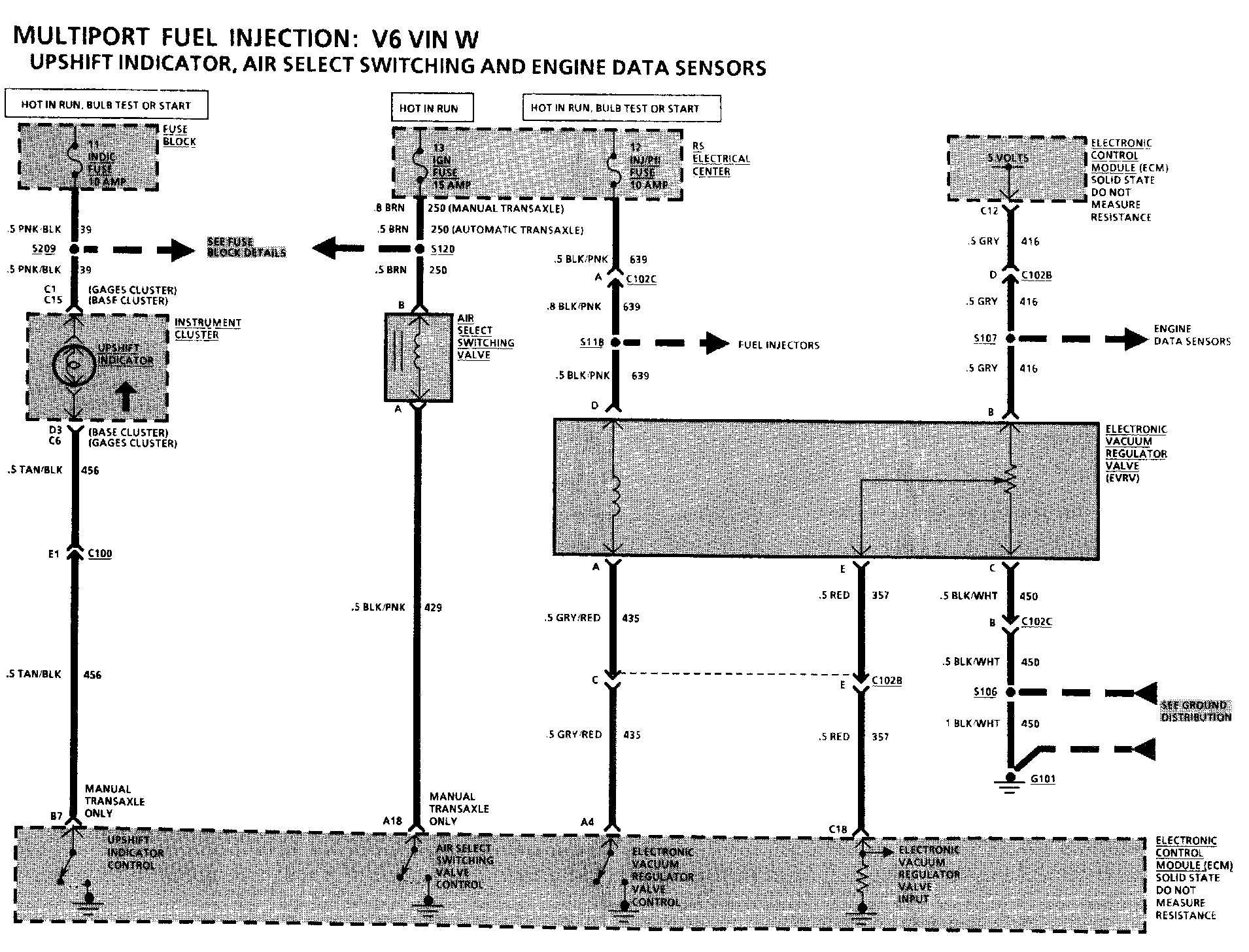

Upshift Indicator, AIR Select Switching and Engine Data Sensors:

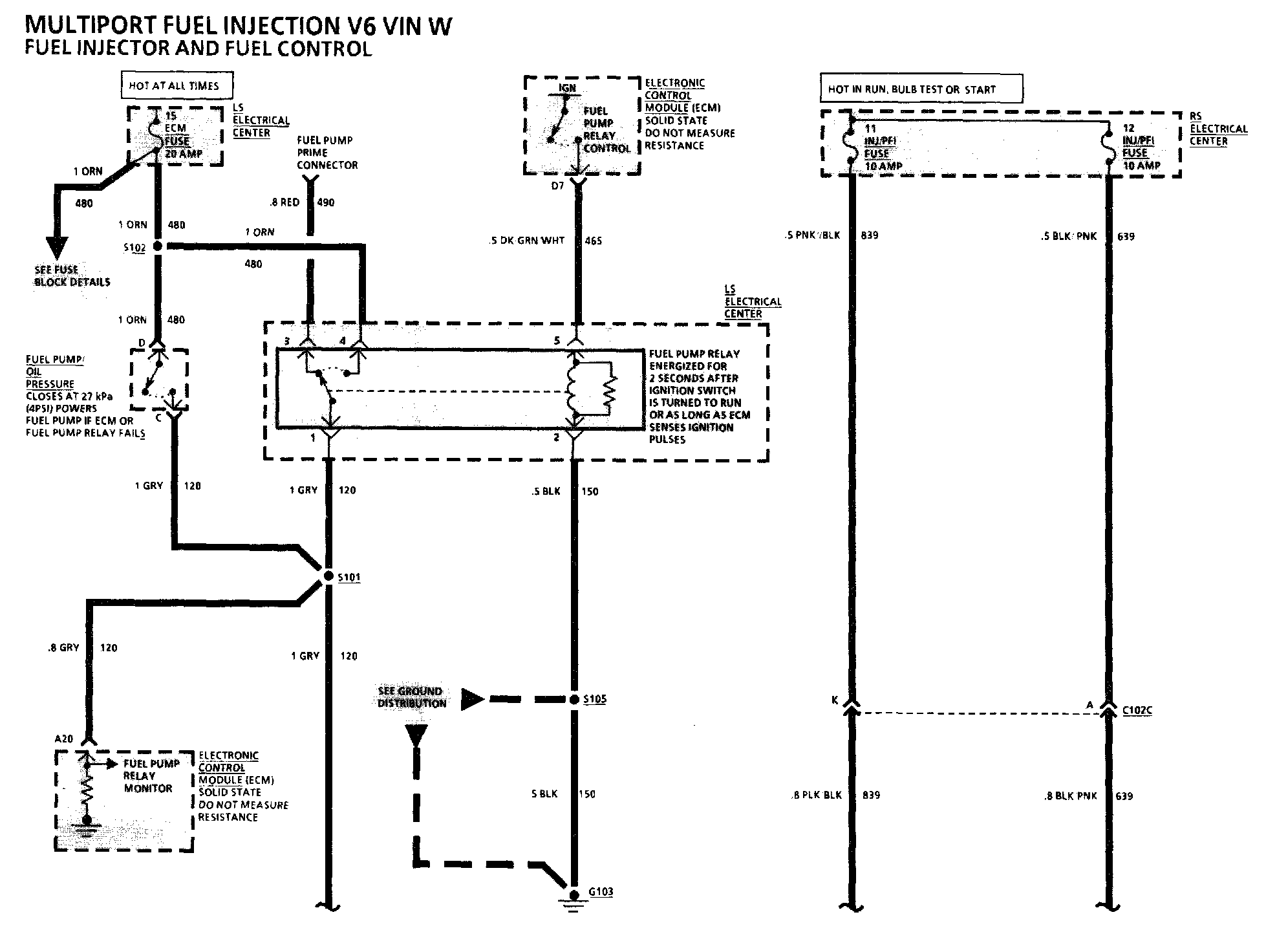

Fuel Injectors and Fuel Control:

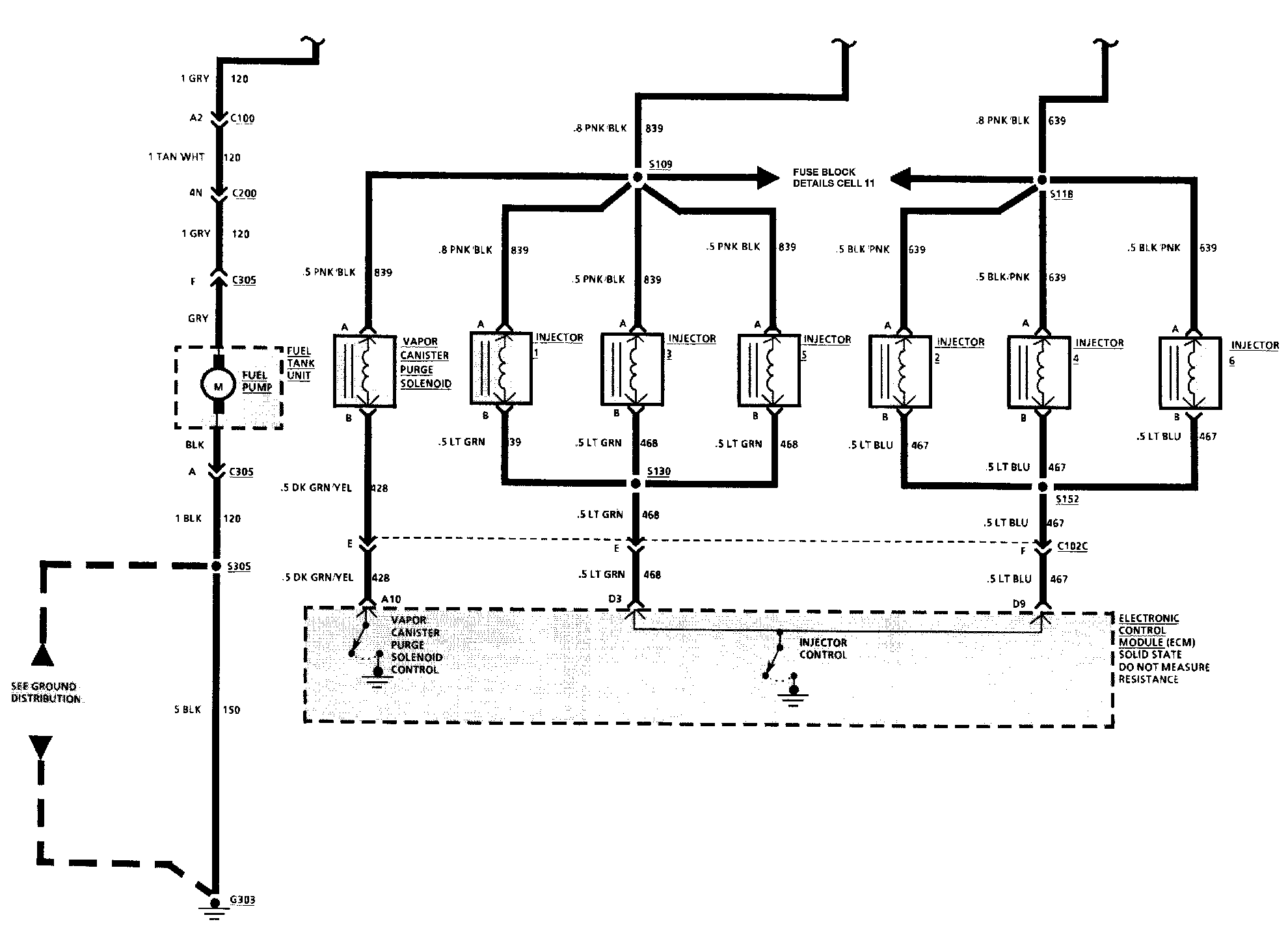

Fuel Injectors and Fuel Control:

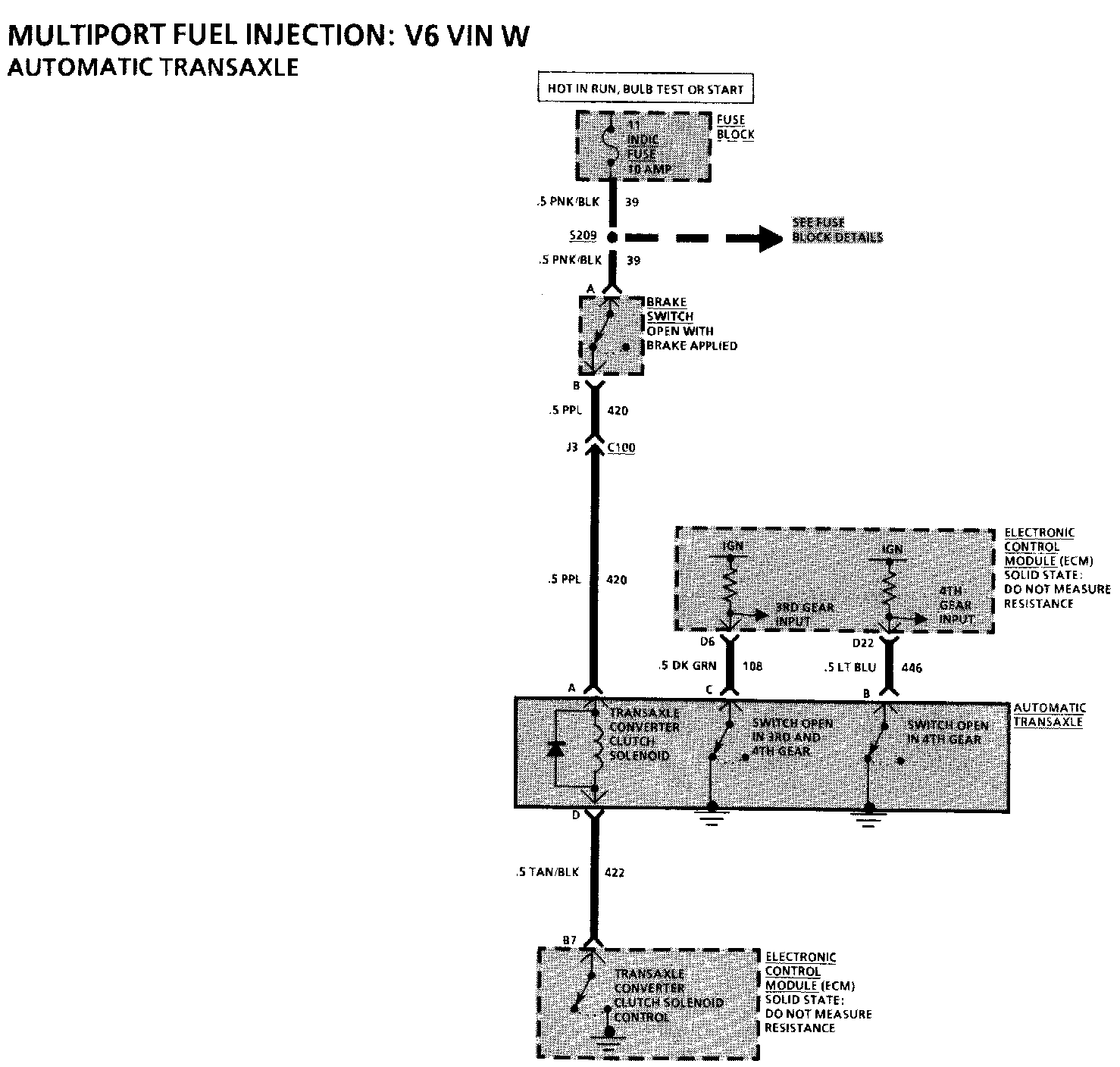

Automatic Transaxle:

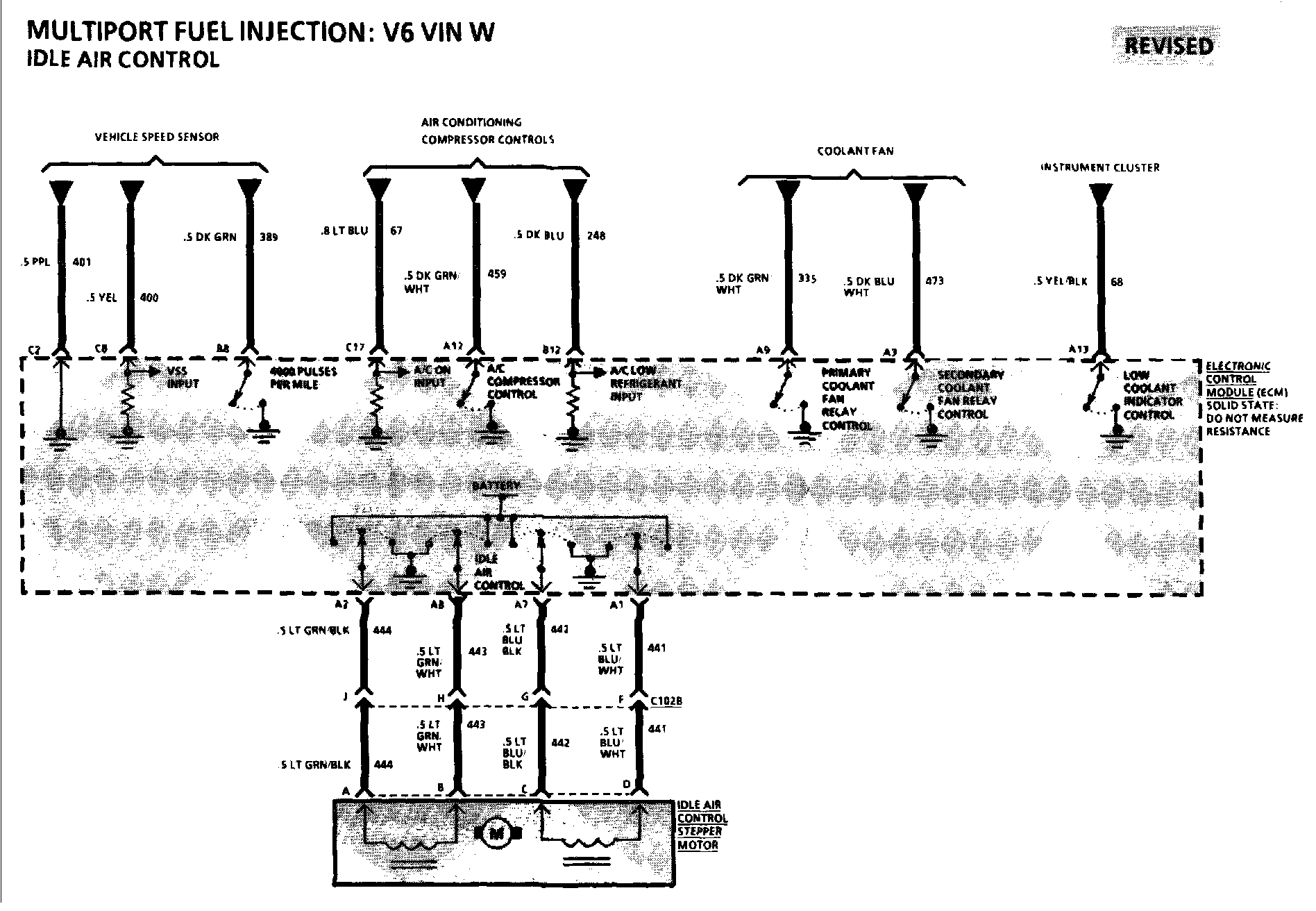

Idle Air Control:
