Tools - Inner Hub Seal Installer Improperly Labeled

9218oldsmobile05

NUMBER: 91-T-86

CORP.REF.NO: 133301R

DATE: March 1991

SECTION: 3C


SUBJECT:
SERVICE MANUAL UPDATE - FRONT SUSPENSION - INNER HUB SEAL INSTALLER ILLUSTRATION LABELED WITH CORRECT TOOL NUMBER

MODELS/YEARS:
1991 CUTLASS CALAIS





The 1991 Cutlass Calais Service Manual improperly labels the Inner Hub Seal Installer. The correct tool number is J 34658.

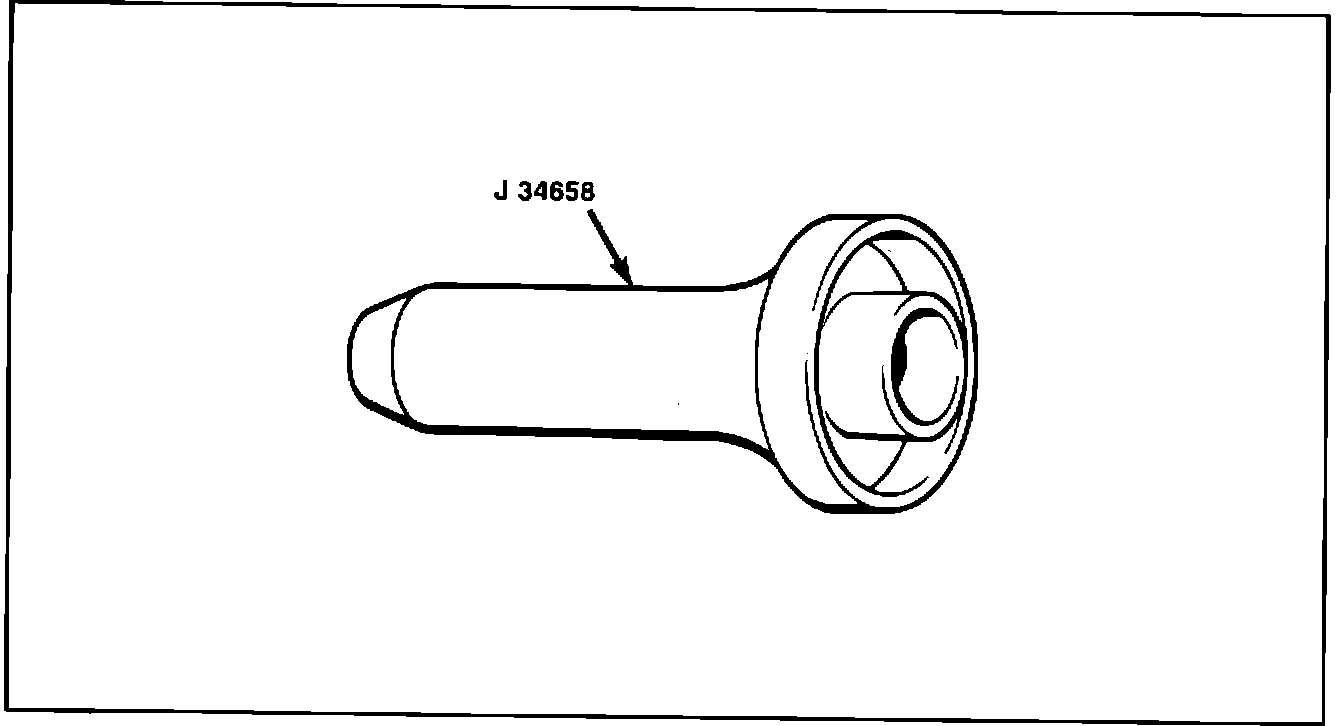

The illustration, showing tool # J 34658 replaces the illustration in the current manual. Reference to the tool number must also be corrected on pages 3C-8, 3C-10, and 3C-16 (figure 21).

Please correct your copy(s) of the 1991 Cutlass Calais Service Manual
