Antilock Brakes / Traction Control Systems
>>

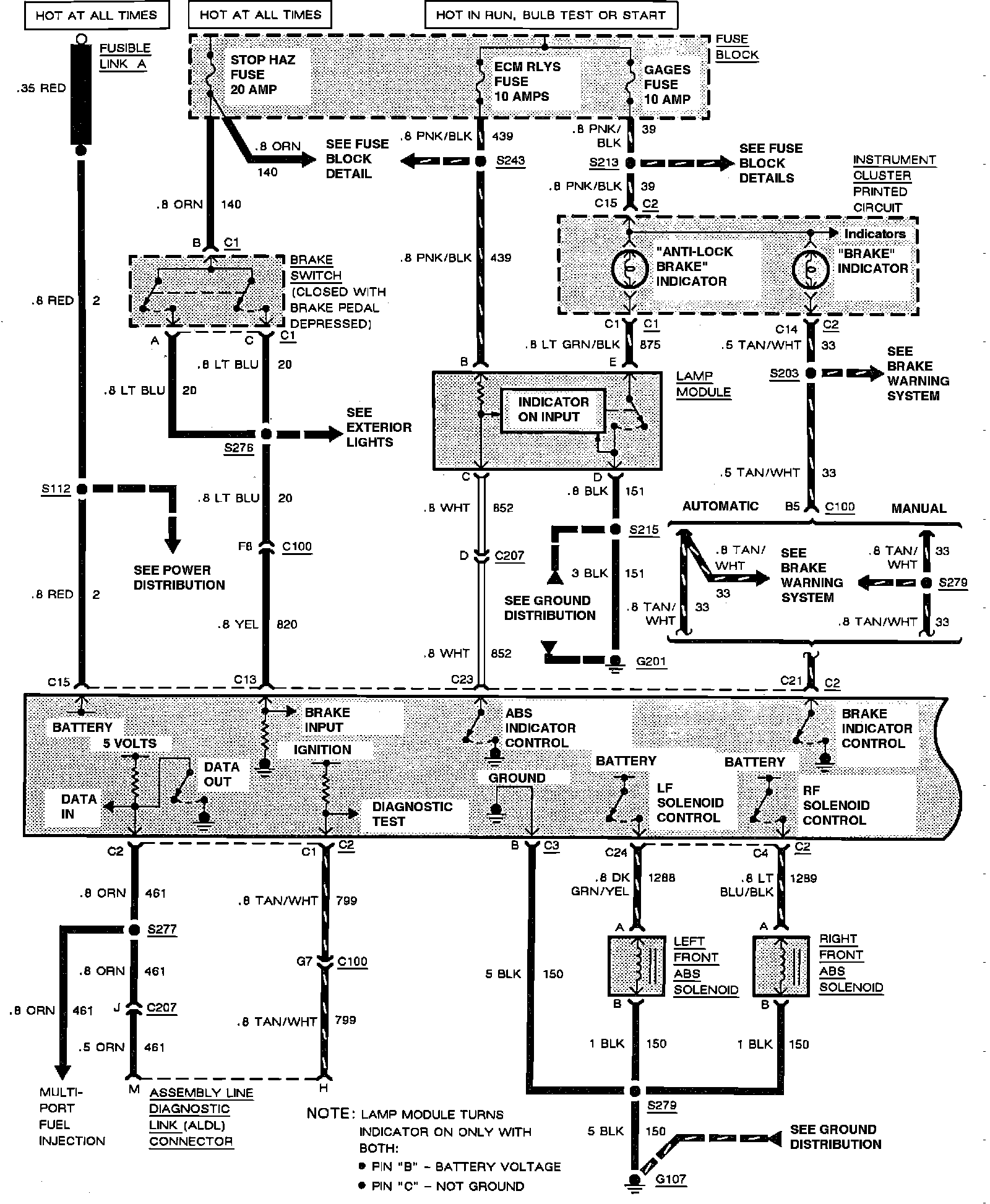

System Diagram
System Diagram
Anti-Lock Brakes:
Anti-Lock Brakes:
