Oldsmobile
>>
1991
>>
Calais V6-3300 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Power & Grounds
Power & Grounds

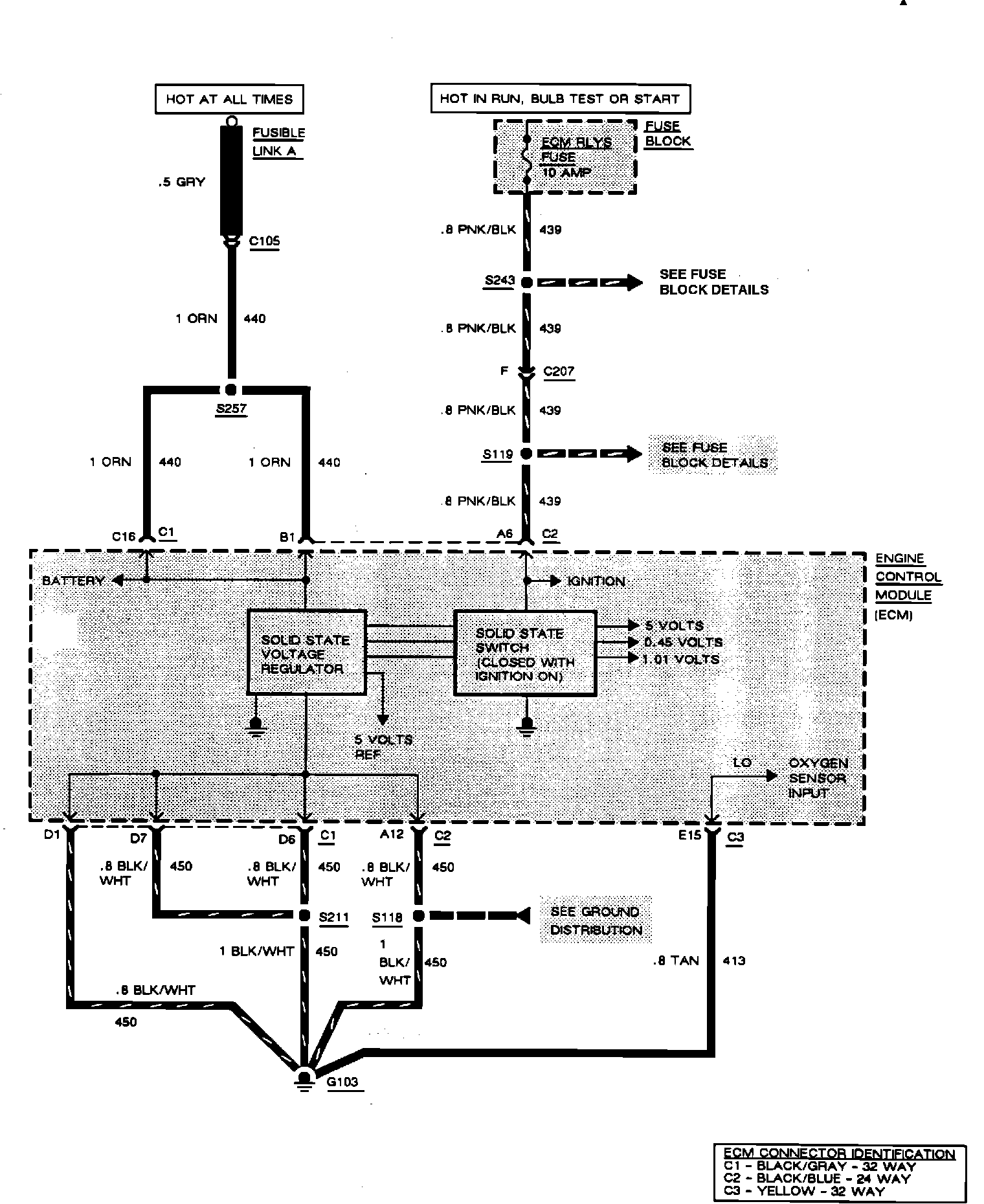

Multi-Port Fuel Injection, Power And Grounds:
