Calais V6-3300 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
ECM Relay Fuse
ECM Relay Fuse

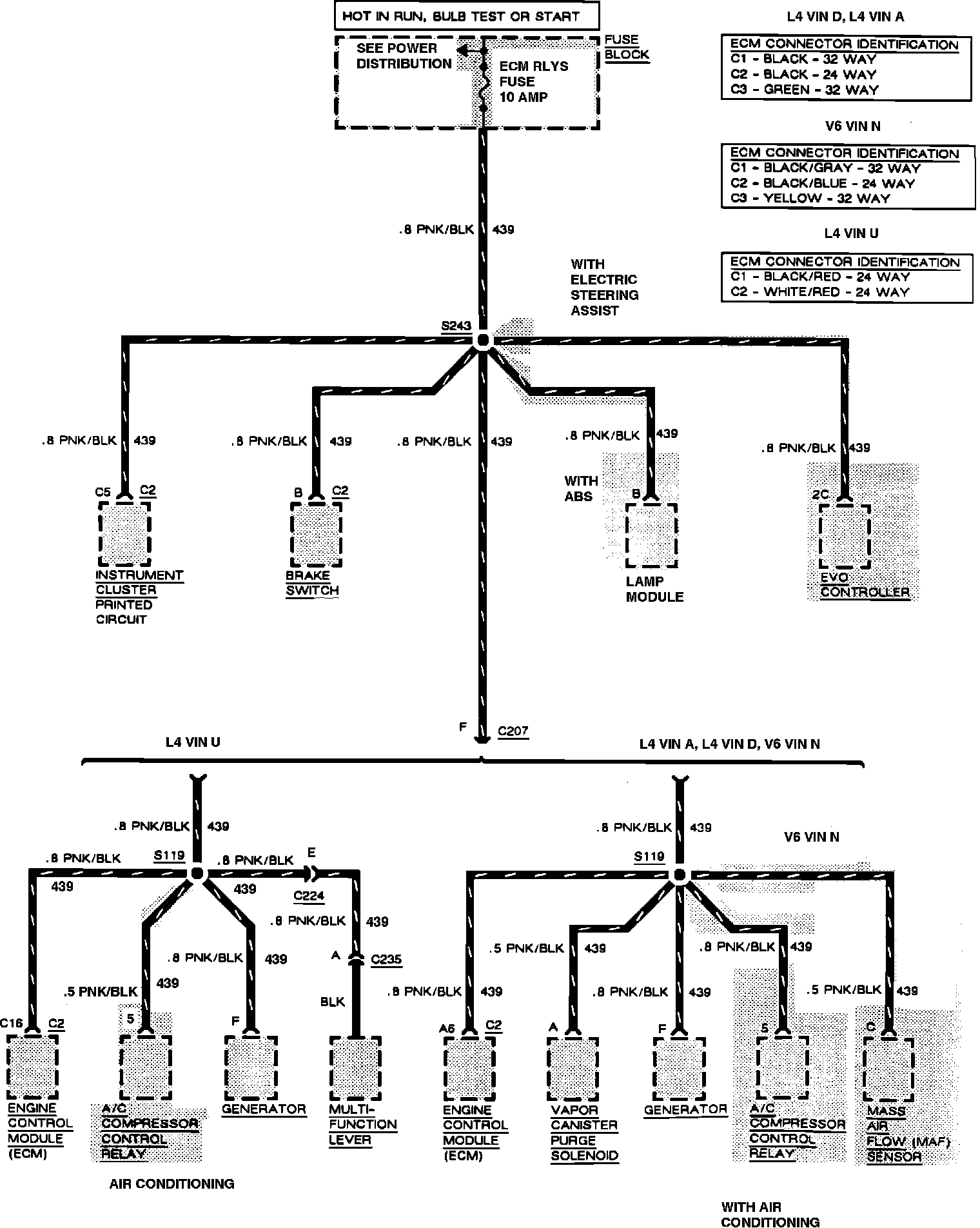

Fuse Block Details (ECM RLYS Fuse):
