Electrical Diagrams

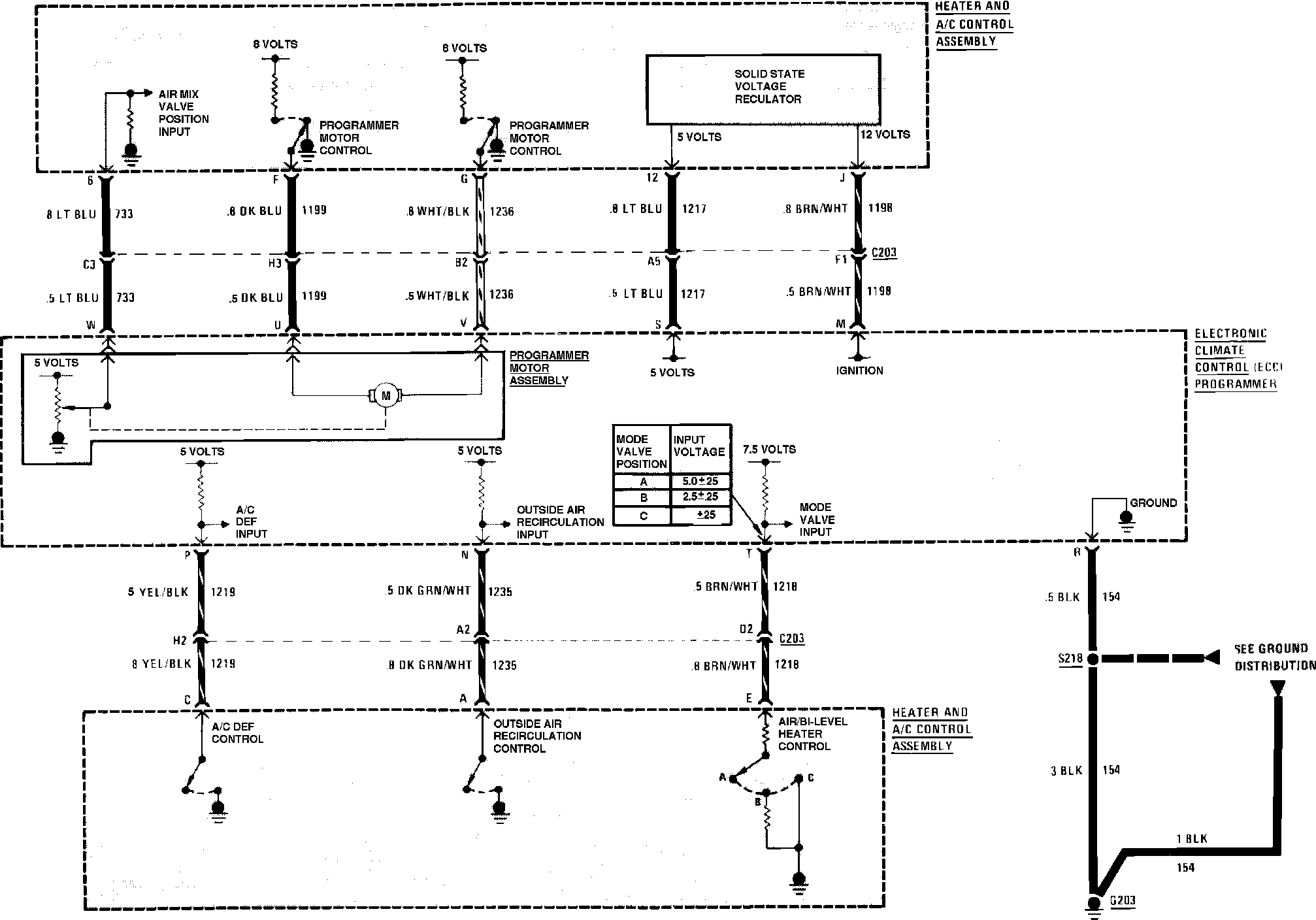

Air Delivery & Temperature Control:

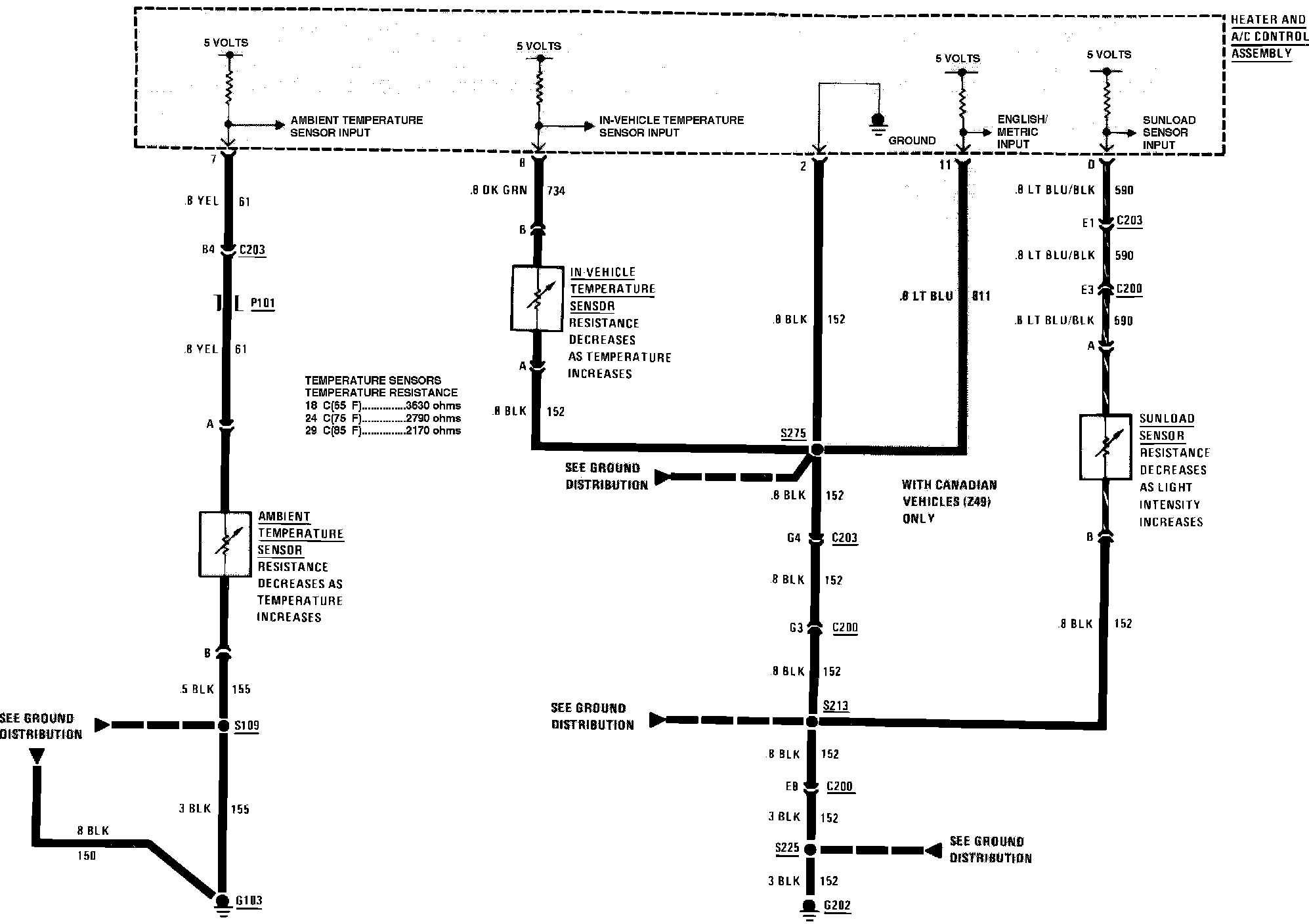

Air Delivery & Temperature Control:

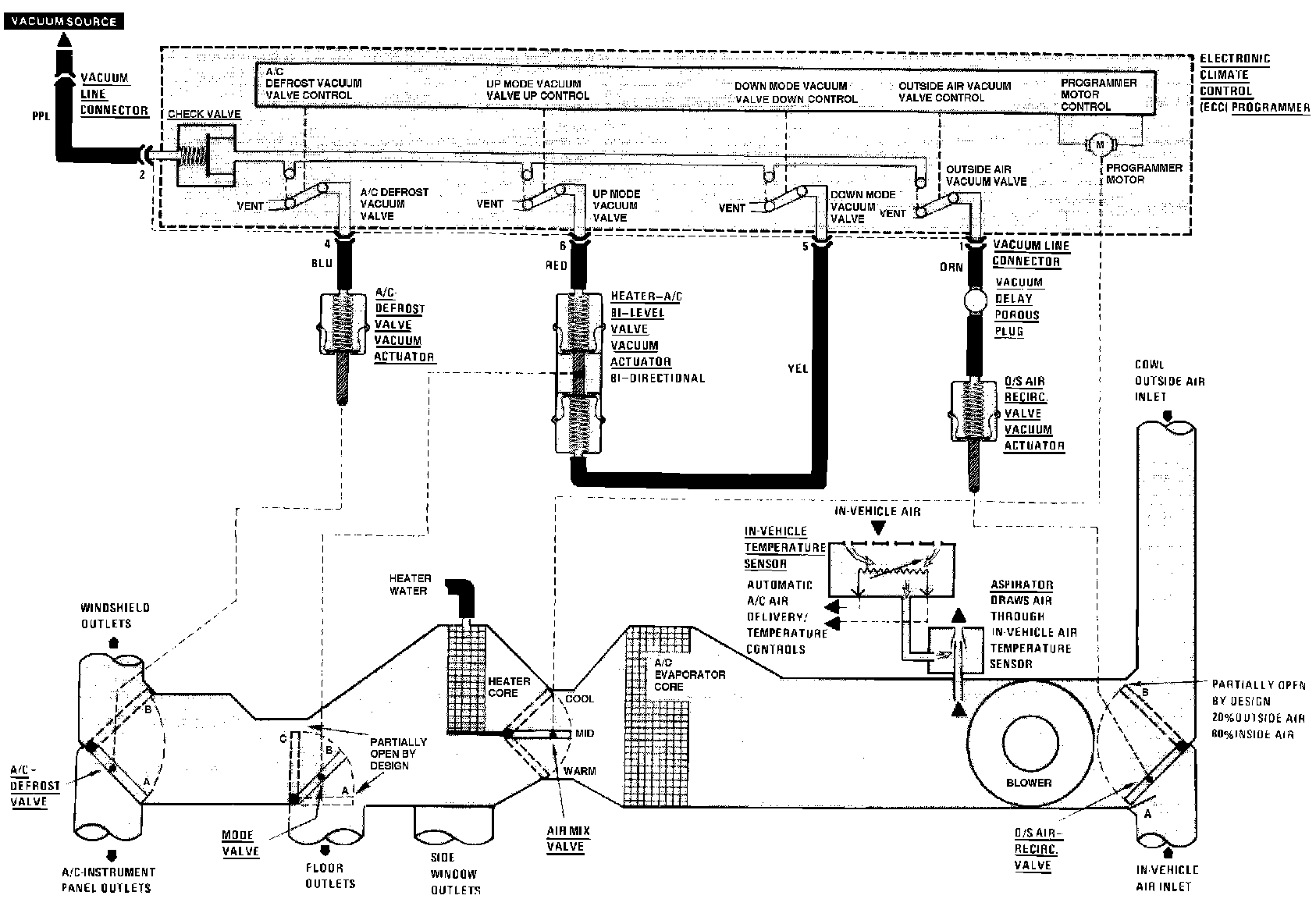

Air Delivery & Temperature Control:
