Manual Window

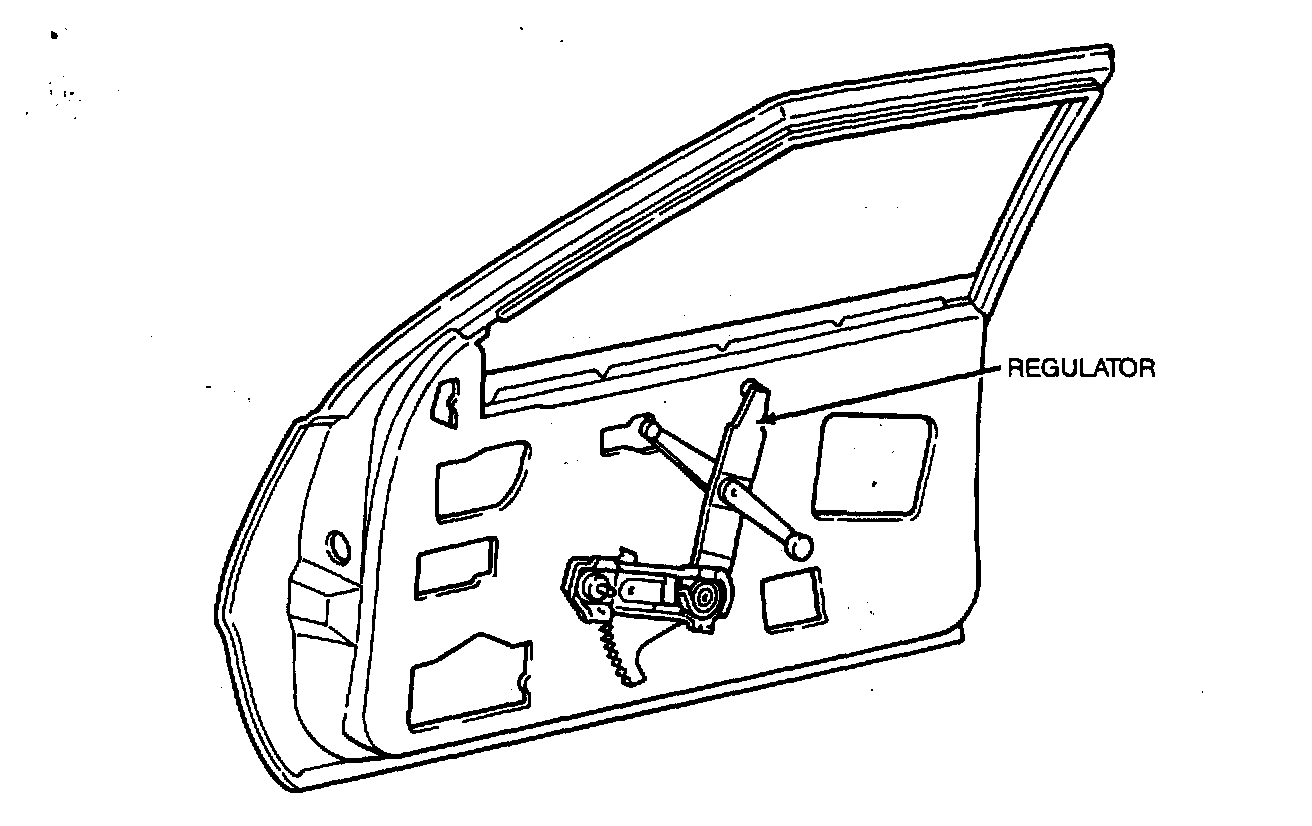

Regulator - Front Door (Manual):

Tape Regulator - Front Door (Manual):

Remove or Disconnect

1. Trim panel and water deflector.
2. Safety belt retractor.
3. Any items that may be blocking access hole as necessary.

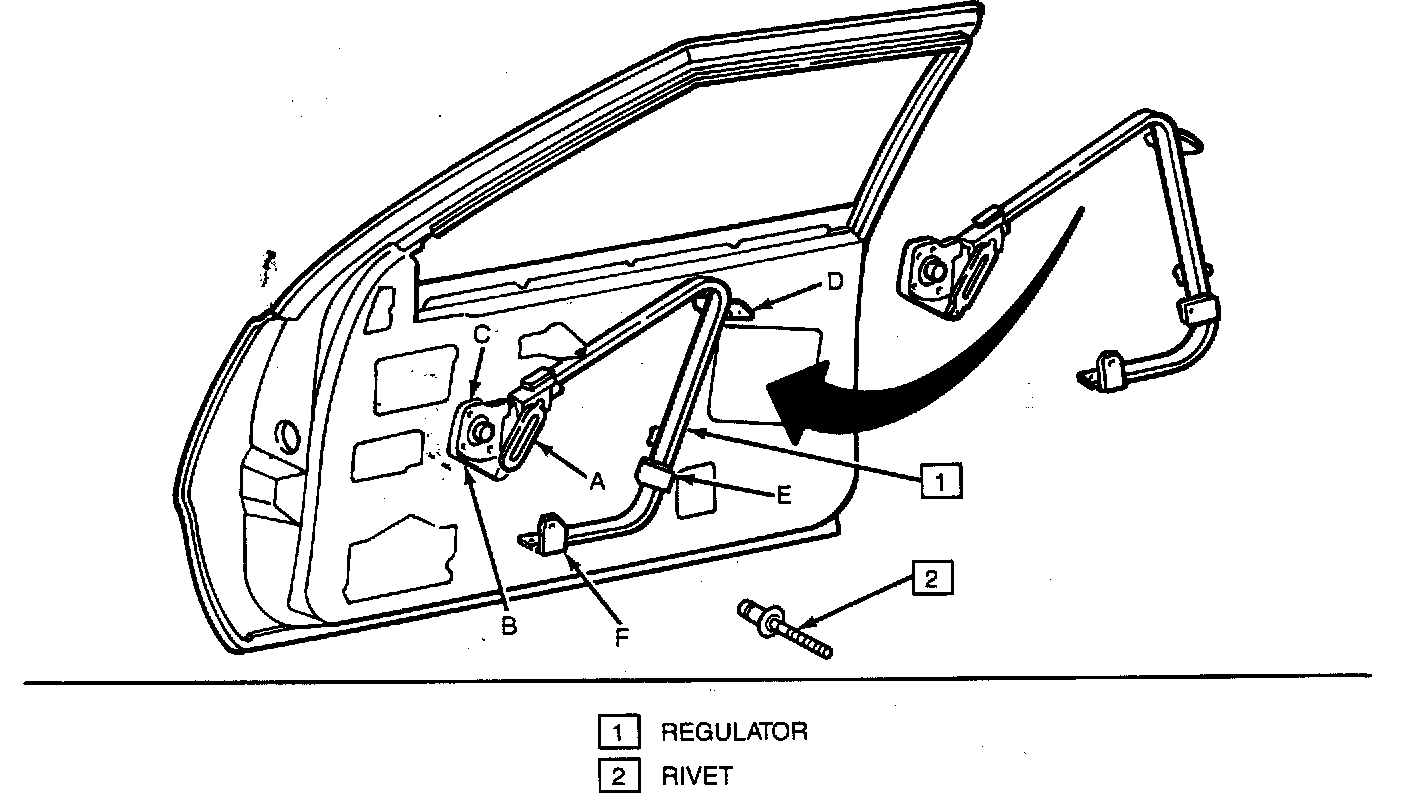

4. Regulator-to-door inner, panel rivets using a 1/4" drill bit.
5. Block or tape window in the fully up position.
6. Regulator guide and block assembly from lower sash by rotating regulator rearward 180 degrees.
7. Regulator through access hole.

Install or Connect

1. Position regulator to door through access hole.
2. Guide and block assembly to sash channel.
3. Regulator to door using 1/4" peel-type rivets following attaching sequence.
4. Tape and check for proper window operation.
5. Trim panel and water deflector.
6. Safety belt retractor.
