Inner Pivot Bushing

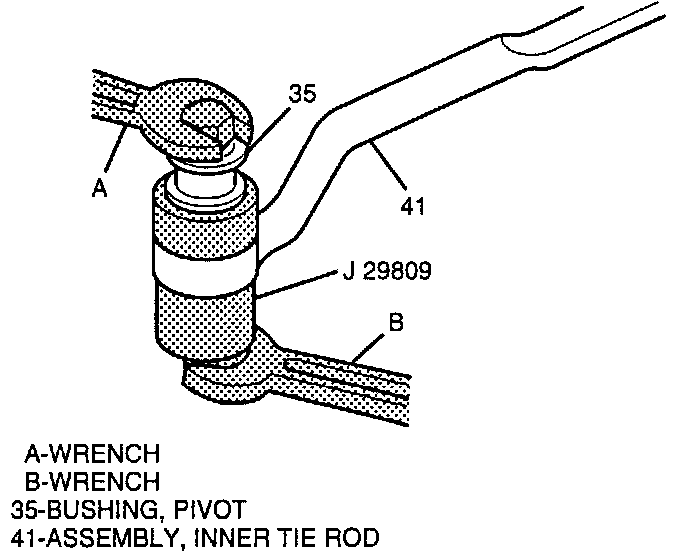

Inner Pivot Bushing Removal:

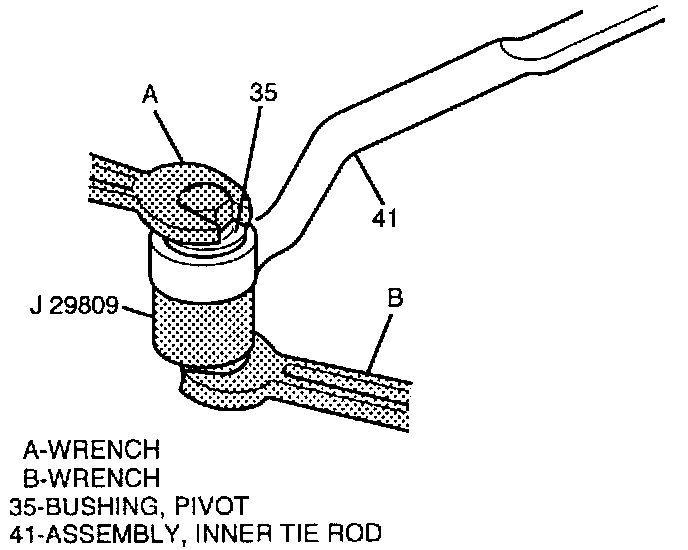

Inner Pivot Bushing Replacement:

Tool Required:
J 29809 Bushing Remover and Installer

Remove or Disconnect

1. Inner tie rod,

Disassemble
1. Inner pivot bushing (35) from inner tie rod (26) or (41) using J 29809.

Assemble
1. Coat inner pivot bushing (35) lightly with grease for ease of installation.
2. Inner pivot bushing (35) into inner tie rod (26) or (41) using J 29809.

Install or Connect

1. enter housing cover washer (23) fitted into rack and pinion boot (22).
2. Inner tie rod bolts (37) through holes in bolt support plate (36), inner pivot bushing (35) which is part of inner tie rod (26) or (41), center housing cover washer (23) captured in recesses in rack and pinion boot (22), insert into rack guide assembly, inside the rack and pinion boot (22) and into threaded hole in rod and rack assembly.

Tighten
^ Inner tie rod bolts (37) to 90 N.m (65 lb. ft.).

3. New lock plate (38) with notches in the proper position over flats of inner tie rod bolts (37).
