Home >> Oldsmobile >> 1995 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Components >> Switches >> A/C Low Pressure Switch

A/C Low Pressure Switch

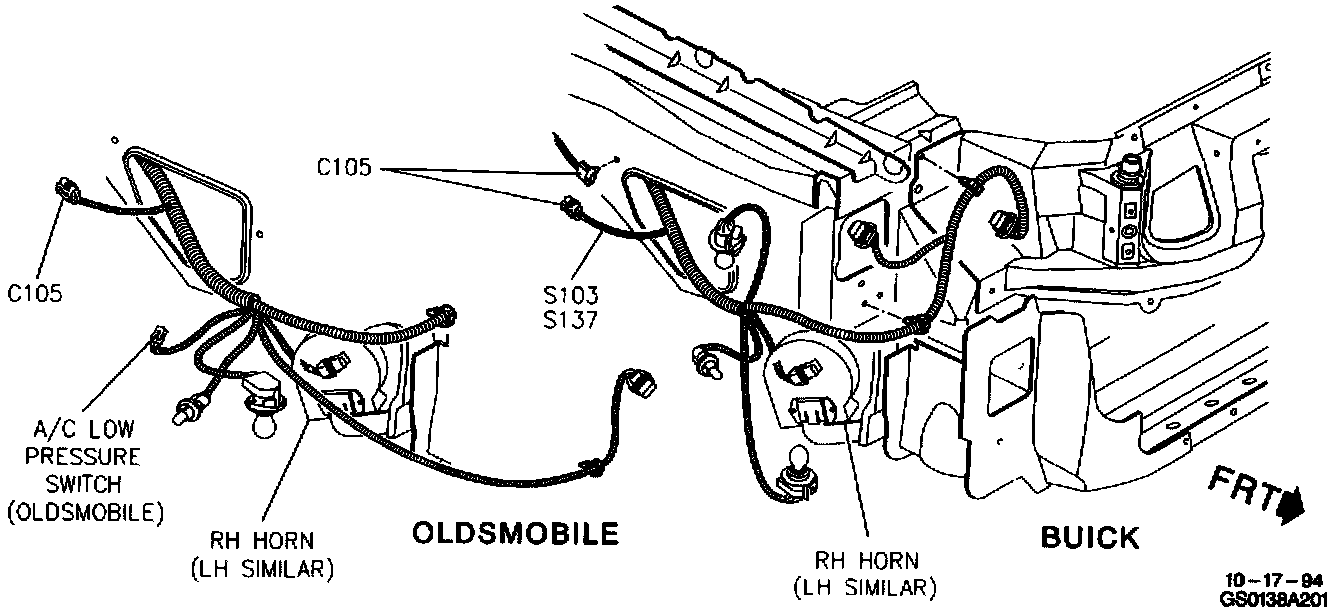

Front Of Engine Compartment, RH Side, Lamp Connectors:
