Generator Replacement

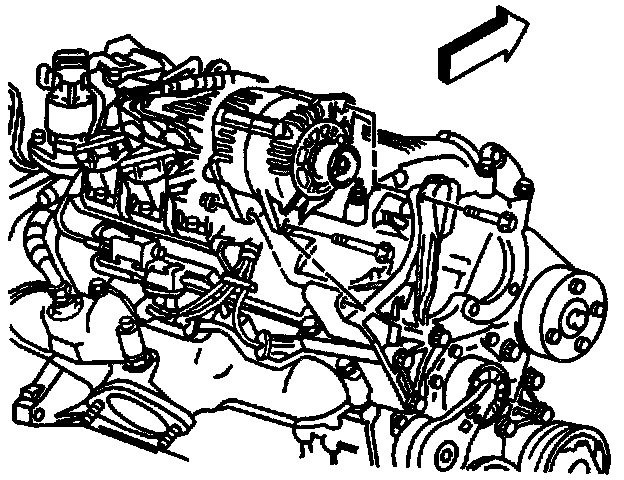

Generator 3100 L82:

IMPORTANT
^ The CS130 generator is serviced as a complete unit only.

REMOVE OR DISCONNECT
CAUTION: Refer to "Caution".
1. Battery negative cable.
2. Accessory drive belt from generator.
3. Bolts/screws from generator.
4. Stud from generator.
5. Electrical connector from generator.
6. Loosen generator front and rear braces from intake manifold.
7. Nut and battery positive lead from generator output "BAT" terminal.
8. Generator.

INSTALL OR CONNECT

Refer to Service Precautions.

Important
^ Make sure tightening fasteners does not bind generator.

1. Position generator to bracket.
2. Battery positive lead and nut to generator output "BAT" terminal.
Tighten
^ Nut to 20 N.m (15 lb. ft.).
3. Hand start generator front and rear brace nuts to intake manifold.
4. Electrical connector to generator. Connector will snap in place when correctly installed.
5. Hand start generator rear brace bolt/screw to generator.
6. Generator to generator mounting bracket bolt/screws.
Tighten
^ Bolt/screws to 50 N.m (37 lb. ft.).
7. Generator front and rear brace to intake manifold nuts.
Tighten
8. Generator rear brace bolt/screw to generator.
Tighten
^ Bolt/screw to 25 N.m (18 lb. ft.).
9. Accessory drive belt to generator.
10. Battery negative cable.
