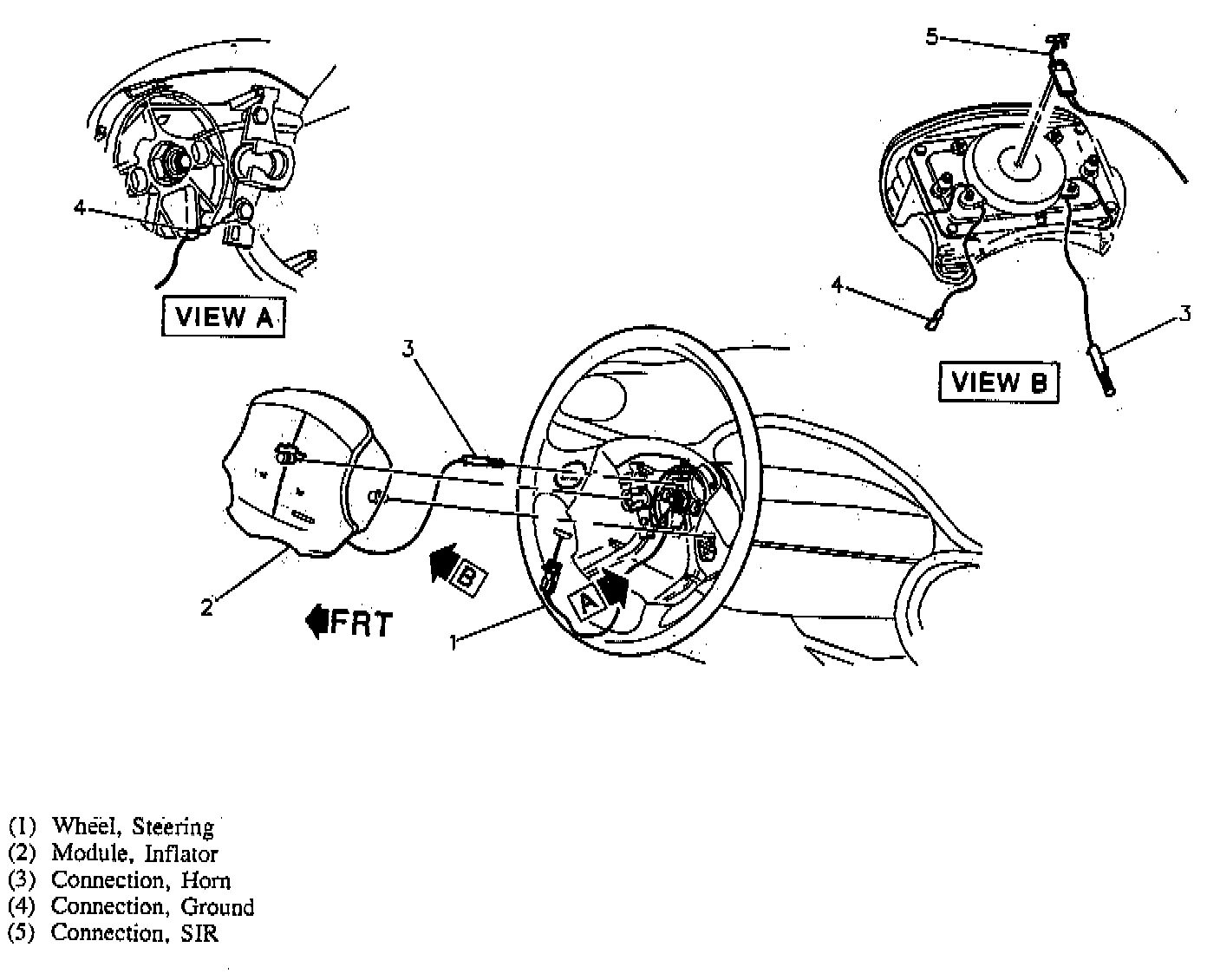

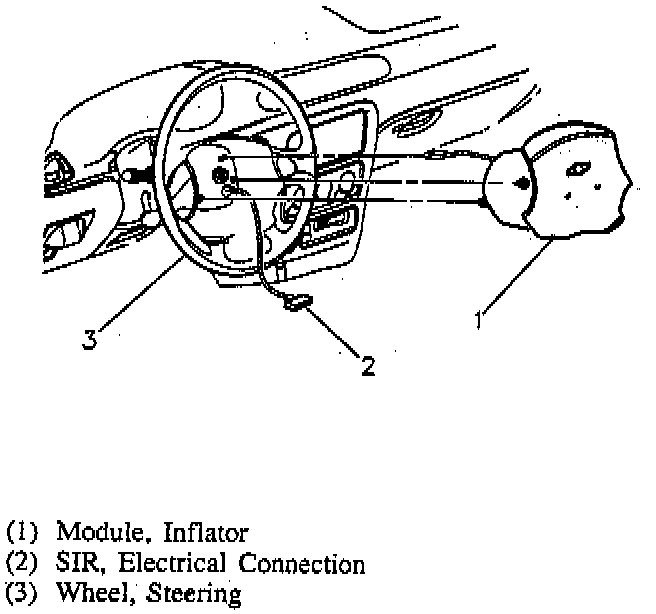

Inflator Module - Replacement

Inflator Module:

Remove or Disconnect
1. Disable the SIR system.
2. Two screws from the back of the steering wheel using a hex-head driver (or equivalent).
3. Connector Position Assurance (CPA) and electrical connection from rear of inflator module.
4. Inflator module.

Install or Connect
1. Electrical connection and CPA to rear of inflator module.
2. Inflator module to steering wheel and four screws through back of steering wheel.

Tighten
- Screws to 10 N.m (89 lb in).

3. Enable the SIR system.
