Interior Lights B+ Output, Theater Dimming 1 Output

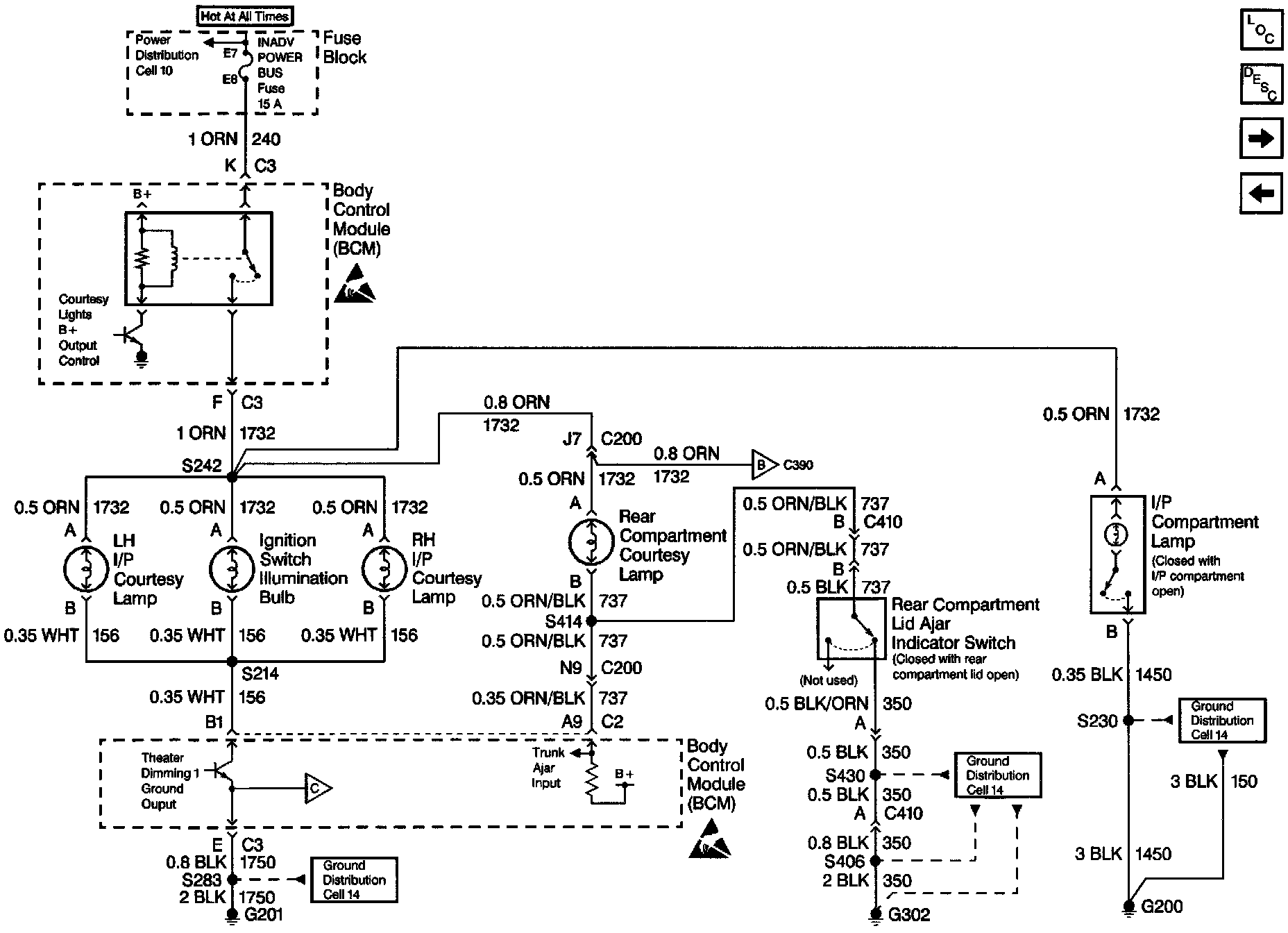

Interior Lights B+ Output, Theater Dimming 1 Output, Trunk Ajar Input:
