Splash Shield

REMOVAL PROCEDURE
Tools Required
J38778 Door Trim Pad and Garnish Clip Remover

Splash Shield Replacement: Rear Bumper Fascia - Removal Procedure:

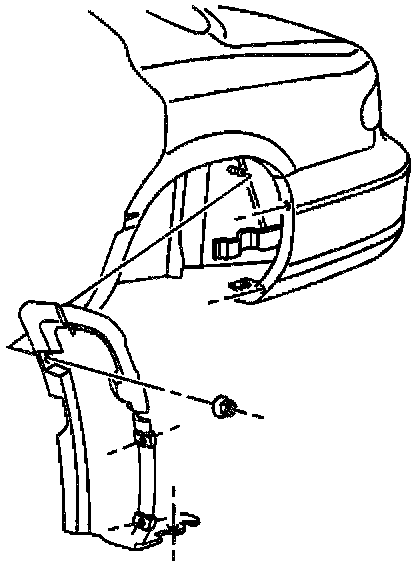

1. Remove the rear bumper fascia splash shield nut.

Splash Shield Replacement: Rear Bumper Fascia - Removal Procedure:

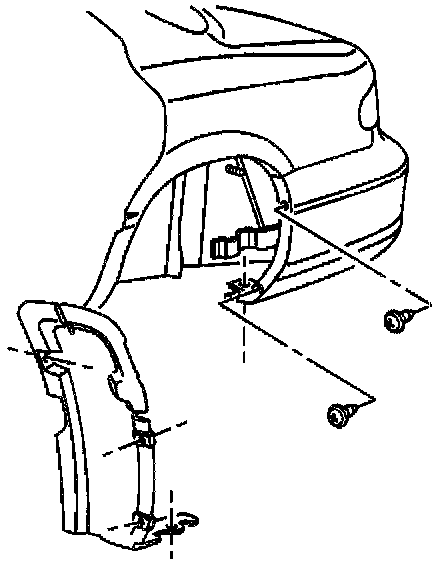

2. Remove the rear bumper fascia splash shield bolts.

Splash Shield Replacement: Rear Bumper Fascia - Removal Procedure:

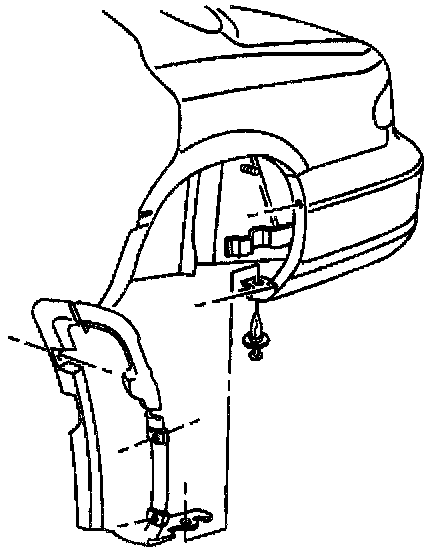

3. Remove the rear bumper fascia retainer using J38778.

Splash Shield Replacement: Rear Bumper Fascia - Removal Procedure:

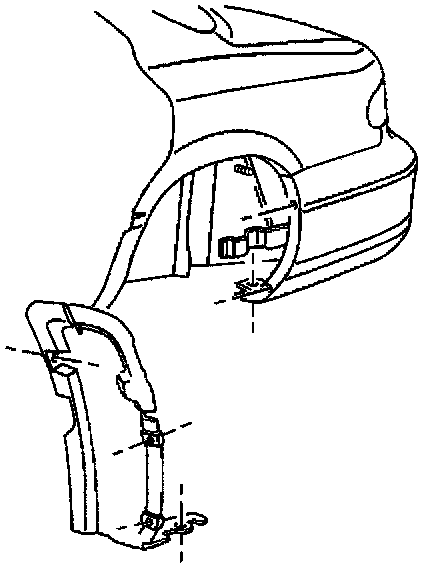

4. Remove the rear bumper fascia splash shield.

INSTALLATION PROCEDURE

Splash Shield Replacement: Rear Bumper Fascia - Installation Procedure:

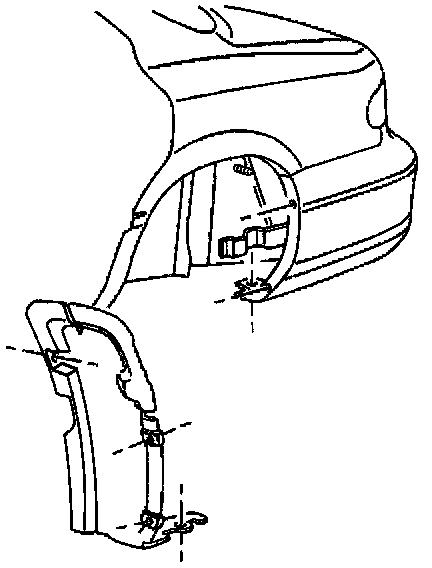

1. Install the rear bumper fascia splash shield to the wheel opening.

Splash Shield Replacement: Rear Bumper Fascia - Installation Procedure:

2. Install the rear bumper fascia retainer.

Splash Shield Replacement: Rear Bumper Fascia - Installation Procedure:

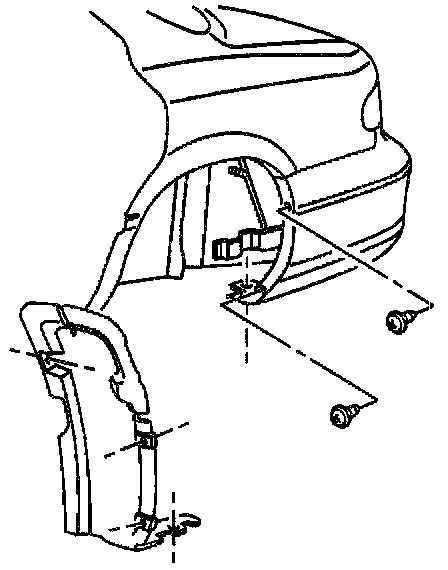

3. Install the rear bumper fascia splash shield bolts.

Tighten
Tighten the rear bumper fascia splash shield bolts to 2 N.m (18 lb in).

Splash Shield Replacement: Rear Bumper Fascia - Installation Procedure:

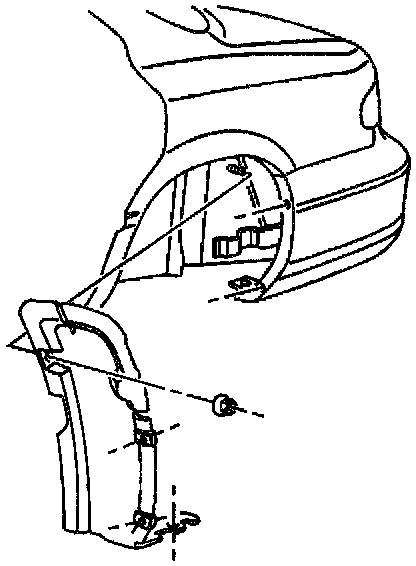

4. Install the rear bumper fascia splash shield nut.

Tighten
Tighten the rear bumper fascia splash shield nut to 2 N.m (18 lb in).
