Transmission Pressure Test Port: Service and Repair

REMOVAL PROCEDURE





1. Remove the throttle body air inlet duct.

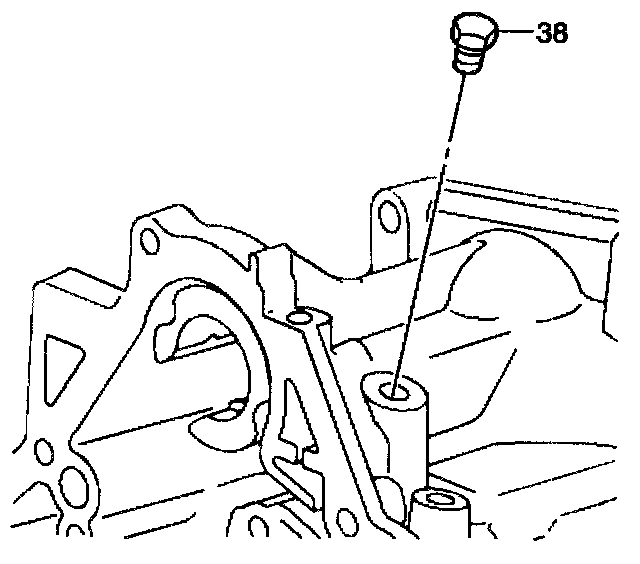

2. Remove the pressure test hole plug (38).

INSTALLATION PROCEDURE





1. Install the pressure test hole plug (38).
^ Tighten the pressure test hole plug (38) to 12 Nm (106 inch lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the throttle body air inlet duct.
