With EGR

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the negative battery cable from the battery.

CAUTION: Refer to Vehicle Lifting Caution in Service Precautions.

2. Hoist the vehicle.
3. Disconnect the KS wiring harness electrical connector from the knock sensor.

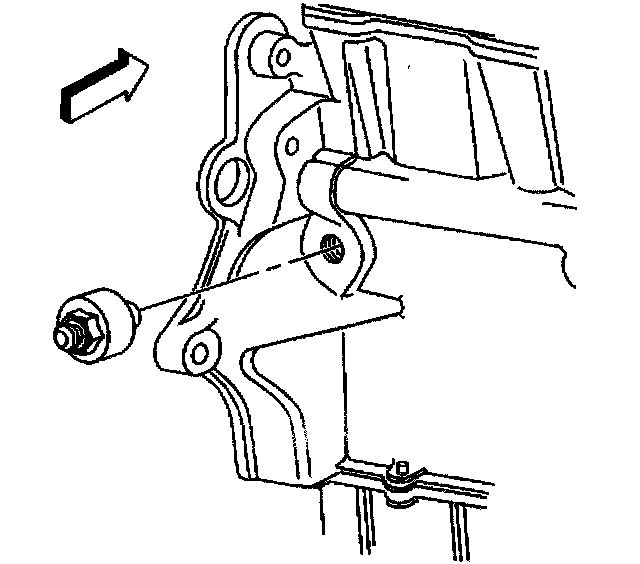

4. Remove the knock sensor (1) from the engine block.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

1. Clean the threads thoroughly. Install the knock sensor (1) into the engine block.

Tighten
Tighten the knock sensor to 19 N.m (170 lb in).

2. Connect the KS wiring harness electrical connector to the knock sensor.
3. Lower the vehicle.
4. Connect the negative battery cable to the battery.
