Home >> Oldsmobile >> 1999 >> Cutlass V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> System Diagram >> Power Windows - Front Doors

Power Windows - Front Doors

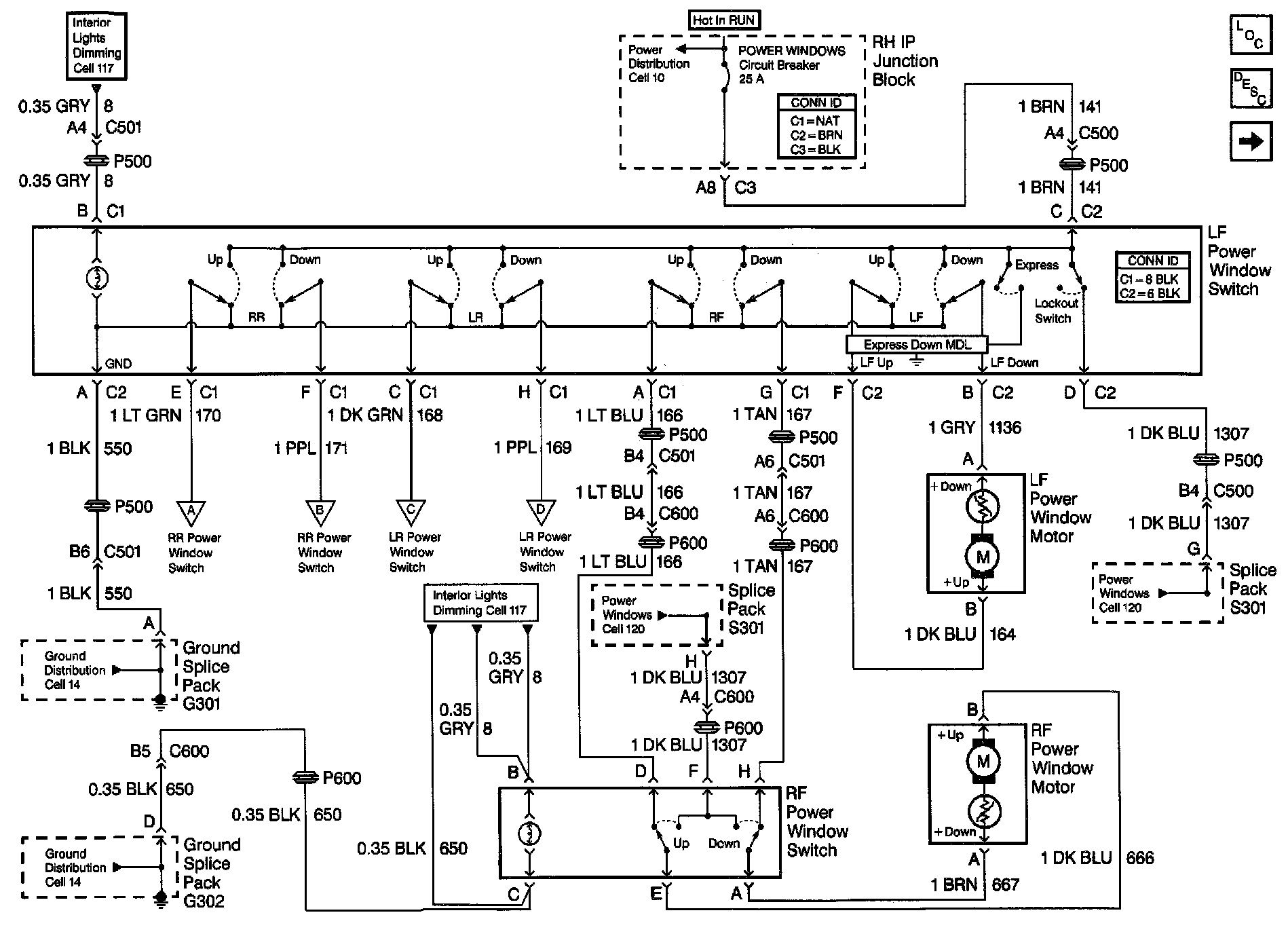

Power Window Schematics: Power Windows, Front:
