Operation CHARM: Car repair manuals for everyone.
Home >> Oldsmobile >> 1999 >> Cutlass V6-3.1L VIN J >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Underhood Junction Block

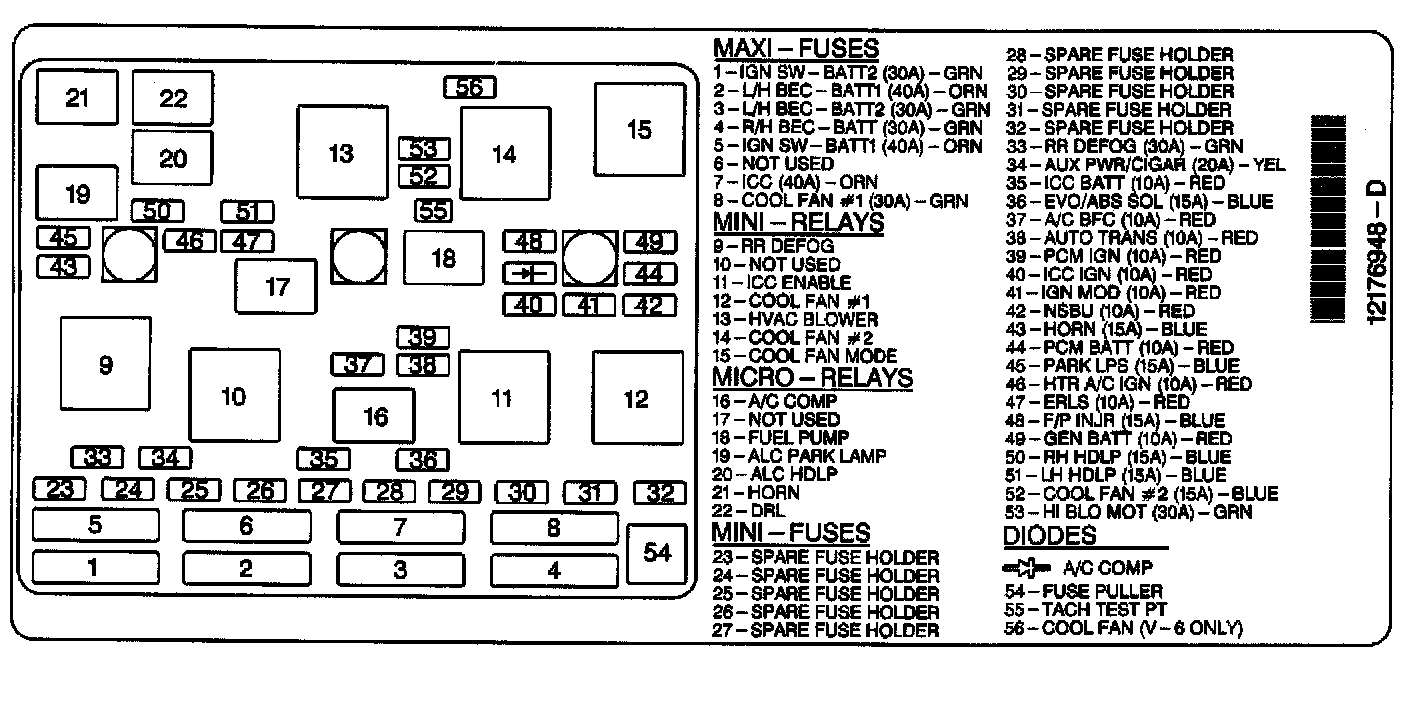

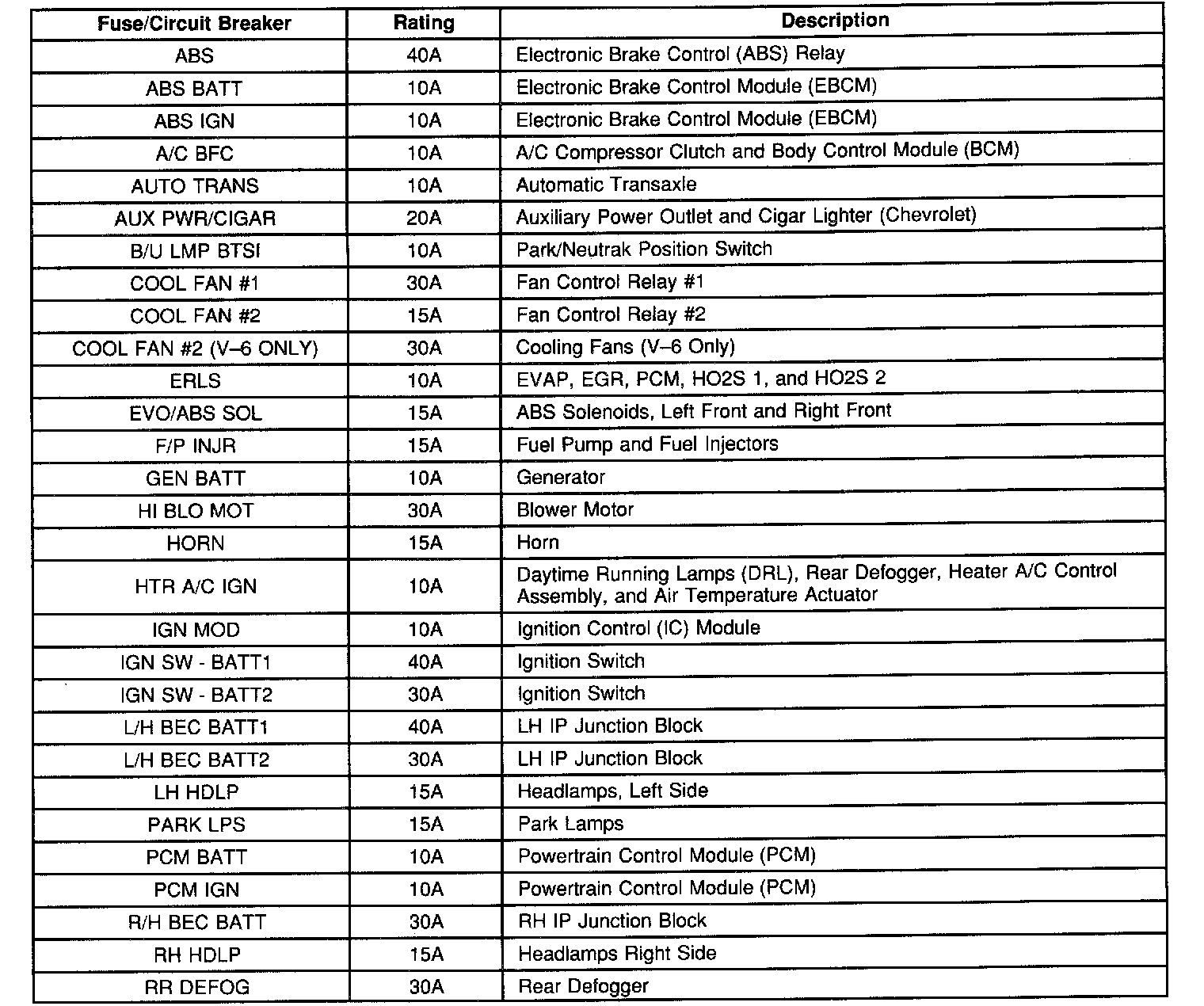

Underhood Junction Block

Underhood Junction Block:



Underhood Junction Block:
