Fluid Pan: Service and Repair

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Loosen the oil pan bolts.
3. Drain the oil.
4. Remove the oil pan attaching bolts.

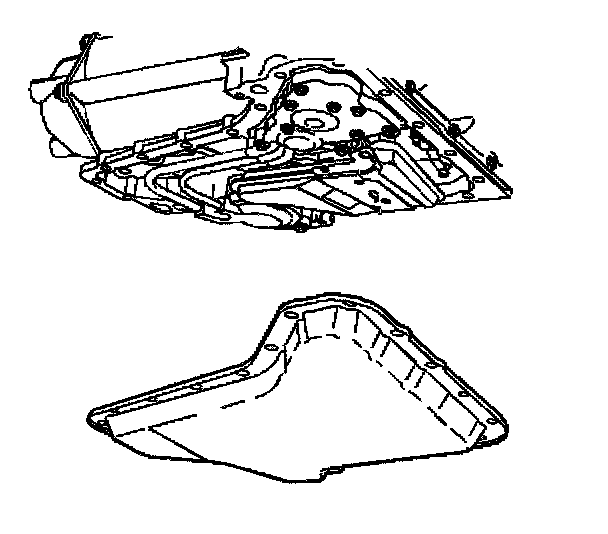

5. Remove the oil pan.

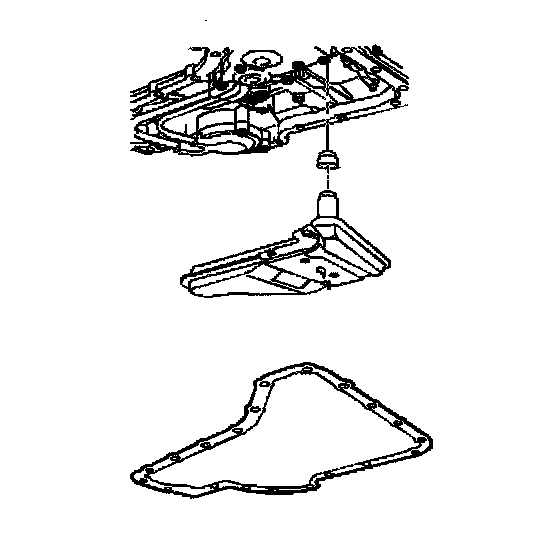

6. Remove the oil pan gasket.

Installation Procedure

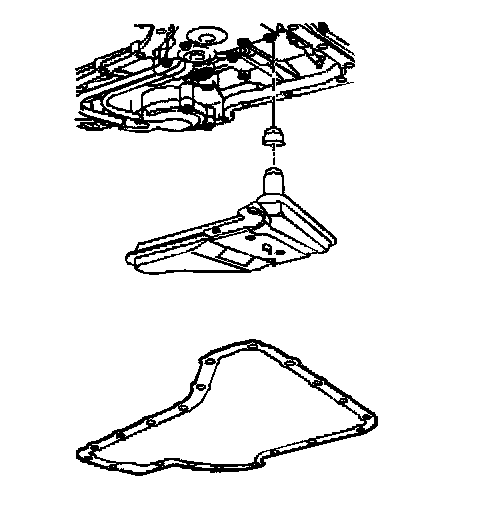

1. Install the oil pan gasket. If the sealing ribs are damaged, use a new gasket.





2. Install the oil pan.

Notice: Refer to Fastener Notice in Service Precautions.

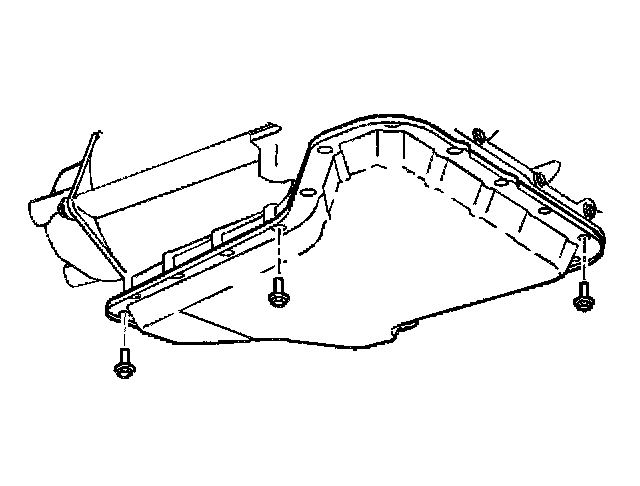

3. Install the oil pan attaching bolts.
Tighten the oil pan bolts to 14 Nm (124 inch lbs.).
4. Lower the vehicle.
5. Refill the transmission to the proper level with DEXRON(R) oil. Refer to Fluid Capacity Specifications.
6. Check the transmission fluid level. Refer to Transmission Fluid Checking Procedure.
7. Inspect the oil pan gasket for leaks.
