Home >> Oldsmobile >> 1999 >> LSS V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Locations >> Splice Locations >> S400 - S499 >> S409

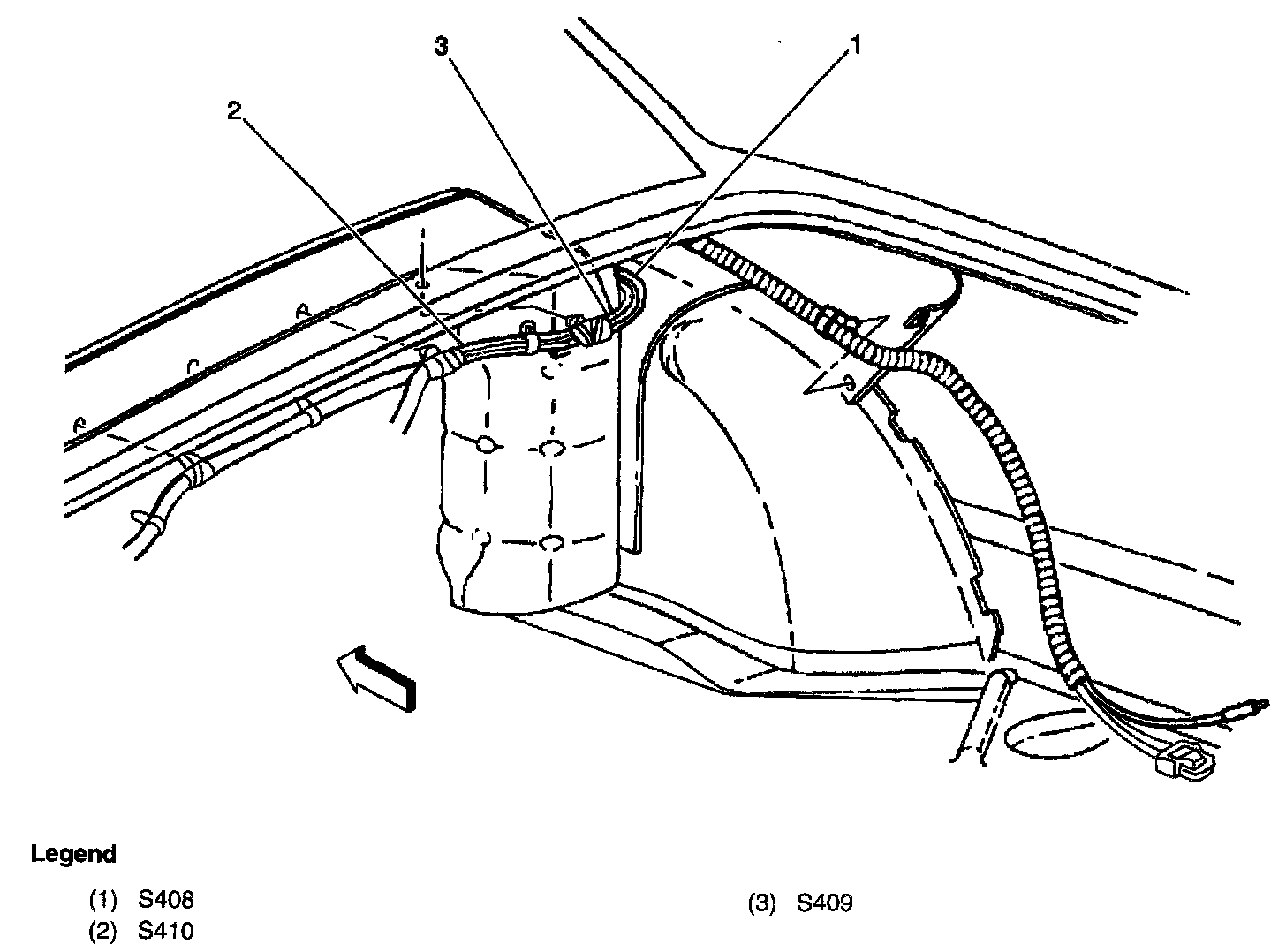

S409

Rear Compartment, In The Right Front Corner:





In the body harness, approximately 17 cm (6.7 in) from P400
