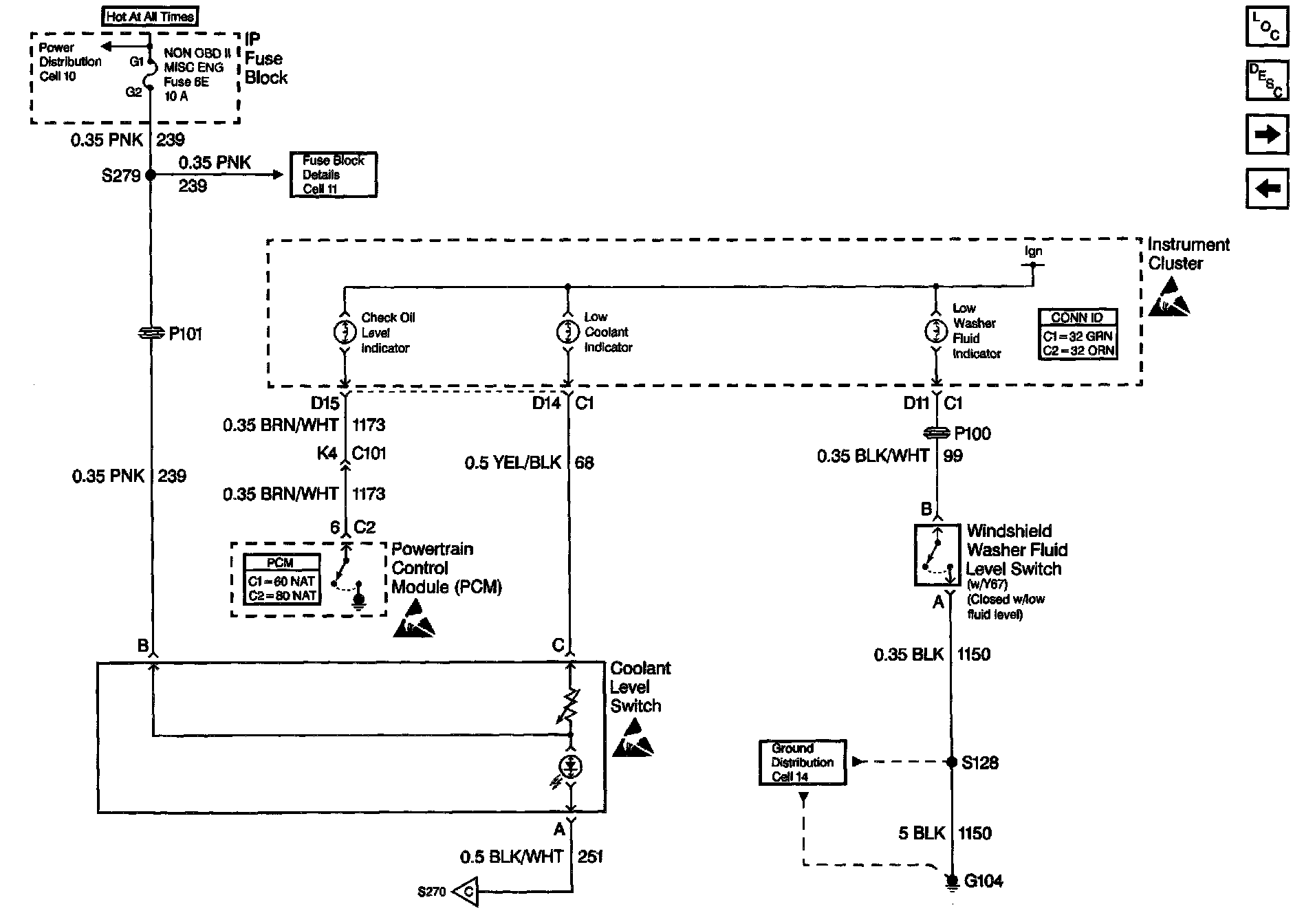

Powertrain Control Module (PCM)

Instrument Cluster: Analog Schematics (Oldsmobile): Powertrain Control Module (PCM):
